Hello!

In this case, it could be two possible options as to why it happens:

1. It can happen if the schema has a more fresh ModifiedOn date in configuration, for example, if it was recently modified directly on the environment; if so, the schema won't be updated.

2.  Sometimes, the schema updates only after full compilation. so the steps will be install package -> full compilation -> check the schema.

If the issue would still reproduce, contact us at support@creatio.com.

You should create 2 separate details. And add them to the separate edit page for section A and for section B.

Thanks Antonii, isn't there any other way than creating two details ?

Ismail el lahya,

This is the best way to perform this task

Antonii Viazovskyi,

Thank you!

Hello,

Please be informed that by the system's logic, the details still refer to the same object and even if you create several different details they are still based on the same object and therefore the edit pages will look the same. We already have this problem registered for our R&D department and in future releases this logic may be changed.

Mira Dmitruk,

I know they refer to the same object, are you not able to have the different details enter data slightly different? So if you enter it from one detail the type is set to "revenue" and the other "costs", otherwise id need to have a lookup to do it when it shouldn't be necessary.

Hello Oliver,

To do this (set a different type value based on which detail is being used to add the record), you can set defaultValues in each of the details in the page code. See this article here: https://customerfx.com/article/passing-values-from-a-page-to-a-new-reco…

As far as filtering each detail by the specific type value, you can refer to this article: https://customerfx.com/article/filtering-a-detail-list-in-creatio-forme…

Ryan

Hi Oliver,

You can possibly do it and here is small instruction on how:

1) At first write an example of a code you want to highlight and do it manually using the options above the text. Save the result.

2) Get the value of this field from the database, it should look something like this:

 <div>hello there&nbsp;</div>  <div>&nbsp;</div>  <div>define(&quot;PrcAcceptanceCertificate777ab4cfSection&quot;, [], function() {<br /> &nbsp;&nbsp; &nbsp;return {<br /> &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;entitySchemaName: &quot;PrcAcceptanceCertificate&quot;,<br /> &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;details: /**SCHEMA_DETAILS*/{}/**SCHEMA_DETAILS*/,<br /> &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;diff: /**SCHEMA_DIFF*/[]/**SCHEMA_DIFF*/,<br /> &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;methods: {}<br /> &nbsp;&nbsp; &nbsp;};<br /> });<br /> &nbsp;</div>  <div>&nbsp;</div>

3) In this value take a look at how the system applies styles, you need to do it automatically in your method.

4) Write a method that will apply needed highlights to your text.

var text = this.get("Notes");

text.DoSomethingToModifyIt();

this.set("Notes", text);

Probably the hardest point would be finding the js code in the whole text because for the system there are no differences between a normal sentence or parts of the code. But if you manage to do it, then applying highlights is not that difficult to do.

Hi,

phew, that sounds like a lot of work.

I was thinking more of a js library that you can just use.

There must already be something integrated in creatio, because there is the source code area. Couldn't we just use that somehow?

Or a component in the editor like here in the community area

Regards,

Oliver

Oliver Herzog,

Slightly misunderstood what are you trying to do.

Can you please specify what source code area you are referring to?

Sorry for the misunderstanding!

I just want c#, js or html to be displayed "nicely" in the richtext editor. In the first post you can see how it should not look like.

No logical check or something like that.

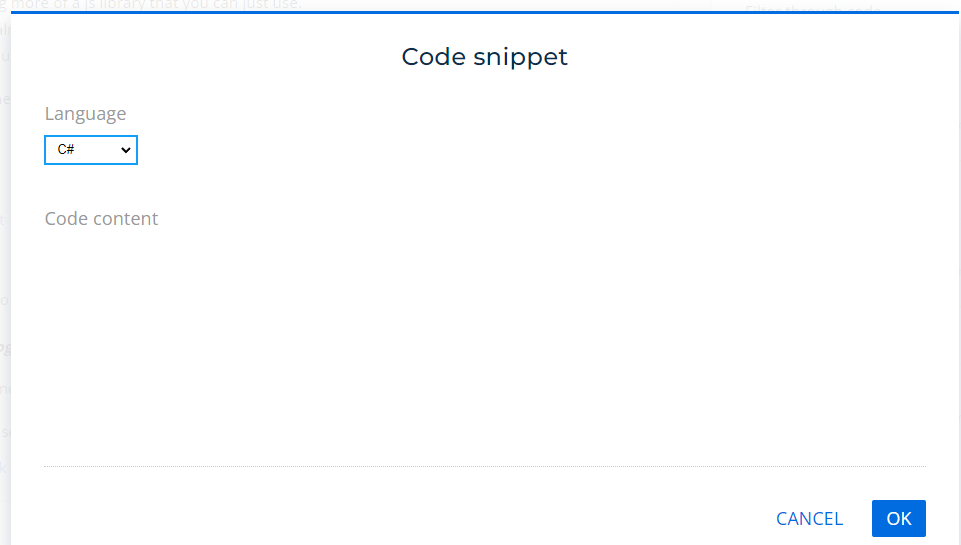

Something like the code snippet function here in the community.

Oliver Herzog,

Unfortunately, right now highlighting the code lines like the "Code snippet" function is impossible on the system itself due to a base logic of RICH_TEXT fields.

I registered your suggestion for our R&D team, thank you for your idea.

Found the answer for this mentioned issue, Please refer to the code below. Using IProcessExecutor, this can be simply achieved in the 8.0 version.

/* The custom namespace. */

namespace Terrasoft.Configuration.WSO2WSConfirmationServiceNamespace

{

    using System;

    using System.ServiceModel;

    using System.Collections.Generic;

    using System.ServiceModel.Web;

    using System.ServiceModel.Activation;

    using Terrasoft.Core;

    using Terrasoft.Web.Common;

    using Terrasoft.Core.Entities;

    using Terrasoft.Core.Entities.Events;

    using Terrasoft.Core.Process;

    using Terrasoft.Core.Process.Configuration;

    [ServiceContract]

    [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Required)]

    public class WSO2WSConfirmationService : BaseService

    {

        /* The link to the UserConnection instance required to access the database. */

        private SystemUserConnection _systemUserConnection;

        private SystemUserConnection SystemUserConnection

        {

            get

            {

                return _systemUserConnection ?? (_systemUserConnection = (SystemUserConnection)AppConnection.SystemUserConnection);

            }

        }

        /* The method that returns the confirmation of buttons. */

        [OperationContract]

        [WebInvoke(Method = "GET", RequestFormat = WebMessageFormat.Json, BodyStyle = WebMessageBodyStyle.Wrapped,

        ResponseFormat = WebMessageFormat.Json)]

        public string ConfirmationService(string guid, bool status)

        {

            try

            {

                new Guid(guid);

                string result = "Guid is missing";

                if (!string.IsNullOrEmpty(guid))

                {

                    if (status == false)

                    {

                        {

                            // getting  IProcessExecutor

                            IProcessExecutor processExecutor = SystemUserConnection.ProcessEngine.ProcessExecutor;

                            // List of input parameters

                            var inputParameters = new Dictionary<string, string>

                            {

                                ["ConfirmationId"] = guid.ToString(),

                            };

                            //code of the process

                            string processSchemaName = "WSO2Process_3c0d24aCustom1";

                            //execute the process

                            ProcessDescriptor processDescriptor = processExecutor.Execute(processSchemaName, inputParameters);

                            //return processDescriptor;

                        }



                        result = "Response posting is cancelled, You can close this tab";

                    }

                    else

                    {

                        result = "WSO2 endpoint intergration is pending";

                    }

                }

                return result;

            }

            catch (Exception ex)

            {

                return "GUID error - " + ex.Message;

            }



        }

    }

}

Thanks

Hello Luca,

As stated in the Academy article here:

• It is not possible to implement object business logic via event sub-processes in the Object Designer. Use EntityEventListener to work with the event model. The EntityEventListener event set does not entirely match the event model in Creatio IDE. Learn more about the Entity event layer: Objects business logic.

And enabling the event on the object is needed for the sub-process in the object designer only. Please use the EntityEventListener instead.

Best regards,

Oscar

Hi Oscar,

I actually enabled the event on the object just to use it (as you said) in the sub-process in the object designer, but the customizations that I made there didn't work in an assembly package,  instead worked in a simple one.

Let me know if I have made myself clear or if you need other explanations.



Thank you.

Best regards,



Luca

Luca Tavasanis,

Hi,

As you said, you've enabled the event on the object to use in the sub-process in this object and did it in the assembly package. As stated on the Academy - it's impossible to use sub-processes on the object in the assembly package (and as a result the source code for the object won't be updated in case you are designing this sub-process in the assembly package). Can you please clarify what exactly is expected here?

Best regards,

Oscar

Hi Oscar,

sorry but I didn't understand that you were talking about the assembly package, my fault.

I will try the solution that you suggested with the EntityEventListener.

Thank you for your help!

Best regards,

Luca

The issue is that the process will execute asynchronously. The only way to get the value back from the process is, instead of using it as an output param, to send it as a message using a script task in the process that you will retrieve with client-side code on the page.

You can see an article outlining how to do this here: https://customerfx.com/article/sending-a-message-from-server-side-c-to-…

Basically, at the end of your process, you'll add a script task. In that script task you'll get the param value, then send it as a message (as outlined in the article). Then, in your page code, you'll listen for that message, check to make sure it's the message sent from your process, and then read the value and do whatever is needed with it.

Ryan

Hello Nicolas,

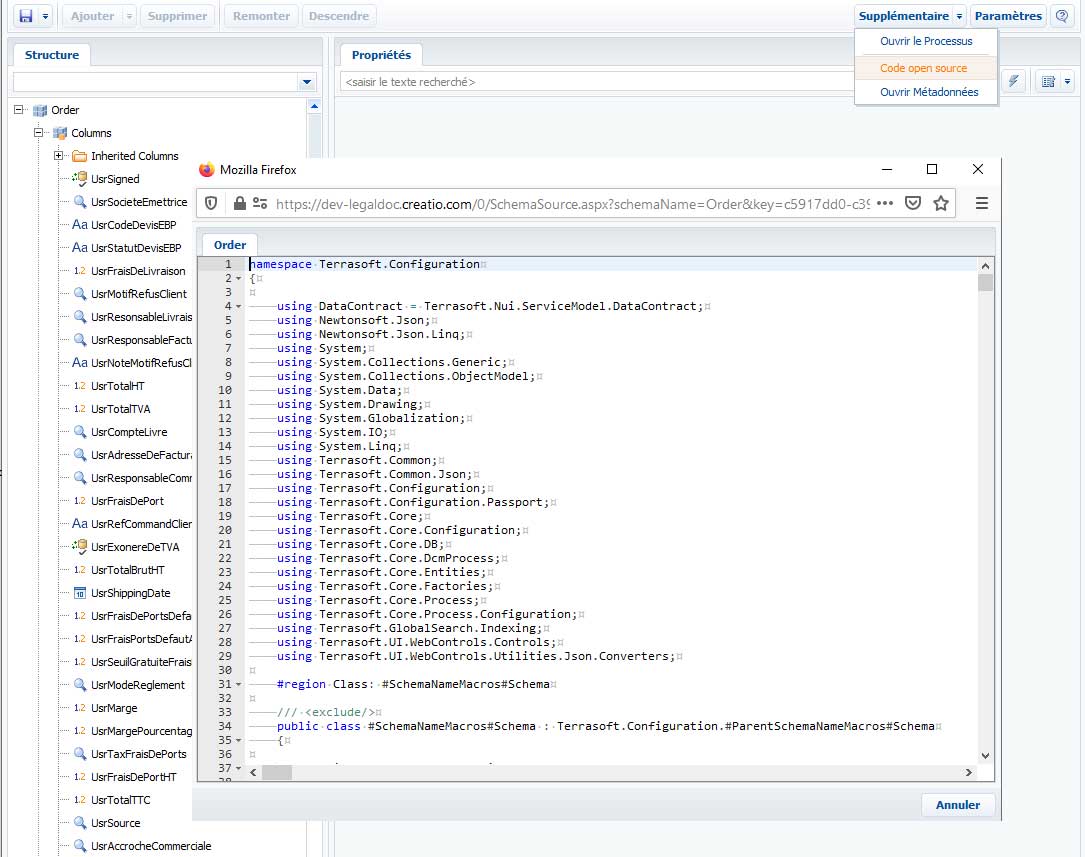

There was no possibility to edit the source code of the object ever in the Creatio app using the object "Source code" option. The window with the source code is always opened in the read-only mode. The only thing that you can edit and save is the content of the "Modification package" tab of the object metadata.

Best regards,

Oscar

Oscar Dylan,

Hello Oscar,

I apologize for disturbing you.

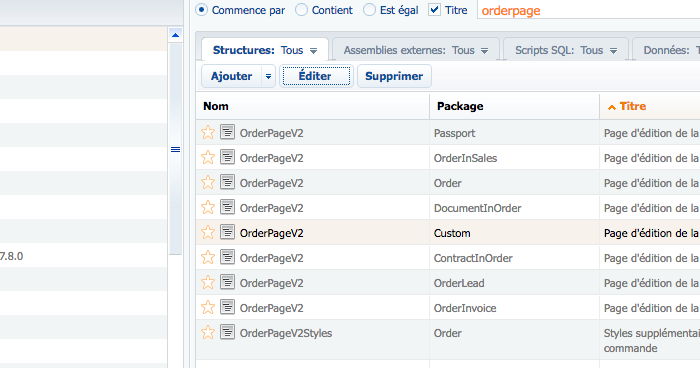

I was trying to access the orderpage by the order object... mistake.

Novice i am.

Have a nice day and thank you again

Best regards,

Nicolas
