Hello Creatio Community,

I can not add records in a custom detail added in the Account section.

When i Click the plus sign of the detail nothing happens.

From F12 i get a very generic issue (Can not read properties of undefined (reading ' toLowerCase'). How can i further debug/solve the issue ?

Thank you

Sasori

Like 0

Like

2 comments

Hello Sasori,



unfortunately, it is quite difficult to analyze the issue like as there might be too many different reasons for such an error.



I kindly recommend you creating a separate support case and our team will help resolving the problem you are facing.



Kind regards,

Gleb.

Thank you Gleb :)

Show all comments

hello all,

is it possible to add an editable/free writeable table or list in the account section?

Like 0

Like

1 comments

Hello Jeremy,

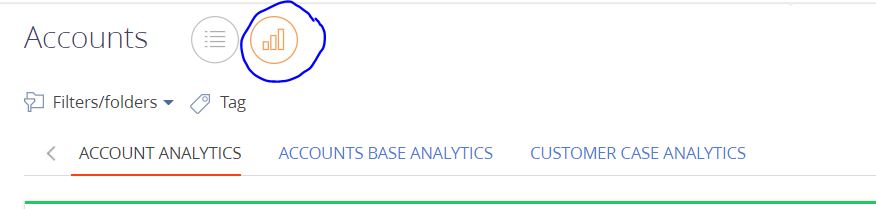

You can add the chart for the Account's section record, it will be available once the record page is opened. It can be done through the Section wizard same way as you add a new column, just choose the needed page element.

Also, you can create a chart for the section here:

Inserting the chart in the list view of the standard section, however, will require additional development.



Best regards,
Anastasiia

Show all comments

Hi Community,



On an Editable Section, I want to lock the Quantity Column when Status changes to In Stock. Is their any way I can do this?

I tried to use the Business Rules on Page but it seems that it doesn't work on Section.

Like 1

Like

2 comments

Unfortunately at the moment, Business Rules don't work with details with the editable section.
We have already registered a problem to fix it in future releases. I attached this case to increase its priority.

Михайло Зеленюк,



Yes this is a very important ask, suddenly changes can be made that were not before.

Thanks,

Damien

Show all comments

 Hi community,

I'm trying to disable the columns of an editable detail to make them read only and I have read many articles about it, but I'm still having a problem that I can't fix.

I wrote this code in the GridDetail to disable the fields but I noticed that for some of the columns of the detail is not working.

getCellControlsConfig: function(entitySchemaColumn) {
    if (!entitySchemaColumn) {
        return;
    }
    var columnName = entitySchemaColumn.name;
    var enabled = (entitySchemaColumn.usageType !== this.Terrasoft.EntitySchemaColumnUsageType.None) &&
        !this.Ext.Array.contains(this.systemColumns, columnName);
    var config = {
        itemType: this.Terrasoft.ViewItemType.MODEL_ITEM,
        name: columnName,
        labelConfig: {visible: false},
        caption: entitySchemaColumn.caption,
        enabled: enabled
    };
    if (!this.values.IsEnabled) {
        config.enabled = false;
        //config.labelConfig.enabled = false;
        //this.set("Is"+columnName+"enabled", false);
    }
    if (entitySchemaColumn.dataValueType === this.Terrasoft.DataValueType.LOOKUP) {
        config.showValueAsLink = false;
    }
    if (entitySchemaColumn.dataValueType !== this.Terrasoft.DataValueType.DATE_TIME &&
        entitySchemaColumn.dataValueType !== this.Terrasoft.DataValueType.BOOLEAN) {
        config.focused = {"bindTo": "Is" + columnName + "Focused"};
    }
    console.log(config);
    return config;
},

Debugging I have discovered that the detail adds to the labelConfig the property "enabled" which is binded to an attribute ("isProductenabled").
I tried to force the property writing it in the method and I also tried to set the attribute manually, but it's not working... do you have any idea?

Let me know.

Thanks in advance.

Best regards,

Luca

Like 0

Like

5 comments
Best reply

Luca Tavasanis,

While I was debugging I have noticed that the properties of the labelConfig that enabled some of the fields where added in the method: "applyBusinessRulesForActiveRow: function(id, gridLayoutItems)" and to fix the issue I just added this method in the client module.

You can lock the fields in the editable detail using business rules on the page for the detail, rather than in code. On the page for the detail, add a business rule to make the field not editable. Something like
Condition: Boolean true = Boolean false (something that is never true)

Then: Make field editable (the condition is never true, so field is never editable)

The business rule will apply to the detail list and the fields will not be editable in the detail list.

Ryan

Hi Ryan,
I'm actually working with the BaseGridDetail so I can't lock it with a business rule... do you have any other idea?



Thanks anyway.

Luca

Luca Tavasanis,

IIRC to do it in code I usually do it like this (but unable to verify if this is correct at the moment)

getCellControlsConfig: function(entitySchemaColumn) {
    // get config from base
    var config = this.callParent(arguments);
    var columnName = entitySchemaColumn.name;

    // if this is the column I want to disable
    if (columnName === "UsrMyColumn") {
        Ext.apply(config, {
            enabled: false
        });
    }

    return config;
}

Hopefully that gets you closer, of course, if you're wanting to disable all, you could just remove the if to check the column it's for.

Ryan

Ryan Farley,

I just tried what you suggested but unfortunately it's not working... it returns an error when I use this.callParent(arguments);.
Thank you anyway.

Luca

Luca Tavasanis,

While I was debugging I have noticed that the properties of the labelConfig that enabled some of the fields where added in the method: "applyBusinessRulesForActiveRow: function(id, gridLayoutItems)" and to fix the issue I just added this method in the client module.

Show all comments

Dear Community,



This article shows us how to create a detail with an editable list.

The next step for us is to add an option to open this record like how you can open a page in the City lookup: https://prnt.sc/x79h2l

How do we add this functionality?



Thank you in advance!



Kind regards,

Yosef

Like 0

Like

3 comments
Best reply

Hello Yosef,

I have an article outlining how to do this here https://customerfx.com/article/adding-an-edit-button-to-the-selected-ro…

Hope this helps.
Ryan

Hello Yosef,

I have an article outlining how to do this here https://customerfx.com/article/adding-an-edit-button-to-the-selected-ro…

Hope this helps.
Ryan

Ryan Farley,

Works like a charm!

I do however recommend adding the following for consistency:

{
  "className": "Terrasoft.Button",
  "style": this.Terrasoft.controls.ButtonEnums.style.TRANSPARENT,
  "tag": "edit",
  "markerValue": "edit",
  "imageConfig": {"bindTo": "Resources.Images.CardIcon"}
},

This way you get the same icon as the other details.



Kind regards,

Yosef

Yosef,

That is true, I do have that in the article as well (it's at the end of the article), however at the time I was doing this for a system where they wanted the "edit" action more obvious to users. However, for consistency with the rest of Creatio, I'd go the route of using the icon as well.

Glad it worked for you.

Ryan

Show all comments

Hi Community,

We are trying to add a inline editing/adding of data for a detail. With the academy link : https://academy.creatio.com/documents/technic-sdk/7-16/adding-detail-editable-list , was able to add the editable list. But the number of fields in the detail is more than 8.  As we can’t have a editable for tiles view.



Is there a way to add more column in "select fields to display" and How can I add horizontal to this "select fields to display" in the settings page?



Also, how to add horizontal scroll in the mail detail page to scroll and add content if there are more columns?

Like 3

Like

1 comments

Hello Amritha,



To add more columns to the "Columns setup" they should be added to the detail object directly and then they will become available in the "Columns setup". Starting from 7.16.4 horizontal scroll in the column setup is available out-of-the-box so please update your app to 7.16.4 to get needed functionality without additional development. As for adding the scroll to the main detail - I am not sure if it is possible since properties like "overflow-y" or "scroll-padding-top" are CSS properties that can be theoretically added to the grid wrap of the detail data grid, but it would be easier to use the "Show more" option at the bottom of the detail rather than developing custom CSS and connecting it as a separate module to the detail schema.



Best regards,

Oscar

Show all comments

I have been having issues changing the default behavior when adding a record from a detail with an editable list. After adding the “IsEditable” attribute to my detail schema, whenever I want to add a record from the detail page a new row is added rather than showing the edit page for adding a new record. Is there a way I change this behavior?

Like 1

Like

2 comments
Best reply

Daer Alex,



You can override the method openCardByMode in the detail schema, forcing the detail to open the card instead of adding a row. You can see the original method in the BaseGridDetailV2 schema in the NUI package.



Daer Alex,



You can override the method openCardByMode in the detail schema, forcing the detail to open the card instead of adding a row. You can see the original method in the BaseGridDetailV2 schema in the NUI package.



Dennis Hudson,

 Thank you I was able to override this method and it worked. For anyone  trying to do a similar thing here is the code I added to my detail schema.



openCardByMode: function() {
     const cardState = this.get("CardState");
     const editPageUId = this.get("EditPageUId");
     const primaryValueUId = this.get("PrimaryValueUId");
     this.openCard(cardState, editPageUId, primaryValueUId);
}



I just removed the if else statement from the original method:



if (this.getIsEditable() && cardState !== enums.CardStateV2.EDIT) {
    this.addRow(editPageUId);
} else {
    this.openCard(cardState, editPageUId, primaryValueUId);
}



Show all comments

Hi Community,



We have working editable detail grid, now we have added an "Unlimited length text field" into it. How we can configure this field to make it Multi line field in Editable Detail Grid just like its behavior in edit page.

Like 0

Like

2 comments

I remember reading a post or Academy page about it but I have not tried it yet, myself. I want to know how to do this as well. I think they said you can apply custom CSS. Maybe this link can get you in the right direction. Let me know if you succeed.

https://community.creatio.com/questions/detail-styles-css

Hello,



In your detail schema please add this part of code to "attributes" of your schema:

"UsrStringField": {

                    "contentType": Terrasoft.ContentType.LONG_TEXT
                },



where "UsrStringField" should be replaced with the name of your column in the object that represents your detail.



Once done you need to refresh the page and once you click on the record in your detail with an editable list you will see this https://prnt.sc/retlu3



But as for making this field to be displayed as multi-line text without clocking on the record - it is not possible.



Best regards,

Oscar

Show all comments

Hello,

I have a detail into the Activity section in a page in a custom section. I modified the detail to be an editable list by using the method described in the documentation in the Academy. I want to default the Activity type to a new type I created called "Review", see screenshot. The result needed is to have the user click the "+" sign in the detail, a new row is created below of type "Review", and they can start filling in the fields in the editable list.



Also, a second thing, is there a way to have the text wrap in the editable list like it does for a normal detail. If the text in a field is too long, it is cut off. Can I make it so it wraps down and makes the row taller?

Thank you very much.

Like 0

Like

2 comments

Hello Reid,

The easiest way to achieve this target is to specify "Review" to be an activity type by default (in advanced settings of Activity object http://prntscr.com/oq52rk). This will make all activities created in the application to have the type field being filled in with the value of "Review".

The second way to achieve a target is to create a process that will be triggered upon record adding into this detail and this process will set the value of "Review" for "Activity type" field. So once the record is added and user opens this record as an editable list - he will see needed activity type.

The third variant requires development skills. The method used upon record adding by clicking on "+" sighn is called addRecord. You can create a replacing schema for "ActivityDetailV2" object and specify your own addRecord method that will use ConfigurationConstant for activity type.

And as per your second question - you can set this string field as "Multi-line text" type field http://prntscr.com/oq5d3o and as a result it will be displayed in several rows.

Best regards,

Oscar

Oscar Dylan,

Hello Oscar,

Thank you so much for the response. Yes I am able to do either of the first two options, but the third option is, of course, preferred to make it less confusing for the user. I've tried to figure that out but I think it is beyond our skill at the moment. Need to keep learning.

As for the multi-line text, it seems that only works in normal fields or details. But if the detail has been modified to be an editable list, it does not wrap the text into multiple lines anymore, even with the multi-line text bool checked.

Show all comments

I have a detail referencing the Contacts section, that is an editable list detail:

Am I able to make the Contact lookup appear as a link on this view? That is, as link to the linked Contact record.



The list view preview shows the Contact as a link:

But not when I view the detail on the linked section??

Like 0

Like

2 comments

Dear Lauren,

You can try to transform the lookup field into hyperlink by referring to this article https://community.bpmonline.com/articles/how-make-url-string-field-clickable-hyperlink

Best regards,

Dean

Hi Dean,

The link needs to be the connected lookup record ... How would I reference this as a link?

Show all comments
