How to upload file/attachment using FileApiService

Hello,

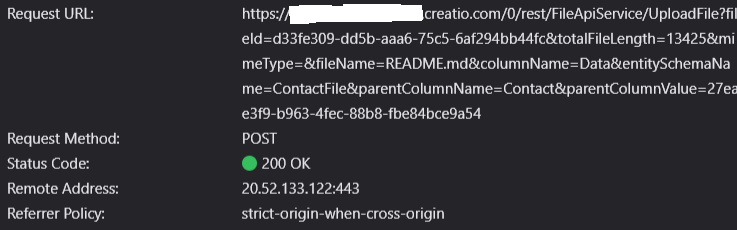

I am trying to upload files as you would do manually in the browser, but using an API. When dragging and dropping a file into the attachments tabs of any section, I see in the browser that Creatio performs a POST request to its FileApiService with a format like the following example:

The endpoint is https://my-creatio-site.creatio.com/0/rest/FileApiService/UploadFile and the file content is passed in the request body.

In order to simulate this behavior, I am sending 2 requests:

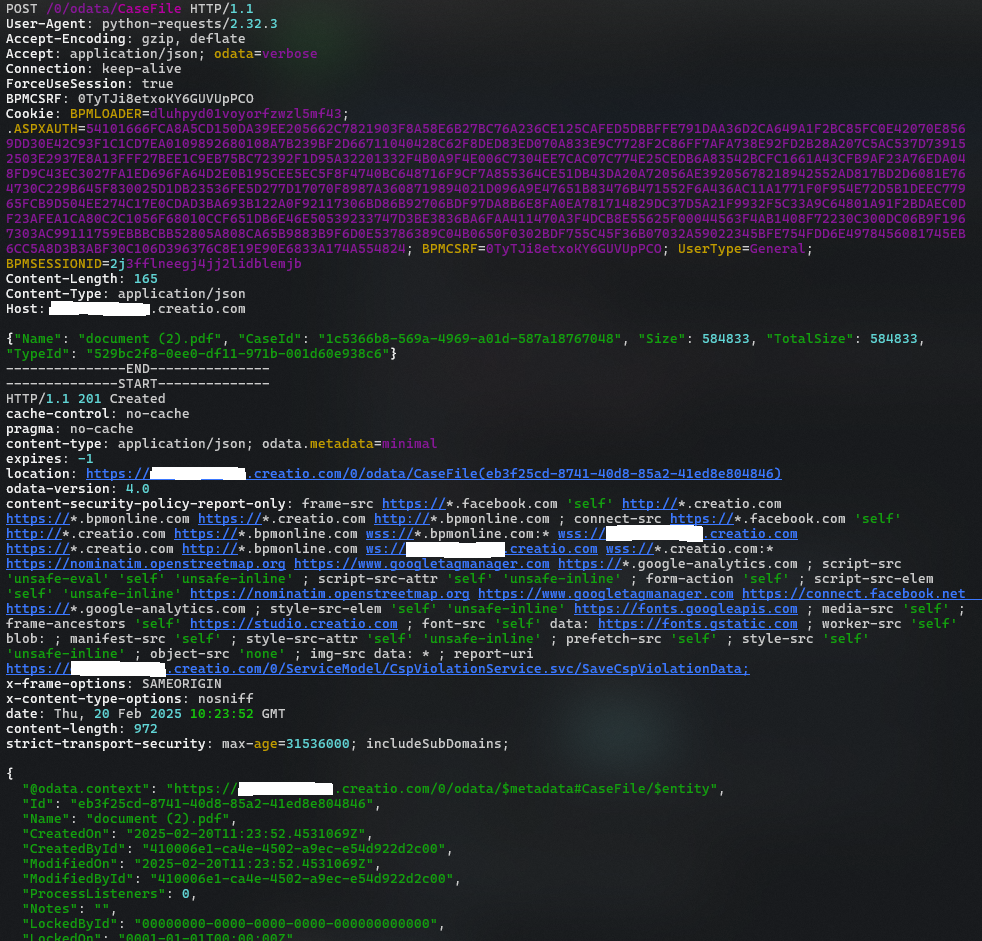

1. A POST request to create the file id allocating space in the File table:

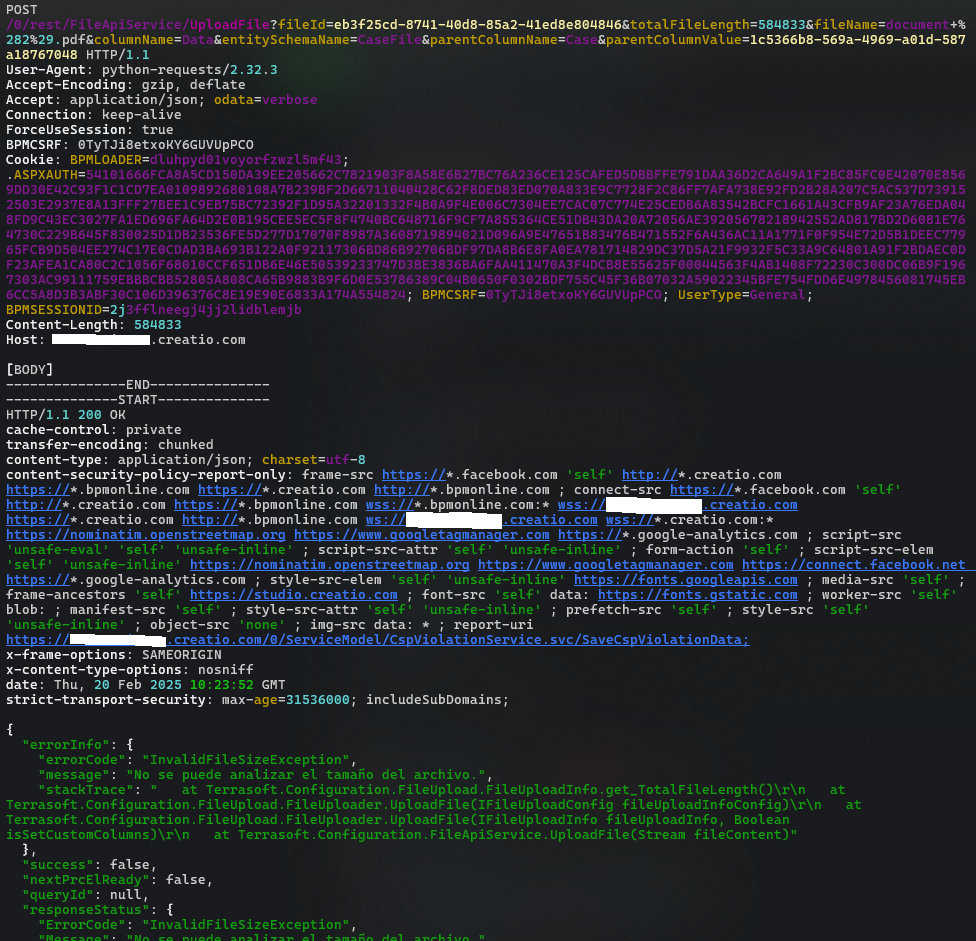

2. A POST request to https://my-creatio-site.creatio.com/0/rest/FileApiService/UploadFile using the file information to upload the actual file.

However as you can see, the 2nd request fails in my app with the following error:

{
  "errorInfo": {
    "errorCode": "InvalidFileSizeException",
    "message": "No se puede analizar el tamaño del archivo.",
    "stackTrace": "   at Terrasoft.Configuration.FileUpload.FileUploadInfo.get_TotalFileLength()\r\n   at Terrasoft.Configuration.FileUpload.FileUploader.UploadFile(IFileUploadConfig fileUploadInfoConfig)\r\n   at Terrasoft.Configuration.FileUpload.FileUploader.UploadFile(IFileUploadInfo fileUploadInfo, Boolean isSetCustomColumns)\r\n   at Terrasoft.Configuration.FileApiService.UploadFile(Stream fileContent)"
  },
  "success": false,
  "nextPrcElReady": false,
  "queryId": null,
  "responseStatus": {
    "ErrorCode": "InvalidFileSizeException",
    "Message": "No se puede analizar el tamaño del archivo.",
    "StackTrace": "   at Terrasoft.Configuration.FileUpload.FileUploadInfo.get_TotalFileLength()\r\n   at Terrasoft.Configuration.FileUpload.FileUploader.UploadFile(IFileUploadConfig fileUploadInfoConfig)\r\n   at Terrasoft.Configuration.FileUpload.FileUploader.UploadFile(IFileUploadInfo fileUploadInfo, Boolean isSetCustomColumns)\r\n   at Terrasoft.Configuration.FileApiService.UploadFile(Stream fileContent)",
    "Errors": null,
    "Meta": null
  },
  "rowsAffected": -1
}

I already ensured that the file size passed in both requests is exactly the same always (in this example is 584833 bytes) but I don't know what causes the error.

I already checked the following community posts but couldn't find any help:

• https://community.creatio.com/questions/how-upload-fileattachment-using-dataservice-api
• https://community.creatio.com/questions/how-upload-attachments-odata

Note: I tested these requests in many Creatio websites, all of them with version 8.2.0

Regards.
