It is possible to create button beside the group in the page

I want to put button beside the group. Is the structure of groups and details different?

Like 0

Like

2 comments

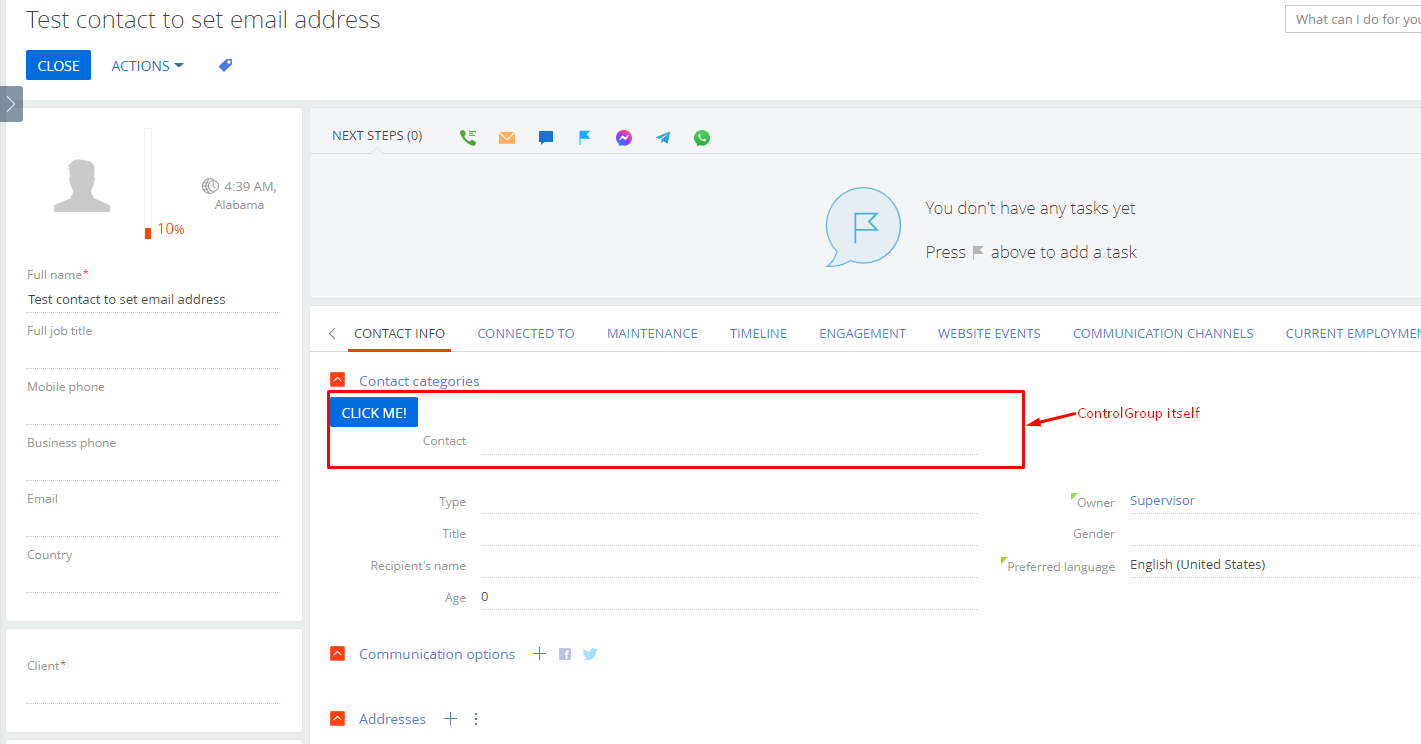

I was only able to put the button inside the ControlGroup, but not in the "tools" container since ControlGroups have no "tools" container (like standard details). The result was as follows:

It seems that its impossible to put the button beside the group, but it's possible to put it inside the group using the code like below:

{
				"operation": "insert",
				"name": "ContactCategoriesControlGroup",
				"parentName": "GeneralInfoTab",
				"propertyName": "items",
				"values": {
					"itemType": Terrasoft.ViewItemType.CONTROL_GROUP,
					"caption": {"bindTo": "Resources.Strings.ContactCategoriesControlGroupCaption"},
					"items": []
				},
				"index": 0
			},
			{
				"operation": "insert",
				"name": "ContactCategoriesControlGroupButton",
				"parentName": "ContactCategoriesControlGroup",
				"propertyName": "items",
				"values": {
					"itemType": Terrasoft.ViewItemType.BUTTON,
					"caption": {bindTo: "Resources.Strings.ContactCategoriesControlGroupButtonCaption"},
					"style": Terrasoft.controls.ButtonEnums.style.BLUE
				}
			},
			{
				"operation": "insert",
				"name": "ContactCategoriesControlGroupContainer",
				"parentName": "ContactCategoriesControlGroup",
				"propertyName": "items",
				"values": {
					"itemType": Terrasoft.ViewItemType.GRID_LAYOUT,
					"items": []
				}
			},
			{
				"operation": "insert",
				"name": "RelatedContact",
				"parentName": "ContactCategoriesControlGroupContainer",
				"propertyName": "items",
				"values": {
					"bindTo": "UsrContact",
					"layout": {
						"column": 0,
						"row": 0,
						"colSpan": 12
					}
				}
			},

So either use this approach or add a button to the "Actions" menu or to the top of the page.



Best regards,

Oscar

Oscar Dylan,



I think for group and detail have the same environment. but apparently not.

Thanks for the answer Oscar!
