Enable OAuth 2.0 authorization for custom configuration web services

Hello all,

I am trying to enable OAuth 2.0 authorization for configuration web services on a on-premises Creatio v7.17/MS SQL instance. I followed this article and got stuck at Point #3 (Creating default resource). Has anyone been able to enable OAuth 2.0 successfully?? Pls find below some details reg my use case -

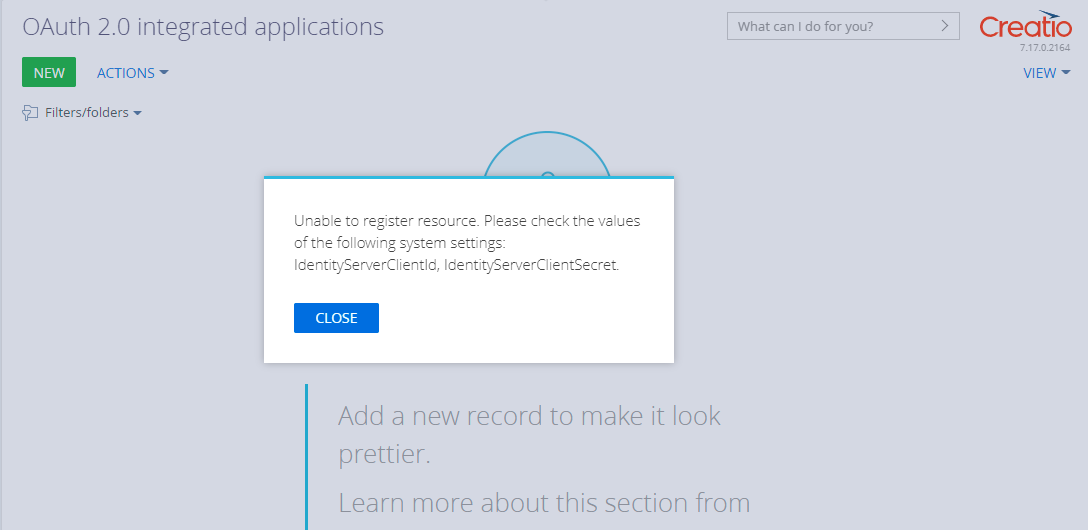

On trying to add a default resource from the Creatio GUI, we get an error. Ref "Error.png". There is no mention of having to change/fix 'IdentityServerClientId' and 'IdentityServerClientSecret' system settings in the Academy article. The article only mentions OAuth2.0 settings. I went ahead and set the same ClientId & ClientSecret in the above two system settings also. The same error continues.

I have attached a few files for your reference -

1. 'Error' log file.
2. 'OAuth20' log file (It says [BadRequest] invalid_scope)
3. appsettings.json file used to setup IdentityService.

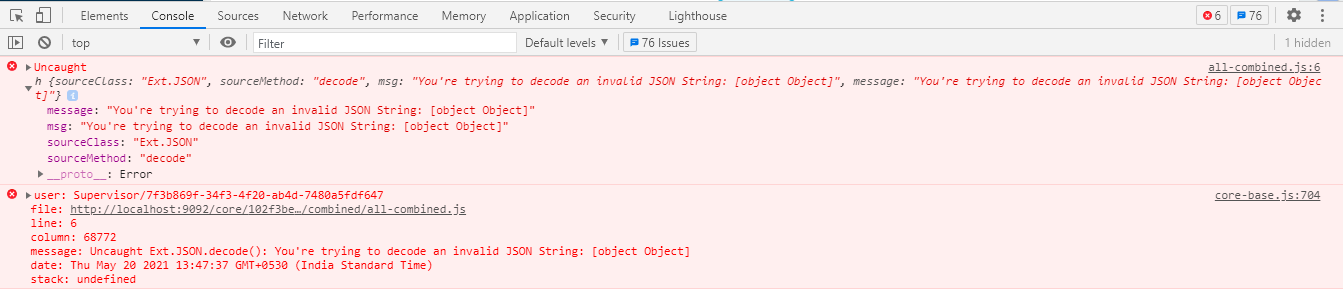

4. There is a console error which says Ext.JSON.decode is unable to decode the JSON string. However gives no info reg which JSON string it is speaking about. Ref "ConsoleError.png"
5. Pls find below value of all relevant system settings -
   1. OAuth20IdentityServerUrl & IdentityServerUrl - "http://localhost:90" (This is where IdentityService is hosted)
   2. OAuth20IdentityServerClientId & IdentityServerClientId - "bpmonline-designer"
   3. IdentityServerClientSecret & OAuth20IdentityServerClientSecret - "665b6f638c2da3ecc5d3a1868eb9352f6e01ee4a"
6. Few other data points -
   1. Creatio installation website is still on HTTP and not on HTTPS.
   2. Identity service website supports both HTTP & HTTPS. But setting the HTTPS url as the Server URL errors out.
