Collection of records parameter into a sub process

Cris Montgomery
01:40 Feb 09, 2026

Hi all,

I am running a process to deserialise a JSON string from a webhook and pass the results (an email address and a state) into a sub process.

The deserialisation step works as I can see the results which have been passed into the collection of records parameter in the process log (only 1 in this sample):

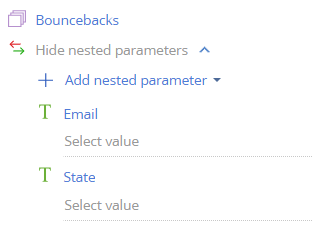

Collection parameter

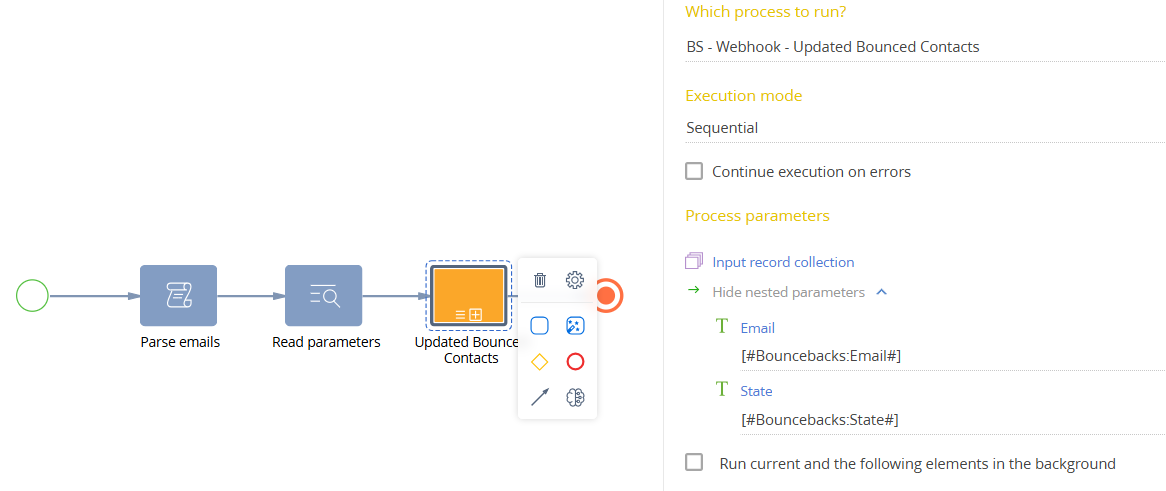

Parent process
                {
            "Parameter": "Bouncebacks",
            "Value": {
                "Before execution": [
                    {
                        "email": "billy.bob@river.com",
                        "__state__": "bounced"
                    }
                ],
                "After execution": [
                    {
                        "email": "billy.bob@river.com",
                        "__state__": "bounced"
                    }
                ]
            }
        }

  I pass this collection into a sub-process but the values don't appear to pass in correctly:

Parent process

//Sub process
        "Process parameters": [
        {
            "Parameter": "Email",
            "Value": {
                "Before execution": null,
                "After execution": null
            }
        },
        {
            "Parameter": "State",
            "Value": {
                "Before execution": null,
                "After execution": null
            }
        }
    ]

  I cannot figure out why not. Any ideas?

Like 0

Like

2 comments
Best reply
Dmitry S
17:44 Feb 16, 2026

Hi Cris, you can pass parameters to the process and execute it directly from the script element where you're parsing JSON like this:

UserConnection userConnection = Get<UserConnection>("UserConnection");
IProcessEngine processEngine = userConnection.IProcessEngine;
IProcessExecutor processExecutor = processEngine.ProcessExecutor;
var nameValues = new Dictionary<string, string>();
nameValues["Parameter1"] = someValue1.ToString();
nameValues["Parameter2"] = someValue2.ToString();
processExecutor.Execute("UsrProcessName", nameValues);

this line

processExecutor.Execute("UsrProcessName", nameValues);

will always execute the latest active version of the process. So if you create new version of the UsrProcessName it will be run without need to update the script. Naturally this code should be included into your original cycle where the parsing itself is performed.

Antonii Viazovskyi
18:20 Feb 10, 2026

Hello.

Passing parameter values of collection types is not supported for compiled process schemas.
Therefore, to resolve this, it is recommended to create a new process schema.
The diagram contains task elements that include source code, so the code logic should be moved into a source-code schema. Then, in the business process schema, create an instance of that class and call its methods.

Best regards,
Antonii.

Dmitry S
17:44 Feb 16, 2026

Hi Cris, you can pass parameters to the process and execute it directly from the script element where you're parsing JSON like this:

UserConnection userConnection = Get<UserConnection>("UserConnection");
IProcessEngine processEngine = userConnection.IProcessEngine;
IProcessExecutor processExecutor = processEngine.ProcessExecutor;
var nameValues = new Dictionary<string, string>();
nameValues["Parameter1"] = someValue1.ToString();
nameValues["Parameter2"] = someValue2.ToString();
processExecutor.Execute("UsrProcessName", nameValues);

this line

processExecutor.Execute("UsrProcessName", nameValues);

will always execute the latest active version of the process. So if you create new version of the UsrProcessName it will be run without need to update the script. Naturally this code should be included into your original cycle where the parsing itself is performed.
