Sadly, there's no way to handle the timeout error in the process, it will only put the process in an error state - I do wish it was an option to handle that in the process rather than have the whole process error.

Only option would be to increase the timeout for the web service call to possibly allow for the additional needed time. Otherwise, I've added script tasks that check for the service availability and can branch as needed to avoid the web service call, but that defeats the benefits of using the no-code web service components in the first place.

Ryan

Ryan Farley,

Thank you, if possible can you please share an example of how did you added script tasks that check for the service availability?

AS,

It was basically just C# that called one of the API methods and then set a param in the process so it knew to proceed or branch elsewhere. How that would look would depend on the API, but essentially you’re just writing code to call the API directly.

Ryan Farley,

too bad this feature is not available until current version 8.2.x

come on RnD team 🤞

Hello,

Based on the provided information, the error message suggests that there are duplicate element names within the same package. This issue typically occurs when multiple elements in the package share the same name.

To resolve this, we recommend checking the package that contains the Activity object to ensure there are no duplicate element names. Review the elements within the package and confirm that each one has a unique name.

If you identify any duplicates, you will need to rename one of the elements to make it unique within the package. Once the duplicate element names are resolved, you should be able to add the CrtCoreBase package as a dependency without encountering the error.

Best regards,
Ivan

Ivan Savenko,

Hi,

I confirm that i have duplicate element like

But it  is safe to rename them because one is being used in incoming email message and other in outgoing email message (both section are connected to activity object).

Hello,

Since both sections are tied to the Activity object, it's likely that the error comes from duplicated data bindings in the same package.

You can check the "Data Bound" tab to see which bindings are actually needed. If both are, consider slightly renaming the duplicates (e.g., SysModule_Activity_Incoming, ..._Outgoing) to avoid conflicts.

Alternatively, you could remove or move one of the bindings to another package, depending on your setup.

Best regards,
Ivan

Ivan Savenko,

Hi,

I moved those duplicate elements to other package and now i am able to add new packages in depend on package.

Thanks

Hello!

You can definitely display the resolution time in the list, but unfortunately, applying dynamic coloring directly on the list records is not possible in the current version. However, we have registered the idea for consideration and possible future implementation by our R&D team.

As an alternative, you can consider adding the timer directly in the case record itself in Freedom UI list pages:

You can implement the timer feature within the individual case record:

Thank you!

Creatio does allow you to create your own custom UI components that you can add to the UI and even handle requests, read data, bind properties, etc. Documentation here on creating custom components: https://academy.creatio.com/docs/8.x/dev/development-on-creatio-platform/category/freedom-ui-component

Video tutorial here: https://www.youtube.com/watch?v=CE5uETqTsyQ&list=PLnolcTT5TeE2BMFf_XmJrSwpnbcLCLJkb

A simple approach (with limited capabilities compared to creating a full control) can be seen here: https://customerfx.com/article/embedding-an-iframe-on-a-creatio-freedom-ui-page/ (you could use this approach to render any HTML, not just an IFRAME as the article shows)

Ryan

Absolutely (assuming you're using Freedom UI pages in the portal). You can create custom components for any Freedom UI page. The fact that it's a page for external users does not limit the capabilities in any way.

If you're using classic pages in the portal, you can create custom elements, but the support for components isn't anywhere as complete as it is for Freedom UI pages.

Ryan

For classic details, rules implemented on the page are also manifested in the list for the detail. I believe you can just implement the filtering for the lookup on the page for the detail, then it will work in the list as well.

Thank you Ryan  for your answer!

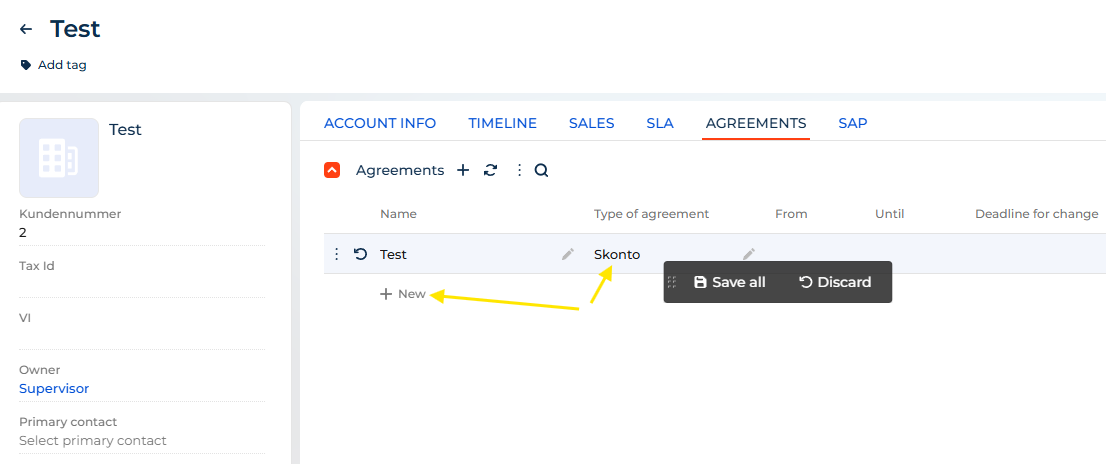

Actually, my detail is an editable grid. I noticed that the page-level lookup filtering doesn't propagate into editable grids automatically. From my tests and observations, the editable grids seem to require explicit filtering logic within the generateActiveRowControlsConfig method instead.
Could you please confirm if this understanding is correct, and perhaps suggest any best practices or examples explicitly for editable grids?

It would look like this - I typically also add Type=4 for users (although that’s a little redundant) and also add Connection Type=0 to get employee users (not external/portal users).

Basically, from your screenshot, click "Quantity". Then set count > 0 (or click count to change to exists), then add the sub-conditions under that.

Ryan

Ryan Farley,

Thank you Ryan for your time and help! This solution worked for me.

Hello,

In order to create the mask for the text field you can add a handler that will apply formatting to the text field value when user are typing.

You can use the following code snippet as an example:

{
	request: "crt.HandleViewModelAttributeChangeRequest",
	handler: async (request, next) => {
		if(request.attributeName == "PDS_SCCPF_luo5kno"){
			let value = await request.$context.PDS_SCCPF_luo5kno;
			value = value.replace(/\D/g, ""); // Remove non-digit characters
			if (value.length > 11){
				value = value.slice(0, 11); // Limit to 11 digits
			}
			let formatted = "";
			if (value.length > 0) {
				formatted += value.slice(0, 3);
			}
			if (value.length >= 4) {
				formatted += "." + value.slice(3, 6);
			}
			if (value.length >= 7) {
				formatted += "." + value.slice(6, 9);
			}
			if (value.length >= 10) {
				formatted += "-" + value.slice(9, 11);
			}
			request.$context.PDS_SCCPF_luo5kno = formatted;
 			request.preventAttributeChangeRequest = true;
		}
		return next?.handle(request);
	}
}

Thanks so much.
It worked wonderfully.

Iryna Oriyenko,

Can you clarify what exactly preventAttributeChangeRequest does? Does this mean that any/all attribute values set in request.$context during the current request won't trigger subsequent change requests? I assume that is the case but wanted to make sure.

Thanks,
Ryan

Hi,

Yes, starting from version 8.x, Creatio uses dependency injection (DI) more actively, including for services like IFileRepository, which is now resolved via ClassFactory.Get<IFileRepository>().

To override the default implementation, you can register your custom class as the default for the interface in the dependency container.


Solution: Register your class for the interface

You have to create your own AppEventListener and bind your class to the appropriate interface there.

public class UsrAppEventListener : AppEventListenerBase
{
	public override void OnAppStart(AppEventContext context) 	{
		base.OnAppStart(context);
		ClassFactory.Bind<IFileRepository, CustomFileRepository>(reuseType: ReuseType.Singleton);
    }
}

Where:

• CustomFileRepository is your custom class that implements IFileRepository
• ReuseType.Singleton (or None) depends on your usage

⚠️ Important: Ensure your class fully implements the IFileRepository interface.

This way, when FileService calls ClassFactory.Get<IFileRepository>(), it will receive your custom implementation.

TU Irina

Tomasz Branicki,

Hi Irina.
I finally manage to upgrate creatio properly so i can try your sollution.
write now i gut such error

Terrasoft.Core.InstanceActivationException
 HResult=0x80131600
 Message=Error creating an instance of the "Terrasoft.Configuration.IFileRepository" class
 Source=<Cannot evaluate the exception source>
 StackTrace:
<Cannot evaluate the exception stack trace>

 This exception was originally thrown at this call stack:
   [External Code]

Inner Exception 1:
ActivationException: Error activating IFileRepository
More than one matching bindings are available.
Matching bindings:
 1) binding from IFileRepository to FileRepository
 2) binding from IFileRepository to UsrFileRepository
Activation path:
 1) Request for IFileRepository

Suggestions:
 1) Ensure that you have defined a binding for IFileRepository only once.

My class is describe like that

    [Terrasoft.Core.Factories.Override]
   public class UsrFileRepository : FileRepository.

can you give me a hand :)

regards
Tomek

Iryna Oriyenko,

Hi Irina.
I finally manage to upgrate creatio properly so i can try your sollution.
write now i gut such error

Terrasoft.Core.InstanceActivationException
 HResult=0x80131600
 Message=Error creating an instance of the "Terrasoft.Configuration.IFileRepository" class
 Source=<Cannot evaluate the exception source>
 StackTrace:
<Cannot evaluate the exception stack trace>

 This exception was originally thrown at this call stack:
   [External Code]

Inner Exception 1:
ActivationException: Error activating IFileRepository
More than one matching bindings are available.
Matching bindings:
 1) binding from IFileRepository to FileRepository
 2) binding from IFileRepository to UsrFileRepository
Activation path:
 1) Request for IFileRepository

Suggestions:
 1) Ensure that you have defined a binding for IFileRepository only once.

My class is describe like that

    [Terrasoft.Core.Factories.Override]
   public class UsrFileRepository : FileRepository.

can you give me a hand :)

regards
Tomek

Iryna Oriyenko,

Hi Iryna;
I find solution
I used rebind except bind.
thank you for help

regards Tomek

Hello,

First you should add Process file element to your business process where you can get the file and keep it for further usage in the process.

Then in Script Task you can retrieve that file and apply encoding. You can use the following code as an example

var files = context.Process.FindFlowElementByName("ObjectFileProcessingUserTask1").GetPropertyValue("ObjectFiles") as ICompositeObjectList<ICompositeObject>;
foreach(var file in files)
{
	if(file.TryGetValue<EntityFileLocator>("File", out EntityFileLocator fileLocator))
	{
		IFile fileItem = UserConnection.GetFile(fileLocator);
		using (System.IO.Stream stream = fileItem.Read())
		{
			/* Retrieve the file content and save it to the array. */
			var content = stream.ReadToEnd();
			var encodedContent = Convert.ToBase64String(content);
			Set<string>("EncodedFile", encodedContent);
		}
	}
}

Here ObjectFileProcessingUserTask1 is the name of Process file element in the business process.

Also don't forget to include Terrasoft.File and Terrasoft.File.Abstractions namespaces to the business process. In order to do that open the business process designer, go to the Methods tab and add the namespaces to the Usings list.

You can find more information about file processing in the articles:
https://academy.creatio.com/docs/8.x/no-code-customization/bpm-tools/process-elements-reference/system-actions/process-file-element
https://academy.creatio.com/docs/8.x/dev/development-on-creatio-platfor…

Thank you so much for the response.

I have successfully compiled my BusinessProcess, but how do I access 'EncodedFile' in my other tasks?

For example, I want to display it inside Auto-generated page, but I don't see my ScriptTask among my Process Elements in Formula window.

Please have a look at the “Process parameters” tab, as the result of the script execution is written to the “EncodedFile” process parameter

Considering it is a Base64 string, which process parameter type should I choose? Unlimited length text?

Also, I would like to get image width and height in the code and save it to parameter as well.

How can I get them in code?

Since Base64 string might be long Unlimited length text type will be a good choice for the parameter that will be used for storing it.

In order to get and save image width and height first you have to create 2 process parameters of type Integer (e.g.  ImageWidthParam and ImageHeightParam). Then in Script Task you can get the values using the following code:

using (System.IO.Stream stream = fileItem.Read())
{
	using (Image img = Image.FromStream(stream))
	{
		Set<int>("ImageWidthParam", img.Width);
		Set<int>("ImageHeightParam", img.Height);
	}
	/* Retrieve the file content and save it to the array. */
	var content = stream.ReadToEnd();
	var encodedContent = Convert.ToBase64String(content);
	Set<string>("EncodedFile", encodedContent);
}

Also add System.Drawing namespace to the business process the same way as you added Terrasoft.File and Terrasoft.File.Abstractions namespaces.

Thank you so much for the replies!

Only thing that doesn't work is that EncodedFile seems to be empty.

When I try to print it inside AutoGeneratedPage as a text field it shows nothing, and when I forward it in a WebService .json body to my API there is no data.

Process file element is fetching last 10 records from uploaded files, I tried looking up uploaded files and there are test images there, so there should be valid input to my ScriptTask.

Is there something about Process Parameter "EncodedFile" that I should set up differently except setting its type as Unlimited length text? Everything else I left at default values.

The problem that EncodedFile parameter is empty could be that the stream position is at the end, so when you call stream.ReadToEnd(), there's nothing left to read.
You can update a proposed code a bit to make sure that stream position is not at the end before reading from it.

/* Retrieve the file content and save it to the array. */
var content = stream.ReadToEnd();
var encodedContent = Convert.ToBase64String(content);
Set<string>("EncodedFile", encodedContent);
using (MemoryStream imageStream = new MemoryStream(content))
using (Image img = Image.FromStream(imageStream))
{
	Set<int>("ImageWidthParam", img.Width);
	Set<int>("ImageHeightParam", img.Height);
}

Also I would recommend to debug Script Task code in Visual Studio in case you have some issues to make sure that it's executing as expected.
