Question

Read image data in business process

09:03 Jan 25, 2019

Hi all,

I have built a process which want to read product image to copy to another system. When I read data of Image (SysImage), field "Image" (aka Data in database) always returns null.How can I get that value to copy to another system.

Thanks

3 comments

Angela Reyes

12:12 Jan 25, 2019

Hi!

The task you are trying to achieve can only be completed through development. You can create a script task, which will copy the image from the system using script task element. We have no examples of such implementation, unfortunately. I will forward this request to our business analysts. They will evaluate the possibility of implementation such functionality in future system releases.

Best regards,

Angela

Toan Mai

12:49 Jan 25, 2019

Angela Reyes,

Hi Angela,

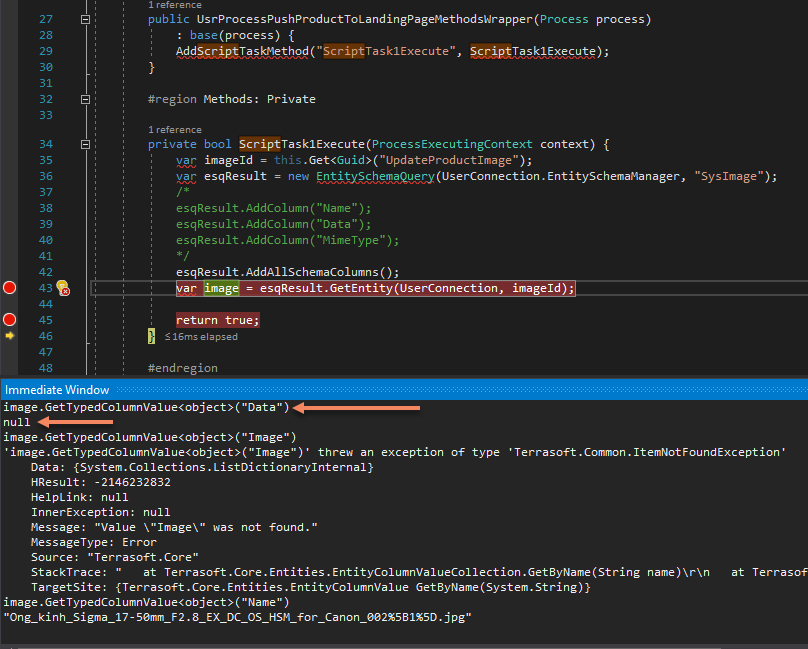

I have create a script task to get entity Image by Id, but the return's data is null, too.

Alex_Tim

18:58 Jan 25, 2019

Toan Mai,

Try to get image in that way Image.FromStream(entity.GetStreamValue("Data"))

It will return you System.Drawing.Bitmap value so you can process it as you wish.

Best regards,

Alex
