Opportunity Metrics implementation in Lead Section

Hi Team,



The requirement is to implement the Opportunity metrics container, like (Manager Mood, Probability) in the lead section based on some condition as (Lookup value - changes to "Opportunity") to the instance of version 8 and above.

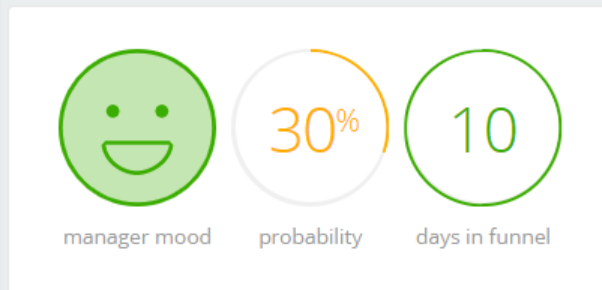

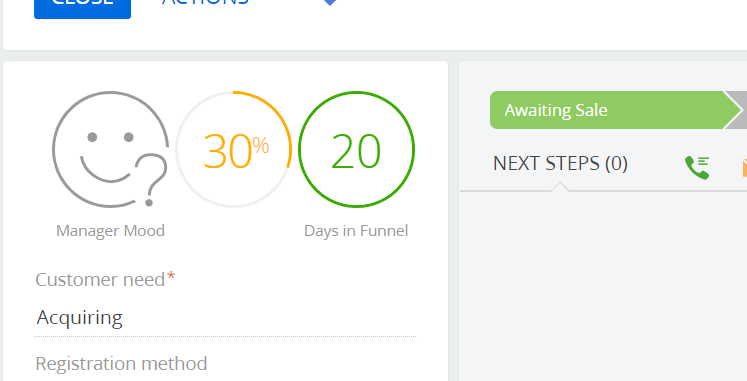

Reference image is added below,

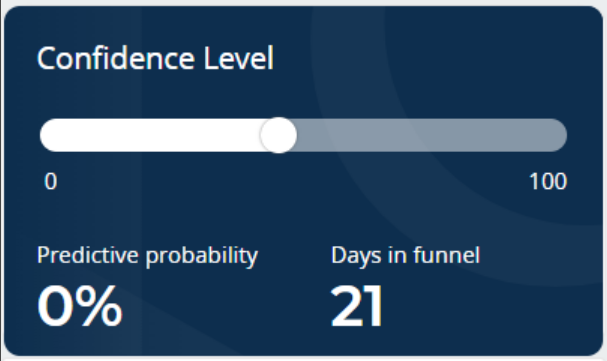

In the latest version we don't have this similar UI rather its updated to latest one in opportunity Section as below,





I have identified the code for the above metrics from base  file "Base Opportunity edit page" as shown below,





{
				"operation": "merge",
				"parentName": "ProfileContainer",
				"propertyName": "items",
				"name": "MetricsContainer",
				"values": {
					"layout": {"column": 0, "row": 0, "colSpan": 24},
					"itemType": Terrasoft.ViewItemType.CONTAINER,
					"classes": {"wrapClassName": ["ts-metrics-container"]},
					"items": [],
					"visible": true//{"bindTo": "isMetricsContainerVisible"}
				}
			},
			{
				"operation": "merge",
				"parentName": "MetricsContainer",
				"propertyName": "items",
				"name": "MoodContainer",
				"values": {
					"items": [],
					"itemType": this.Terrasoft.ViewItemType.CONTAINER,
					"classes": {"wrapClassName": ["ts-metric-item", "ts-mood-container"]}
				}
			},
			{
				"operation": "merge",
				"parentName": "MoodContainer",
				"propertyName": "items",
				"name": "OpportunityMood",
				"values": {
					"generator": "ImageListGenerator.generateImageList",
					"bindTo": "Mood",
					"id": "MoodImageList",
					"schemaName": "OpportunityMood",
					"schemaColumn": "Image",
					"caption": {"bindTo": "Resources.Strings.MoodListCaption"},
					"controlConfig": {
						"wrapClasses": ["opportunity-mood-image-list image-list"],
						"modalBoxClasses": ["opportunity-mood-image-list"]
					},
					"markerValue": "OpportunityMood",
					"tips": []
				},
				"alias": {
					"name": "Mood",
					"excludeProperties": ["layout"],
					"excludeOperations": ["remove", "move"]
				}
			},
			{
				"operation": "merge",
				"parentName": "OpportunityMood",
				"propertyName": "tips",
				"name": "MoodTip",
				"values": {
					"content": {"bindTo": "Resources.Strings.MoodTip"}
				}
			},
			{
				"operation": "merge",
				"parentName": "MoodContainer",
				"propertyName": "items",
				"name": "MoodCaption",
				"values": {
					"itemType": Terrasoft.ViewItemType.LABEL,
					"caption": {"bindTo": "Resources.Strings.MoodCaption"},
					"classes": {"labelClass": ["ts-metric-item-caption"]}
				}
			},

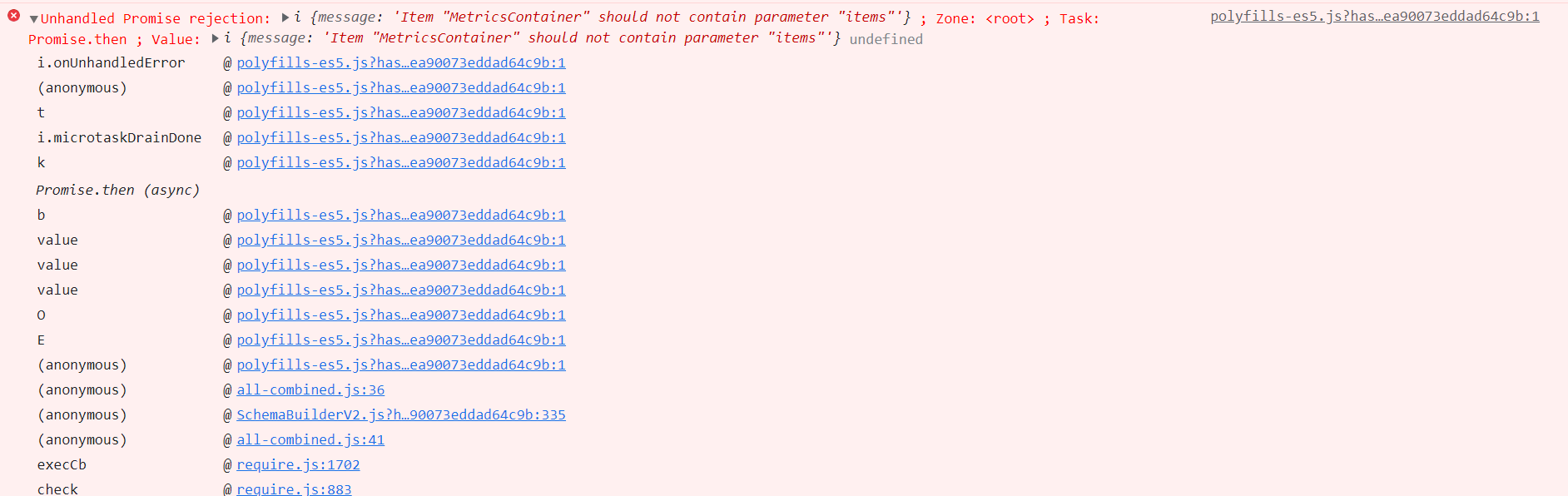

When I tried to implement in the current package with the file "OpportunitypageV2", I am facing the below error.





Kindly help me in figuring out the code that has to be included, so as to implement the metrics in Lead section.



Regards,

Adharsh S
