Issue migrating updated dashboards from Dev to Pre environment
Hi Community,

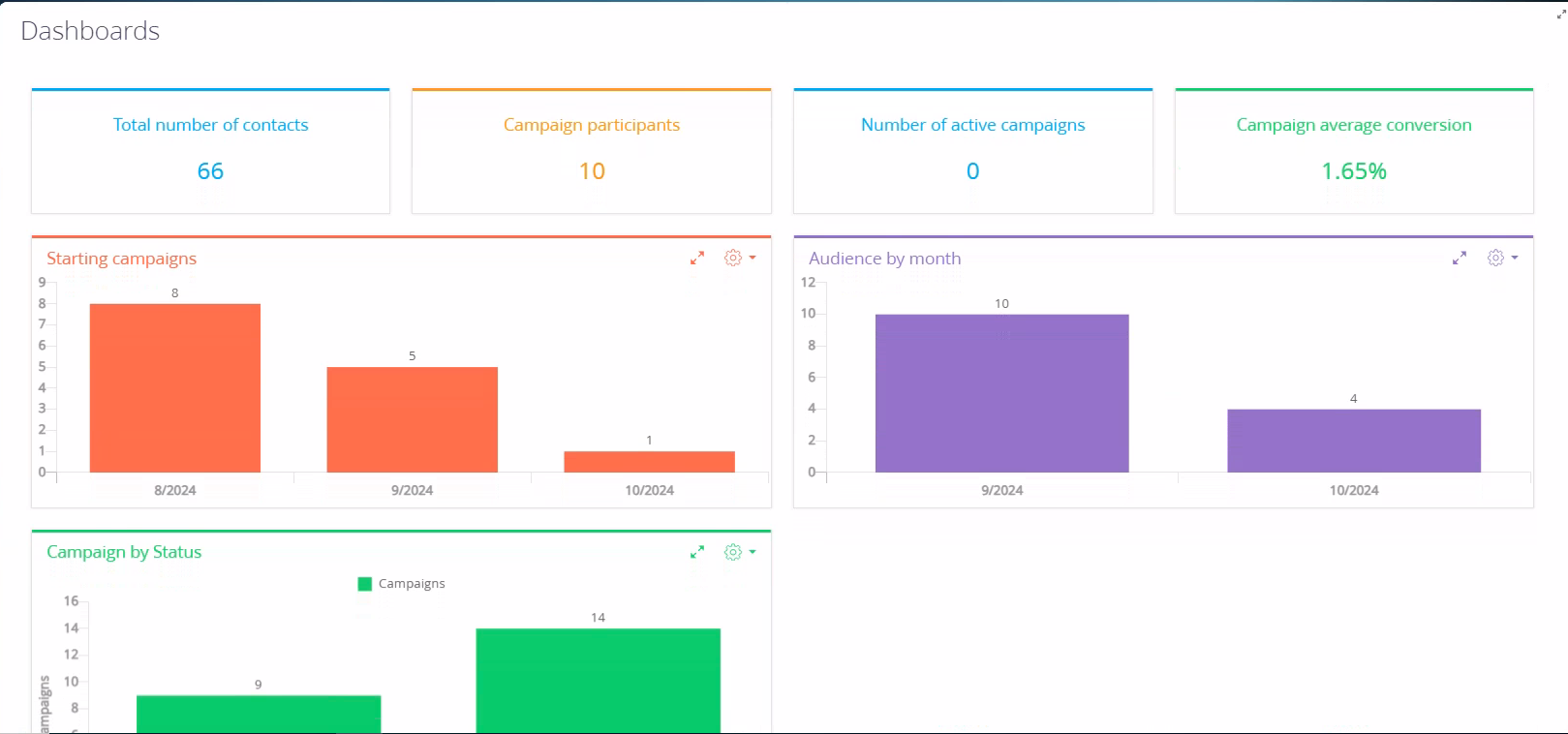

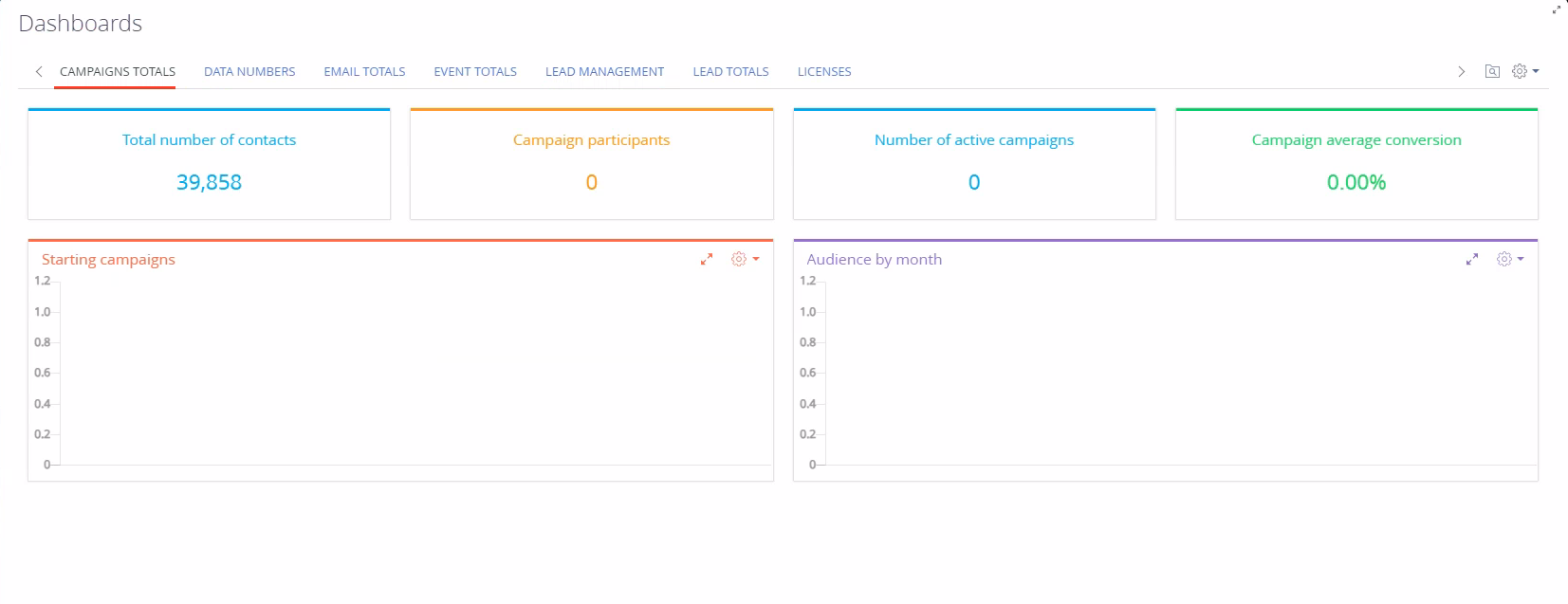

We made changes to existing tabs under "Dashboard" section in dev environment. Then we data bound the tabs data in SysDashboard Object and migrated to Pre environment. But the changes we made to the existing tabs such as Campaign Totals, Email Total etc. are not reflecting in the pre environment. How can we resolve it? Attached are the two screenshots from the 2 environments - we have an additional chart "Campaign by status" in the dev environment but is missing in pre even after data migration. Thanks!
Like
Hi,
When dashboards are added to an edit page, the corresponding records are created in SysWidgetDashboard and SysWidgetDashboardLcz tables.
If a dashboard is added not to an edit page but to the "Dashboards" tab, then records will be added in the SysDashboard and SysDashboardLcz tables, respectively.
.
Also, these data are correspondingly bound to the package that was set as the current package when the dashboards were created.
The thing is that dashboards are localizable system objects. When a dashboard is created, records are created in two tables:
- a record about a dashboard created in the localization, which corresponds to the base culture of the system, is created in the [SysWidgetDashboard]/[SysDashboard] table;
-records about dashboards of all other localizations are created in the [SysWidgetDashboardLcz]/[SysDashboardLcz] table and are linked to a record in the [SysWidgetDashboard]/[SysDashboard] table by the [RecordId] column.
So, basically, all you need to do is prepare a package that contains all the needed data bindings and SQL scenarios to perform the records' entry into the tables mentioned above.
More information on data binding is available at our academy.
Also, knowledge of SQL might be needed to find the needed dashboard in the database, although you can always create a lookup and search via UI.
