Question

How to update global search result for BankCard object OOTB with customized result?

20:39 Jan 10, 2022

Hi Team,

We are able to update the global search result for a few of the OOTB object schemas by replacing the corresponding module such as AccountSearchRowSchema and for contacts - ContactSearchRowSchema.

a)OOTB object schema,

Contact, Account

https://community.creatio.com/questions/modify-global-search-result

b)I couldn't find any schema as BankCardSearchRowSchema for the OOTB object

BankCard. How to get this XSearchrowSchema generated?

No details on BankCardSchema

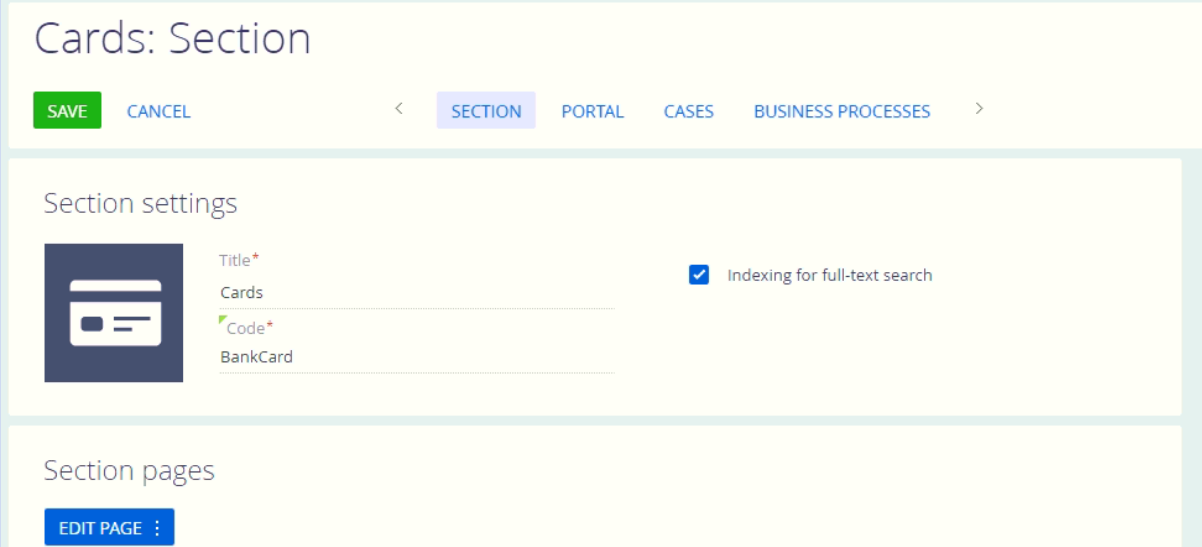

Please note the indexing for the object BankCard is enabled and the results are retrieved but wanted to update the result for this object. Unable to find

Any help would be greatly appreciated!

Best Regards,

Bhoobalan P.

13 comments

Best reply

Oleg Drobina

13:49 Jan 12, 2022

Hi Bhoobalan,

You can track if the global search results for the section uses its own SearchRowSchema or the BaseSearchRowSchema using the query below (MS SQL):

SELECT
	sme.Id, sme.ActionKindName, ss.[Name], ss.[UId]
FROM
	SysModuleEdit sme
JOIN
	SysSchema ss
ON
	sme.SearchRowSchemaUId = ss.UId
WHERE
	sme.SearchRowSchemaUId IS NOT NULL

But you can create a custom SearchRowSchema module for some section that doesn't have its own SearchRowSchema. The example below is for Documents section that also doesn't have its own SearchRowSchema module.

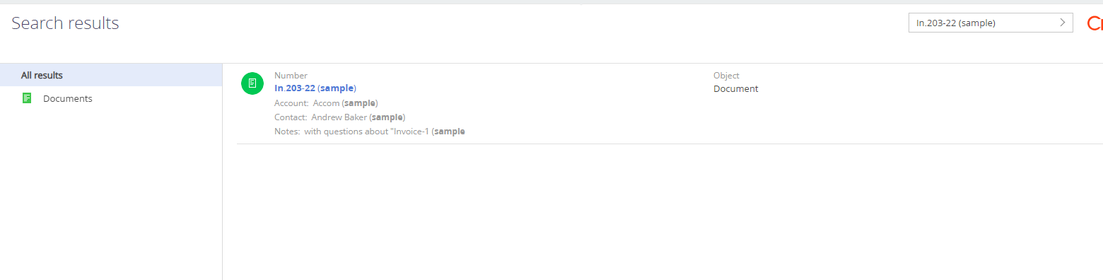

Here is the screenshot of the base result that the Global Search returns when searching a document:

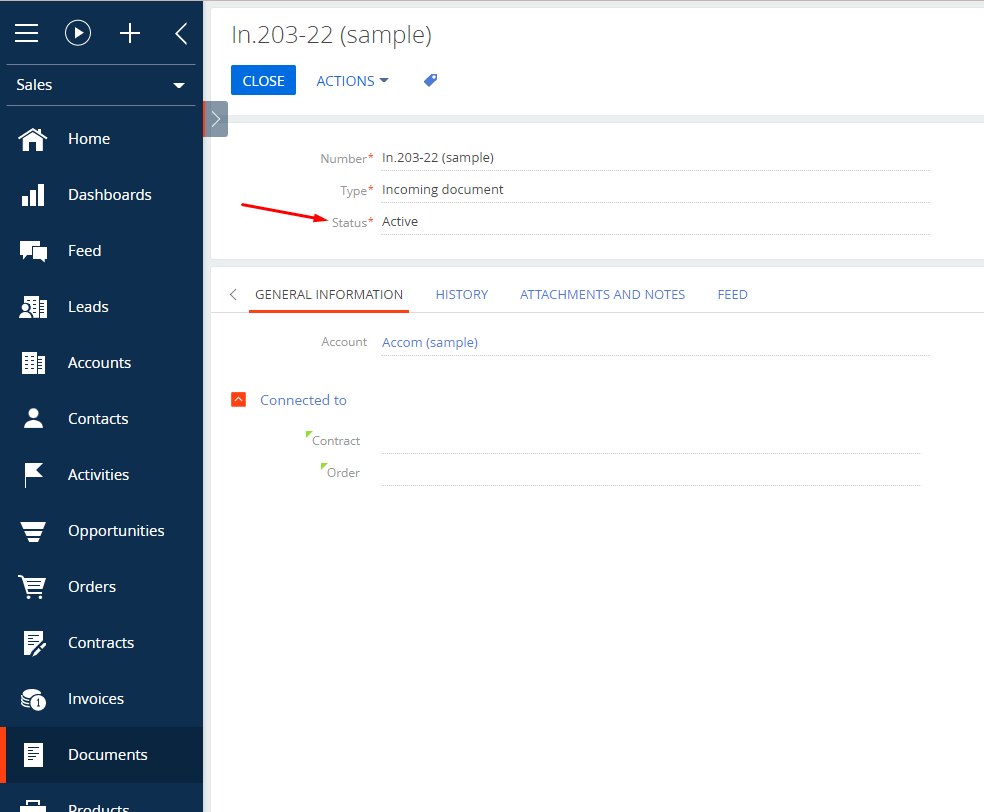

Let's say we want to add the "Status" column to the search result (the one from the screenshot below):

To achieve this:

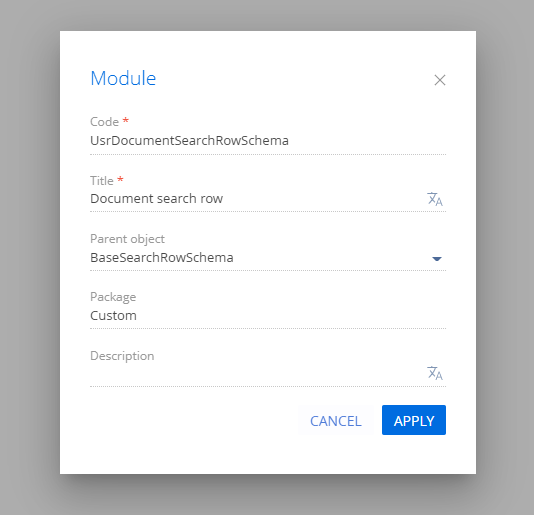

1) Create the "Page view model" in configurations with "UsrDocumentSearchRowSchema" code, "Document search row" name and select BaseSearchRowSchema as a parent:

2) Specify the following code in this schema:

define("UsrDocumentSearchRowSchema", [], function() {
	return {
		diff: /**SCHEMA_DIFF*/[
			{
				"operation": "insert",
				"parentName": "DataContainer",
				"propertyName": "items",
				"name": "State",
				"values": {
					"layout": {
						"column": 4,
						"row": 0,
						"colSpan": 12
					}
				}
			}
		]/**SCHEMA_DIFF*/
	};
});

and save the schema.

3) Find the SysModuleEdit record related to the Documents section (for example using the query below):

SELECT
	*
FROM
	SysModuleEdit
WHERE
	ActionKindName = 'Document'

and then update the value for the "SearchRowSchemaUId" column in this record:

UPDATE
	SysModuleEdit
SET
	SearchRowSchemaUId = '63388eba-74f2-4bc4-85f2-e6c326adb3e5'
WHERE
	Id
IN
	(
		SELECT
			Id
		FROM
			SysModuleEdit
		WHERE
			ActionKindName = 'Document'
	)

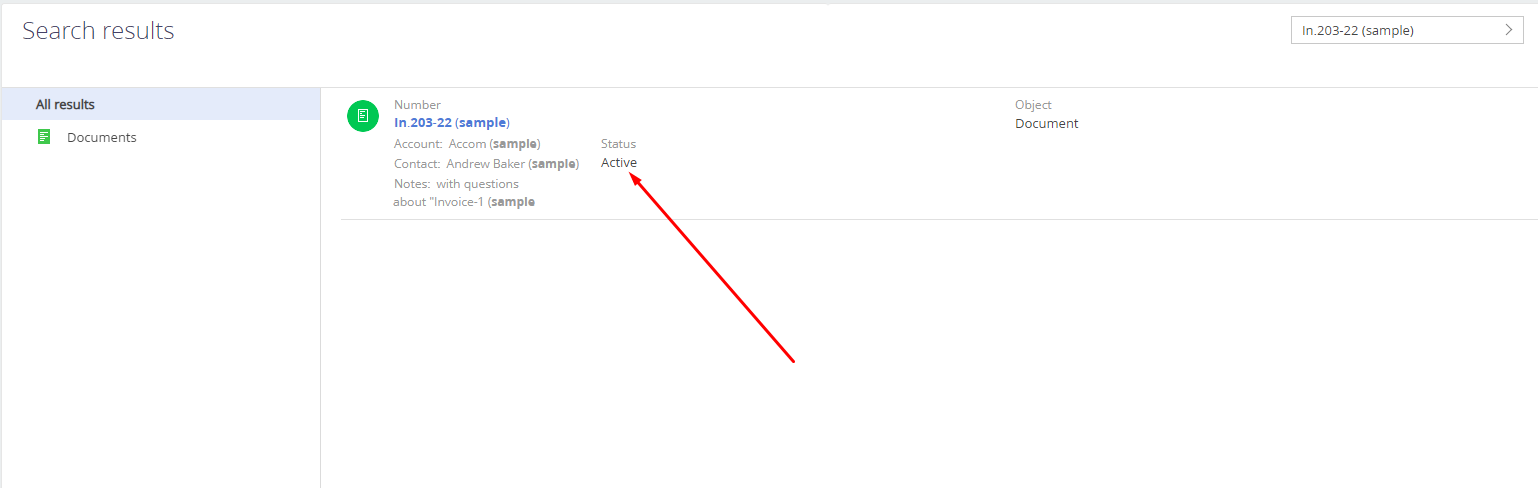

4) Refresh the page and check the result. The "Status" column should appear in the SearchRowSchema for documents:

Same operation can be performed to any section needed.

Best regards,

Oscar

Oleg Drobina

13:49 Jan 12, 2022

Hi Bhoobalan,

You can track if the global search results for the section uses its own SearchRowSchema or the BaseSearchRowSchema using the query below (MS SQL):

SELECT
	sme.Id, sme.ActionKindName, ss.[Name], ss.[UId]
FROM
	SysModuleEdit sme
JOIN
	SysSchema ss
ON
	sme.SearchRowSchemaUId = ss.UId
WHERE
	sme.SearchRowSchemaUId IS NOT NULL

Here is the screenshot of the base result that the Global Search returns when searching a document:

Let's say we want to add the "Status" column to the search result (the one from the screenshot below):

To achieve this:

1) Create the "Page view model" in configurations with "UsrDocumentSearchRowSchema" code, "Document search row" name and select BaseSearchRowSchema as a parent:

2) Specify the following code in this schema:

define("UsrDocumentSearchRowSchema", [], function() {
	return {
		diff: /**SCHEMA_DIFF*/[
			{
				"operation": "insert",
				"parentName": "DataContainer",
				"propertyName": "items",
				"name": "State",
				"values": {
					"layout": {
						"column": 4,
						"row": 0,
						"colSpan": 12
					}
				}
			}
		]/**SCHEMA_DIFF*/
	};
});

and save the schema.

3) Find the SysModuleEdit record related to the Documents section (for example using the query below):

SELECT
	*
FROM
	SysModuleEdit
WHERE
	ActionKindName = 'Document'

and then update the value for the "SearchRowSchemaUId" column in this record:

UPDATE
	SysModuleEdit
SET
	SearchRowSchemaUId = '63388eba-74f2-4bc4-85f2-e6c326adb3e5'
WHERE
	Id
IN
	(
		SELECT
			Id
		FROM
			SysModuleEdit
		WHERE
			ActionKindName = 'Document'
	)

4) Refresh the page and check the result. The "Status" column should appear in the SearchRowSchema for documents:

Same operation can be performed to any section needed.

Best regards,

Oscar

Bhoobalan Palanivelu

16:39 Jan 18, 2022

Oscar Dylan,

This is informative and thanks for sharing the steps!

I have an issue,

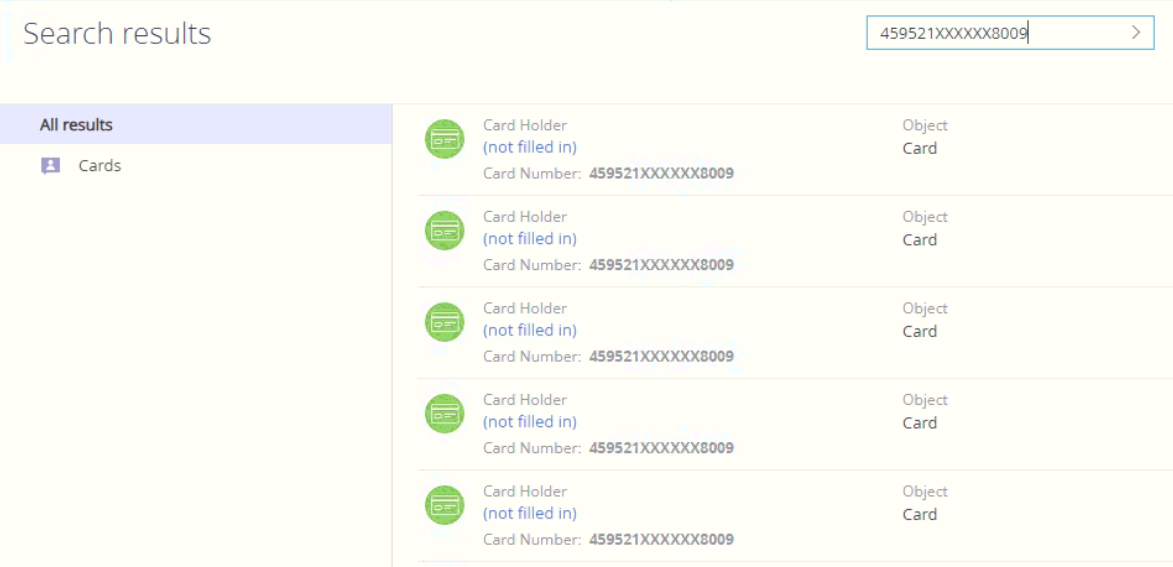

By default, the card search is working for the BankCard object in the customer journey bundle but one of the values shows as (not filled in)

a) Bound values not shown

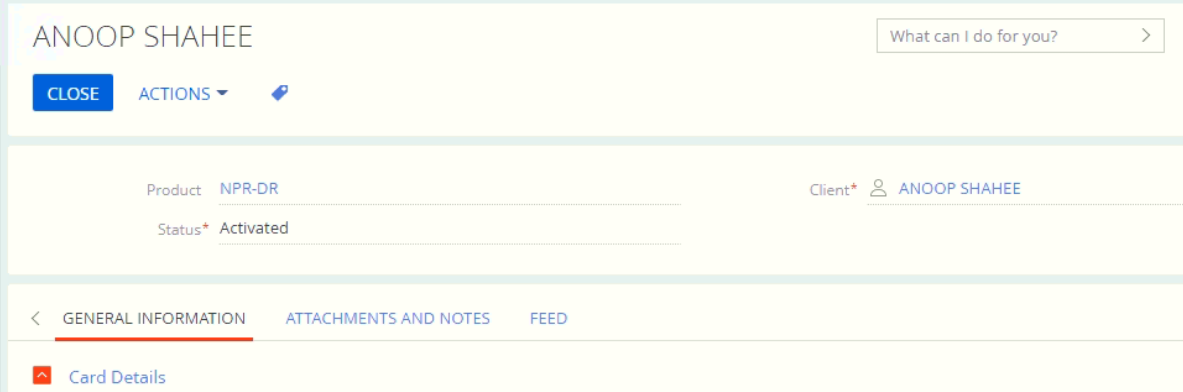

b) When clicked on (not filled in) it opens the record and the top left label is filled in as depicted below,

I have ran the re-indexation, but still the value is not shown in UI.

Any help would be higly appreciated!

Best Regards,

Bhoobalan Palanivelu.

Oleg Drobina

17:19 Jan 18, 2022

Bhoobalan Palanivelu,

Please send a complete code of the SearchRowSchema of the BankCard schema.

Best regards,

Oscar

Bhoobalan Palanivelu

18:00 Jan 18, 2022

Oscar Dylan,

Thanks for the quick response!

Unfortunately, there is no SearchRowSchema of the BankCard schema.

I have enabled the indexed in BankCard section and the result appears but there is no trace for "SearchRowSchema".

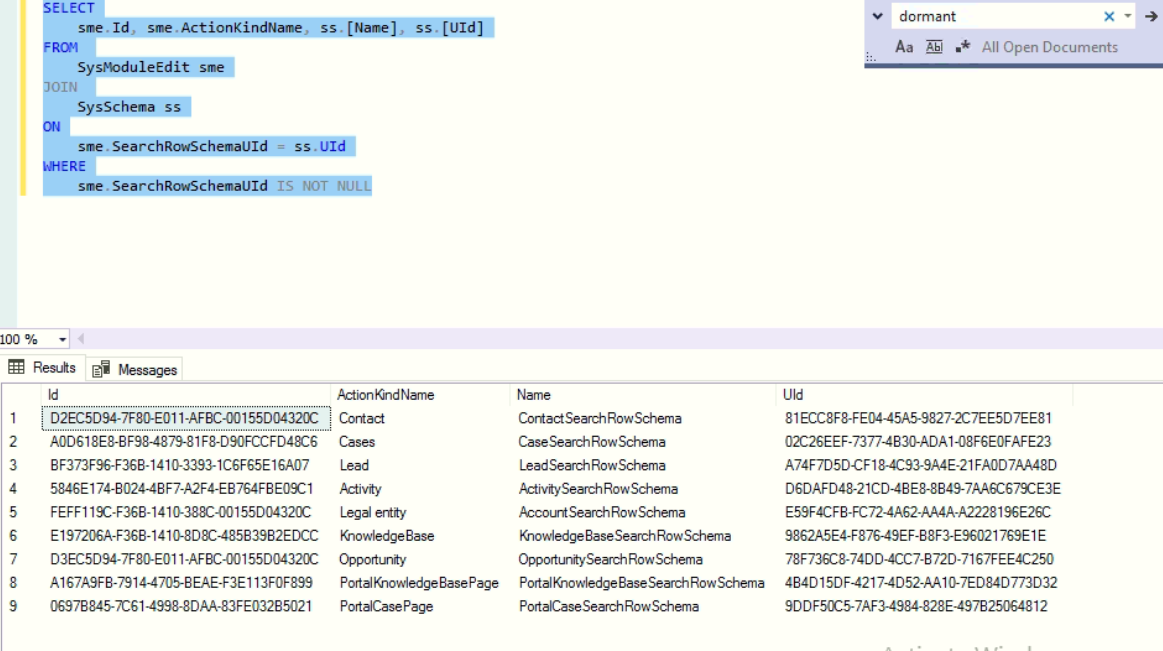

Also, I ran the query to track the schema of Global search below is the result

Attaching the "BaseSearchRowSchema" of Customer journey bundle,

define("BaseSearchRowSchema", ["NetworkUtilities", "ConfigurationEnums", "EmailHelper", "GlobalSearchViewGenerator",
	"MiniPageUtilities"], function(NetworkUtilities, ConfigurationEnums, EmailHelper) {
	return {
		hideEmptyModelItems: true,
		attributes: {
			/**
			 * Schema view config.
			 */
			"ViewConfig": {
				dataValueType: Terrasoft.DataValueType.CUSTOM_OBJECT
			},
			/**
			 * Array of found column names.
			 */
			"FoundColumnsCollection": {
				dataValueType: this.Terrasoft.DataValueType.COLLECTION
			},
			/**
			 * Entity schema caption.
			 */
			"EntitySchemaCaption": {
				"dataValueType": Terrasoft.DataValueType.TEXT,
				"type": Terrasoft.ViewModelColumnType.VIRTUAL_COLUMN
			},
			/**
			 * Primary column url value.
			 */
			"PrimaryColumnURL": {
				"dataValueType": Terrasoft.DataValueType.TEXT
			}
		},
		mixins: {
			MiniPageUtilities: "Terrasoft.MiniPageUtilities"
		},
		methods: {

			/**
			 * Returns state object module id for edit page.
			 * @private
			 */
			_getStateObjModuleId: function() {
				return Ext.String.format("{0}_{1}_{2}", this.sandbox.id,
					this.entitySchemaName, this.get(this.primaryColumnName));
			},

			/**
			 * @private
			 */
			_initTypedColumnValue: function (callback, scope) {
				const typeColumnName = this.get("TypeColumnName");
				if (typeColumnName &amp;&amp; !this.get(typeColumnName)) {
					NetworkUtilities.getAttributeValueByRecordId({
						entitySchemaName: this.entitySchemaName,
						entityId: this.get(this.primaryColumnName),
						attribute: typeColumnName
					}, function(typedValue) {
						this.set(typeColumnName, { value: typedValue });
						Ext.callback(callback, scope);
					}, this);
				} else {
					Ext.callback(callback, scope);
				}
			},

			/**
			 * @inheritdoc Terrasoft.BaseSchemaViewModel#init
			 * @overridden
			 */
			init: function(callback, scope) {
				const parentMethod = this.getParentMethod();
				Terrasoft.chain(
					function(next) {
						parentMethod.call(this, next, this);
					},
					this._initTypedColumnValue,
					function() {
						this.initEditPages();
						this.initMultiLookup();
						this.initAttributeValues();
						Ext.callback(callback, scope);
					}, this
				);
			},

			/**
			 * Fills lookup field.
			 * @param {String} name Entity schema name
			 * @param {String} value Entity value.
			 * @param {Function} callback Callback-function.
			 * @param {Object} scope Execution context.
			 */
			loadLookupDisplayValue: Terrasoft.emptyFn,

			/**
			 * @inheritdoc Terrasoft.BaseSchemaViewModel#sendGoogleTagManagerData
			 * @overridden
			 */
			sendGoogleTagManagerData: Terrasoft.emptyFn,

			/**
			 * Initializes viewmodel attributes.
			 * @protected
			 */
			initAttributeValues: function() {
				this.initSchemaCaption();
				this.set("PrimaryColumnURL", this.getPrimaryColumnURL());
			},

			/**
			 * Initializes entity schema caption.
			 */
			initSchemaCaption: function() {
				this.set("EntitySchemaCaption", this.entitySchema &amp;&amp; this.entitySchema.caption || "");
			},

			/**
			 * Returns eintity image url or section logo url or default image url.
			 * @protected
			 * @return {String} Image url.
			 */
			getImage: function() {
				var primaryImageColumnValue = this.get(this.primaryImageColumnName);
				if (primaryImageColumnValue &amp;&amp; primaryImageColumnValue.value) {
					return this.getSchemaImageUrl(primaryImageColumnValue);
				}
				var moduleStructure = this.getModuleStructure(this.entitySchemaName);
				if (moduleStructure &amp;&amp; moduleStructure.logoId) {
					return this.Terrasoft.ImageUrlBuilder.getUrl({
						source: Terrasoft.ImageSources.SYS_IMAGE,
						params: {
							primaryColumnValue: moduleStructure.logoId
						}
					});
				}
				return this.getDefaultImage();
			},

			/**
			 * Returns default image url.
			 * @protected
			 * @return {String} Default image url.
			 */
			getDefaultImage: function() {
				return this.Terrasoft.ImageUrlBuilder.getUrl(this.get("Resources.Images.DefaultSearchImage"));
			},

			/**
			 * Returns primary display column value.
			 * @protected
			 * @returns {String} Primary display column value.
			 */
			getPrimaryDisplayColumnValue: function() {
				var notFilledValue = this.get("Resources.Strings.NotFilled");
				if (this.primaryDisplayColumnName) {
					return this.get(this.primaryDisplayColumnName) || notFilledValue;
				}
				return notFilledValue;
			},

			/**
			 * Returns primary display column caption.
			 * @protected
			 * @returns {String} Primary display column caption.
			 */
			getPrimaryDisplayColumnCaption: function() {
				if (this.primaryDisplayColumnName) {
					var primaryColumn =  this.columns[this.primaryDisplayColumnName];
					return primaryColumn.caption;
				}
				return "";
			},

			/**
			 * Returns found column items view config.
			 * @private
			 * @return {Array} Found column items view config.
			 */
			getFoundColumnItemsConfig: function() {
				var columnNames = this.getAdditionalColumnNames();
				var items = [];
				Terrasoft.each(columnNames, function(columnName) {
					var columnContainer = {
						"id": columnName + "Container",
						"className": "Terrasoft.Container",
						"items": []
					};
					var column = this.getColumnByName(columnName) || this.get(columnName);
					var caption = column &amp;&amp; column.caption || columnName;
					var value = this.get(columnName);
					if (this.isNotEmpty(value)) {
						columnContainer.items.push({
							"className": "Terrasoft.Label",
							"classes": {"labelClass": ["found-column-caption"]},
							"caption": caption
						});
						columnContainer.items.push({
							"className": "Terrasoft.Label",
							"classes": {"labelClass": ["found-column-value"]},
							"caption": value.displayValue || value,
							"highlightText": this.getHighlightText(columnName)
						});
						items.push(columnContainer);
					}
				}, this);
				return items;
			},

			/**
			 * Returns found columns.
			 * @private
			 * @return {Object} Found columns array.
			 */
			getFoundColumns: function() {
				var foundColumnsCollection = this.get("FoundColumnsCollection");
				return foundColumnsCollection.getByIndex(0).get("FoundColumns");
			},

			/**
			 * Returns additional column names for view searcg result.
			 * Gets not showed found column names.
			 * @private
			 * @return {String[]} Not showed found column names.
			 */
			getAdditionalColumnNames: function() {
				var bindMap = this.getBindMap();
				var bindMapKeys = bindMap ? bindMap.getKeys() : [];
				var foundColumns = this.getFoundColumns();
				var additionalColumnNames = [];
				Terrasoft.each(foundColumns, function(item, columnName) {
					if(!(Ext.Array.contains(bindMapKeys, columnName)
							|| this.primaryDisplayColumnName === columnName)) {
						additionalColumnNames.push(columnName);
					}
				}, this);
				return additionalColumnNames;
			},

			/**
			 * Generates configuration of the element view.
			 * @protected
			 * @param {Object} itemConfig Link to the configuration element of ContainerList.
			 */
			onGetItemConfig: function(itemConfig) {
				var viewConfig = {
					"id": "foundColumns",
					"className": "Terrasoft.Container",
					"classes": {"wrapClassName": ["found-columns-list"]},
					"items": []
				};
				viewConfig.items = this.getFoundColumnItemsConfig();
				itemConfig.config = viewConfig;
			},

			/**
			 * Returns not showed columns container visibility.
			 * @protected
			 * @return {Boolean} Not showed columns container visibility.
			 */
			isFoundColumnsVisible: function() {
				var notShowedFoundColumns = this.getAdditionalColumnNames();
				return notShowedFoundColumns.length &gt; 0;
			},

			/**
			 * Returns primary column link url.
			 * @protected
			 * @return {String} Primary column link url.
			 */
			getPrimaryColumnURL: function() {
				return Ext.String.format("ViewModule.aspx#{0}", NetworkUtilities.getEntityUrl(this.entitySchemaName,
						this.get(this.primaryColumnName), this.getTypeColumnValue(this)));
			},

			/**
			 * Handler on primary column link mouse over.
			 * @protected
			 */
			onPrimaryColumnMouseOver: function(options) {
				this.openMiniPage({
					targetId: options.targetId,
					entitySchemaName: this.entitySchemaName,
					recordId: this.get(this.primaryColumnName)
				});
			},

			/**
			 * Handler on primary column link click.
			 * @protected
			 * @return {Boolean} False.
			 */
			onPrimaryColumnLinkClick: function() {
				var typedColumnValue = this.getTypeColumnValue(this);
				NetworkUtilities.openEntityPage({
					entityId: this.get(this.primaryColumnName),
					entitySchemaName: this.entitySchemaName,
					typeId: typedColumnValue,
					sandbox: this.sandbox,
					stateObj: {
						moduleId: this._getStateObjModuleId()
					}
				});
				return false;
			},

			/**
			 * @overridden
			 * @inheritdoc Terrasoft.BaseSchemaViewModel#onLinkClick
			 */
			onLinkClick: function(url, columnName) {
				this.updateColumnReferenceSchemaByMultiLookupValue(columnName);
				var column = this.getColumnByName(columnName);
				var columnValue = this.get(columnName);
				var entityId = columnValue &amp;&amp; columnValue.value;
				if (!column || !entityId) {
					return true;
				}
				NetworkUtilities.openEntityPage({
					entityId: entityId,
					entitySchemaName: column.referenceSchemaName,
					sandbox: this.sandbox,
					stateObj: {
						moduleId: this._getStateObjModuleId()
					}
				});
				return false;
			},

			/**
			 * Returns found column text for highlight.
			 * @private
			 * @param {String} columnName Column name.
			 * @return {String[]} Found column text array.
			 */
			getHighlightText: function(columnName) {
				var highlightTextArray = [];
				var foundColumns = this.getFoundColumns();
				if (columnName === "PrimaryColumn") {
					columnName = this.primaryDisplayColumnName;
				}
				Terrasoft.each(foundColumns, function(item, foundColumnName) {
					if (foundColumnName === columnName) {
						highlightTextArray = item;
					}
				}, this);
				return highlightTextArray;
			},

			/**
			 * Returns email url.
			 * @protected
			 * @param {String} columnName Column name.
			 * @return {String} Email url.
			 */
			getEmailUrl: function(columnName) {
				return EmailHelper.getEmailUrl(this.get(columnName));
			},

			/**
			 * Open browser mailto.
			 * @param {HTMLElement} target Target element.
			 * @param {String} columnName Email column name.
			 */
			onEmailUrlClick: function(target, columnName) {
				location.href = EmailHelper.getEmailUrl(this.get(columnName));
			},

			/**
			 * @overridden
			 * @inheritdoc Terrasoft.BaseSchemaViewModel#getLinkConfig
			 */
			getLinkConfig: function(columnName) {
				var config = this.callParent(arguments);
				var lookupLinkConfig = this.getLookupLinkConfig(columnName);
				this.Ext.apply(config, lookupLinkConfig);
				return config;
			},

			/**
			 * Gets lookup link config for open card.
			 * @private
			 * @param {String} columnName Column name.
			 * @return {Object} {schemaName: String} lookup link config for open card.
			 */
			getLookupLinkConfig: function(columnName) {
				var column = this.getColumnByName(columnName);
				var columnValue = this.get(columnName);
				if (column &amp;&amp; this.isNotEmpty(column.multiLookupColumns)) {
					var multiLookupColumn = this.getColumnByName(columnValue.column);
					var referenceSchemaName = multiLookupColumn.referenceSchemaName;
					var schemaName = this.getCardSchemaName(referenceSchemaName, multiLookupColumn.name);
					return {schemaName: schemaName};
				}
				return {};
			}
		},
		diff: /**SCHEMA_DIFF*/[
			{
				"operation": "insert",
				"name": "PrimaryImage",
				"propertyName": "items",
				"values": {
					"getSrcMethod": "getImage",
					"readonly": true,
					"onImageClick": {bindTo: "onPrimaryColumnLinkClick"},
					"generator": "ImageCustomGeneratorV2.generateSimpleCustomImage"
				}
			},
			{
				"operation": "insert",
				"name": "DataContainer",
				"propertyName": "items",
				"values": {
					"isViewMode": true,
					"itemType": Terrasoft.ViewItemType.GRID_LAYOUT,
					"items": [],
					"collapseEmptyRow": true
				}
			},
			{
				"operation": "insert",
				"name": "PrimaryColumnContainer",
				"parentName": "DataContainer",
				"propertyName": "items",
				"values": {
					"itemType": Terrasoft.ViewItemType.CONTAINER,
					"classes": {
						"wrapClassName": ["primary-column-container", "control-width-15"]
					},
					"items": [],
					"layout": {
						"column": 0,
						"row": 0,
						"colSpan": 12
					}
				}
			},
			{
				"operation": "insert",
				"name": "PrimaryColumnCaption",
				"parentName": "PrimaryColumnContainer",
				"propertyName": "items",
				"values": {
					"itemType": Terrasoft.ViewItemType.LABEL,
					"caption": {"bindTo": "getPrimaryDisplayColumnCaption"},
					"classes": {
						"labelClass": ["primary-column-caption"]
					}
				}
			},
			{
				"operation": "insert",
				"name": "PrimaryColumnValue",
				"parentName": "PrimaryColumnContainer",
				"propertyName": "items",
				"values": {
					"itemType": Terrasoft.ViewItemType.HYPERLINK,
					"classes": {"hyperlinkClass": ["primary-column-link"]},
					"caption": {"bindTo": "getPrimaryDisplayColumnValue"},
					"click": {"bindTo": "onPrimaryColumnLinkClick"},
					"linkMouseOver": {"bindTo": "onPrimaryColumnMouseOver"},
					"href": {"bindTo": "PrimaryColumnURL"},
					"tag": "PrimaryColumn",
					"highlightText": { bindTo: "getHighlightText" }
				}
			},
			{
				"operation": "insert",
				"name": "EntitySchemaCaption",
				"parentName": "DataContainer",
				"propertyName": "items",
				"values": {
					"caption": {"bindTo": "Resources.Strings.EntitySchemaLabelCaption"},
					"layout": {
						"column": 12,
						"row": 0,
						"colSpan": 6
					}
				}
			},
			{
				"operation": "insert",
				"name": "FoundColumnsContainerList",
				"propertyName": "items",
				"parentName": "DataContainer",
				"values": {
					"layout": {
						"column": 0,
						"row": 1,
						"colSpan": 12
					},
					"itemType": Terrasoft.ViewItemType.CONTAINER,
					"generator": "ContainerListGenerator.generateGrid",
					"collection": {"bindTo": "FoundColumnsCollection"},
					"onGetItemConfig": {"bindTo": "onGetItemConfig"},
					"visible": {"bindTo": "isFoundColumnsVisible"},
					"selectableRowCss": "",
					"items": []
				}
			}
		]/**SCHEMA_DIFF*/
	};
});

Any insight or help is highly appreciated!

Best Regards,

Bhoobalan Planivelu.

Oleg Drobina

18:36 Jan 18, 2022

Bhoobalan Palanivelu,

Thank you!

I understood that you've created the SearchRowSchema for the BankCard and asked to share its code.

I will try to implement the same on my side and see what happens.

Best regards,

Oscar

Bhoobalan Palanivelu

19:05 Jan 18, 2022

Oscar Dylan,

Thanks, please let me know the results once you have a successful implementation.

I enabled the index in the section page of BankCard but no SearchRowSchema is found for it.

Bhoobalan Palanivelu

09:57 Jan 20, 2022

Oscar Dylan,

Any update on this part, please?

Best regards,

Bhoobalan Palanivelu.

Oleg Drobina

17:00 Jan 20, 2022

Bhoobalan Palanivelu,

Hi,

I am sorry, but I don't need the BaseSearchRowSchema from your app (I do also have access to the BaseSearchRowSchema module from the bank bundle app), I need your custom SearchRowSchema code for the BankCard schema.

Best regards,

Oscar

Bhoobalan Palanivelu

18:11 Jan 20, 2022

Oscar Dylan,

That is the catch here, I couldn't find any SearchRowSchema for BankCardSchema. That is what I have shared in previous comments.

1. The SQL query doesn't return the BankCardSchema

2. There is no SearchRowSchema for BankCard.

3. All I did is open the Bank Card section and enable the Indexing by clicking the check box Indexing for full-text search.

The results appear and it doesn't have any X-SearchRowSchema and at the same time it shows (not filled in).

Best Regards,

Bhoobalan Palanivelu.

Bhoobalan Palanivelu

18:43 Jan 24, 2022

Oscar Dylan,

Any help/update on this?

Best regards,

Bhoobalan PAlanivelu

Oleg Drobina

12:10 Jan 26, 2022

Bhoobalan Palanivelu,

Please read my post with the instruction carefully. I've asked to create a replacing view module using the BaseSearchRowSchema as a parent and then connect it to the SysModuleEdit record of your section using the SearchRowSchemaUId column (and provided an example with the Documents section that also don't have its own SearchRowSchema).

Bhoobalan Palanivelu

18:20 Jan 28, 2022

Oscar Dylan,

I have followed the same steps as suggested and there needs a little update.

Step 1: Find the target object for GS result update (Here, it is BankCard)

Step 2: Create the "Page view model" in configurations with "CTZBanCardSearchRowSchema" code, "BankCard search row" name and select BaseSearchRowSchema as a parent

Step 3: Update the design of the schema and save.

Step 4: Find the SysModuleEdit record related to the BankCard section (for example using the query below):

SELECT
	*
FROM
	SysModuleEdit
WHERE
	ActionKindName = 'BankCard'

Step 5: update the value for the "SearchRowSchemaUId" column in the target objects record.

UPDATE
	SysModuleEdit
SET
	SearchRowSchemaUId = 'XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX'
WHERE
	Id
IN
	(
		SELECT
			Id
		FROM
			SysModuleEdit
		WHERE
			ActionKindName = 'BankCard'
	)

**Note: This Column's "SearchRowSchemaUId" value should be the UID of the newly created Page view model performed in Step 2.

UID can be obtained by using the below query,

select Id, UId, Name from SysSchema
where
Name like ('%CTZBanCardSearchRowSchema%')

Thanks for the guide!

Best regards,

Bhoobalan Palanivelu

Solem Khn

19:54 Oct 03, 2024

Interesting.

Will this work for Details as well, if we make a SearchRowSchema?

Show all comments
