How to get current record id and Schema UId within a list filter

Hello community!

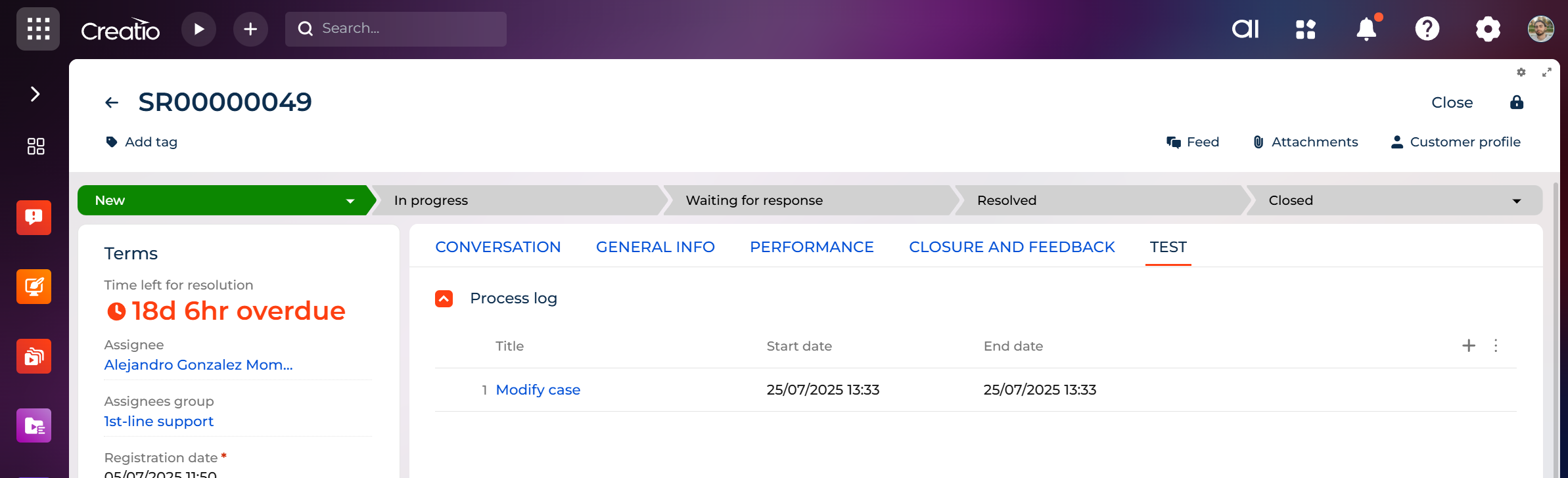

I'm creating a list in the Case object's form page to display processes logs that are connected to the current record, so that I get a detailed trace of executions for any case record. I have already created the list to display the information and it is something like this:

As you may see, for this example the list retrieves only 1 record because there was only 1 execution of the process "Modify case" that was connected to the current case. If I run another process connected to this case I will have something like this:



My problem is that the filter implemented for the list has the Schema UId and record id hardcoded, as I don't know how to retrieve than information dynamically inside the filter configuration. With those hardcoded values, the information is fetched and filtered correctly, but I can't seem to implement it in a generic way. I've tried to get the current record id with things like:

  • $Id
  • $PDS.Id
  • PDS.Id
  • ProcessLogListDS.Id

But none of them seem to work. This is the page code with the filter configuration:

define("Cases_FormPage", /**SCHEMA_DEPS*/[]/**SCHEMA_DEPS*/, function/**SCHEMA_ARGS*/()/**SCHEMA_ARGS*/ {
	return {
		viewConfigDiff: /**SCHEMA_VIEW_CONFIG_DIFF*/[
		    ...
		]/**SCHEMA_VIEW_CONFIG_DIFF*/,
		viewModelConfigDiff: /**SCHEMA_VIEW_MODEL_CONFIG_DIFF*/[
			{
				"operation": "merge",
				"path": [
					"attributes"
				],
				"values": {
					"ProcessLogList": {
						"isCollection": true,
						"modelConfig": {
							"path": "ProcessLogListDS",
							"filterAttributes": [
								{
									"loadOnChange": true,
									"name": "ProcessLogList_PredefinedFilter"
								}
							]
						},
						"viewModelConfig": {
							"attributes": {
								"ProcessLogListDS_Name": {
									"modelConfig": {
										"path": "ProcessLogListDS.Name"
									}
								},
								"ProcessLogListDS_Id": {
									"modelConfig": {
										"path": "ProcessLogListDS.Id"
									}
								}
							}
						}
					},
					"ProcessLogList_PredefinedFilter": {
						"value": {
							"items": {
								"masterRecordFilterWrapper": {
									"filterType": 6,
									"isEnabled": true,
									"logicalOperation": 0,
									"items": {
										"masterRecordFilter": {
											"filterType": 6,
											"isEnabled": true,
											"logicalOperation": 1,
											"items": {
												"entityFilter": {
													"filterType": 5,
													"comparisonType": 15,
													"isEnabled": true,
													"leftExpression": {
														"expressionType": 0,
														"columnPath": "[VwSysProcessEntity:SysProcess].Id"
													},
													"subFilters": {
														"filterType": 6,
														"isEnabled": true,
														"logicalOperation": 0,
														"items": {
															"EntityIdFilter": {
																"filterType": 1,
																"comparisonType": 3,
																"isEnabled": true,
																"leftExpression": {
																	"expressionType": 0,
																	"columnPath": "EntityId"
																},
																"rightExpression": {
																	"expressionType": 2,
																	"parameter": {
																		"dataValueType": 1,
																		"value": "47b777ca-4d1e-46f2-b2dc-22324202db2e" // This is the current Case record id for the example
																	}
																}
															},
															"SchemaUidFilter": {
																"filterType": 1,
																"comparisonType": 3,
																"isEnabled": true,
																"leftExpression": {
																	"expressionType": 0,
																	"columnPath": "SysSchema.UId"
																},
																"rightExpression": {
																	"expressionType": 2,
																	"parameter": {
																		"dataValueType": 1,
																		"value": "117d32f9-8275-4534-8411-1c66115ce9cd" // This is the Case Schema UId
																	}
																}
															}
														}
													}
												}
											}
										}
									}
								}
							},
							"logicalOperation": 0,
							"isEnabled": true,
							"filterType": 6,
							"rootSchemaName": "VwSysProcessLog"
						}
					}
				}
			}
		]/**SCHEMA_VIEW_MODEL_CONFIG_DIFF*/,
		modelConfigDiff: /**SCHEMA_MODEL_CONFIG_DIFF*/[
		    ...
		]/**SCHEMA_MODEL_CONFIG_DIFF*/,
		handlers: /**SCHEMA_HANDLERS*/[]/**SCHEMA_HANDLERS*/,
		converters: /**SCHEMA_CONVERTERS*/{}/**SCHEMA_CONVERTERS*/,
		validators: /**SCHEMA_VALIDATORS*/{}/**SCHEMA_VALIDATORS*/
	};
});



What the filter basically does is equivalent to the following OData query:

https://my-site.creatio.com/0/odata/VwSysProcessEntity?$filter=EntityId…
