Creatio availability verification in email Diagnostic Tool

Hello Creatio Team,

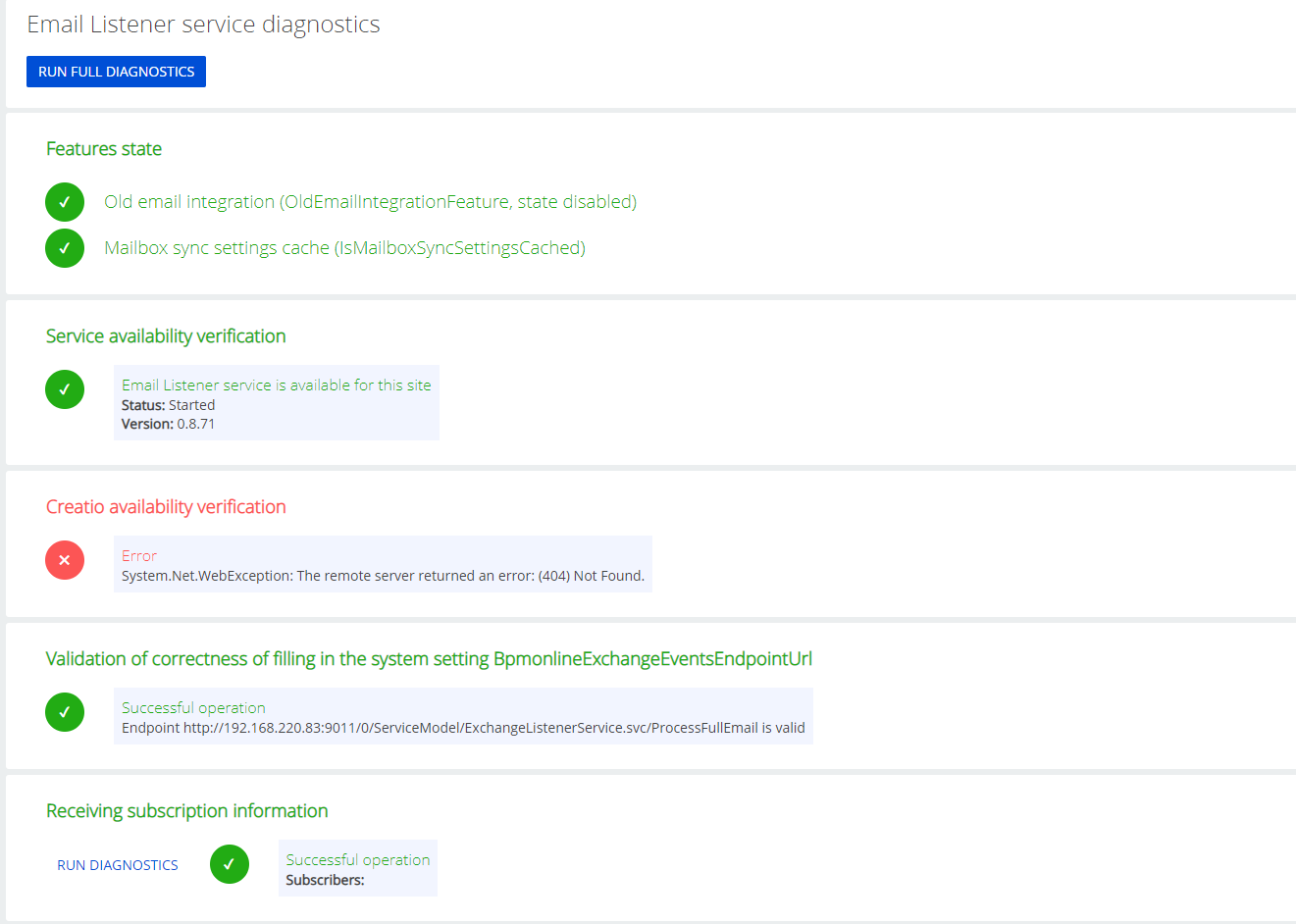

What is the Creatio availability verification refered to ? (printscreen below)

How can I fix it ? Is it some sort of extra Configuration? This has only happened in the 8.0.2 version.

Regards

Petrika

Like 2

Like

4 comments

Hello,



We see that you have also registered a case directly for our Support team and we are already working on it so we will update you on the problem in that case.



Regards,

Mira

Hi,



we also experience the same problem with an on-premise installation in version 8.0.3.



Is there already a solution available?



Thanks,

Robert

Robert Pordes,



We kindly recommend updating the Email Listener service to resolve the error of verification on the diagnostic page.

Could you provide us with the information on where you deployed for the Email Listener service (Kubernetes or Docker)?



Also you are adding gmail mailbox to the system and it require a few additional steps due to Google security policy.

There are 2 possible ways to add the mailbox to the system:

1. Enable 2-Step Verification for the mailbox, generate the App password from the appropriate Google account and add the mailbox to the system.

2. If you are using Gsuite, you can configure your own app on the Google's side for authorization through the Oauth.



1. Using the App password.

There is a need to perform the below steps:



1) Create a copy of the mailbox provider GMail

2) Disable the system setting with code "UseGoogleSharedApplication"

3) Created password for the external programs on the GMail's side as described here: https://support.google.com/accounts/answer/185833?hl=en

4) Use password from p.3 while adding the mailbox with the help of copy of the mailbox provider from p.1.

Login and password for the mailbox will be used inside Creatio system, not GMail.



2. Create your own program on the Gsuite side.

It's a bit more complex variant, as there will be a need to perform the corresponding setting both through Gsuite and in the app.



1. Please perform the setting on the Gsuite's side as described here:

https://academy.creatio.com/docs/user/setup_and_administration/base_integrations/google_mail_contacts_and_calendar/register_with_google_workspace/register_creatio_application_in_gsuite

In p.5 you need to choose "Gmail API" and complete the settings on receiving ClientId and Client Secret.

2. Populate the values for the mailbox provided with the received keys in "OAUTH2.0" type of authorization.



Best regards,

Bogdan

Hi Community!



We have solved this issue, by using the new version of the docker image called emaillistener (bpmonline/emaillistener Tags | Docker Hub)



This has to be changed in the docker-compose file for the ListenerAPI and ListenerWorker service.

Another change is the port mapping for the ListenerAPI. It has to be 10000:8080 instead of 10000:80.



Also, there is an error in the definitions.json file, which is used in the rabbitMQ container. The vhosts part has to look like this:

"vhosts": [
    {
      "name": "/"
    },
    {
      "name": "ELhost"
    }
  ]

I have created a case and Creatio promised to update the academy article accordingly.



BR,

Robert
