Hi community,

does anyone successfully upgraded a creatio instance hosted on docker container ?

Like 1

Like

1 comments

Hello,



At the moment, there is no official procedure for updating the application to the docker. You can find the relevant communication in this article on Creatio Academy.

We recommend deploying to the docker only for test environments.



Thank you.

Show all comments
Question

Hi community,

I would like to know if anyone has configured their development environment using a docker container.

I would like to speed up the configuration of a new development environment on a local laptop.

I can create a docker image and use clio to customize it as I want.

My concern is with the process of updating an environment contained in a docker image.

During the development phase a developer need to insert some sample data for testing, so when I upgrade the environment to a new version of creatio I would like to keep this data.



Any suggestions are appreciate

Like 3

Like

2 comments

Hi, you have two options for keeping data. First - configure your dev environment with persistent volume. In this case, you need to complete and follow the update procedure. But this is a long way. Alternate options (recommended) - save your development data in your packages. You can use a separate package for it. Deploy a clean new Creatio version and install your functional and test data packages on it.  This procedure provides flex scenarios, for example, a fast recovery development environment, easy deployment of new instances of the current version, and an easy way to try a new version without changing your actual environment.

thank you!

Show all comments

Hi,

I am trying to set up a creatio development environment with docker for the guided learning Development on Creatio Platform (November) workshop sessions starting next monday.

I have found the academy article https://academy.creatio.com/docs/user/on_site_deployment/application_se…

My problem now is that there is no "Terrasoft.WebHost.dll" in my creatio package.

Where can i find it? Is there another package i have to download?

I tried emailing support, but my message seems to be classified as spam, preventing the message from being sent. (I should still be able to receive mail without problems)

Could you please provide a way for me to have the correct files required for the guided learning workshop sessions.

Best regards

Alexander

Like 0

Like

1 comments

Hello,



As far as we can not help you with this question because we do not know what Creatio package you are using, this question can be resolved as a case for the Creatio Support Team.



If you having problems with sending an email, you can try to connect with us by calling:





USA: +1 617 765 7997

UK: +44 20 3384 0040

Australia: +61 261 452 888

Ukraine:
+38 (044) 363-31-33



Alternatively, you can send your question through Customer Portal.



Thank you.



Show all comments
Question

hi!

I see that the Appserver is possible to be run in a container.

Did anyone try to make a docker compose file for the whole Creatio setup?

Like 1

Like

7 comments

Good day,



Unfortunately, Creatio support does not have a ready-to-install compose file nor do we have documented instructions to create one.



I will create a request for our developers to create a detailed guide for this task and add it to our Academy.



Thank you.

Hi Artem,

 Any update regarding the compose file , kindly we try to scale our infra machines

Ali Sami,



We have checked this and it has not been implemented yet, but I will mention your inquiry in the registered idea to increase its priority.

Actually it's very simple to run Creatio in Docker. I've wrote a ~30 lines of Docker compose that runs just fine.

The actual pain is Upgrade. If your DB worked with one App version then just starting it with another App version of Creatio simply fails. That's because you need to run "magic" exe that does downloading, upgrading App and DB. 🤮

ildar,

Hi, can you share the Docker Compose?, please to try?

ildar,

Thanks :-)

Show all comments

Hi there!

I'm trying to run clio in Docker on Ubuntu Server 20.04.

Following instructions provided here - https://github.com/Advance-Technologies-Foundation/clio#installation-an…, I have downloaded the source code, and executed "docker build -f ./install/Dockerfile -t clio ."

But I got unexpected output, and, seems, clio container did not even started:





DEPRECATED: The legacy builder is deprecated and will be removed in a future release.
            Install the buildx component to build images with BuildKit:
            https://docs.docker.com/go/buildx/

Sending build context to Docker daemon  2.899MB
Step 1/13 : FROM mcr.microsoft.com/dotnet/sdk:3.1 as base
 ---> 1e8401d05dea
Step 2/13 : WORKDIR /app
 ---> Using cache
 ---> 18f52a48e0a5
Step 3/13 : FROM mcr.microsoft.com/dotnet/sdk:3.1 AS build
 ---> 1e8401d05dea
Step 4/13 : WORKDIR /app
 ---> Using cache
 ---> 18f52a48e0a5
Step 5/13 : COPY clio clio
 ---> Using cache
 ---> fa0fb42a25ec
Step 6/13 : COPY clio.sln clio.sln
 ---> Using cache
 ---> d8527c9fcc93
Step 7/13 : WORKDIR /app/clio
 ---> Using cache
 ---> f4ae3f90ec62
Step 8/13 : RUN dotnet publish -c Release -o /app/published
 ---> Running in 432ba7ef38dd
Microsoft (R) Build Engine version 16.7.3+2f374e28e for .NET
Copyright (C) Microsoft Corporation. All rights reserved.

  Determining projects to restore...
/app/clio/clio.csproj : error NU1202: Package DocumentFormat.OpenXmlSDK 2.0.0 is not compatible with net6.0 (.NETCoreApp,Version=v6.0). Package DocumentFormat.OpenXmlSDK 2.0.0 supports: net35 (.NETFramework,Version=v3.5)
  Failed to restore /app/clio/clio.csproj (in 6.4 sec).
The command '/bin/sh -c dotnet publish -c Release -o /app/published' returned a non-zero code: 1



Like 1

Like

2 comments

Anybody, please, help!

Hi!



Based on the issue you are experiencing with running Clio Docker on Ubuntu 20.04, it seems to be related to compatibility or configuration problems. To address this, I would recommend following these steps:

  1. Make sure you have met the minimum system requirements for running Clio Docker on Ubuntu 20.04. Check the official documentation for any specific prerequisites.

  2. Double-check that you have correctly followed the installation steps outlined in the documentation or guide provided by Clio.

  3. If the issue persists, I suggest visiting the Clio GitHub repository for more information and possible solutions. You can access the repository at the following link: GitHub Repository. Please search for any existing issues that match your problem or consider opening a new issue to report your specific problem. GitHub representatives and the community can provide further assistance and guidance in troubleshooting the issue.

Remember to provide as much detail as possible when reporting the issue, including any error messages or logs you have encountered. This will help the GitHub community understand and address your problem more effectively.



I hope this helps.

Show all comments

Hi,



I am trying to set up a creatio development environment with docker and found the academy article https://academy.creatio.com/docs/user/on_site_deployment/net_core_application_server_on_linux/installation/deploy_the_creatio_net_core_application_on_linux#title-247-4



My problem now is that there is no "Terrasoft.WebHost.dll" in my creatio package.

Where can i find it? Is there another package i have to download?



Best regards,

Oliver

Like 1

Like

4 comments

Hello Oliver,



Please contact our support team to get the correct installation files for the local environment.



Best regards,

Bogdan

Thanks Bogdan,



I just did it



Best regards,

Oliver



JUAN PABLO OSUNA DE LEON,



You can also contact the support team directly and specify your issue so we could fix it.

Hello!



As was already mentioned above, please contact the support team directly.



We will provide you with the correct installation files for the local environment.

Show all comments

Hi Community,



To test the HAProxy, I've installed two Creatio Applications on my virtual machine, using Docker. Each instance can be access through a specific container address.



I've successfully configured HAProxy by following this guide (https://academy.creatio.com/docs/user/on_site_deployment/deployment_additional_setup/application_server_web_farm_shortcut/application_server_web_farm). If I stop one of the containers, the HAProxy sends the requests to the other container, as expected. However, when both containers are up and running, I cannot pass through the login page.



I need help to understand:

What is the cause of such behaviour?

What are the possible solutions to solve this problem?

Will this problem occur if each instance is in a separated machine?



Note: I’ve notice on other tests that when I have two Creatio instances on the same machine I can only be logged one at the time. Maybe this is related to the problem.



Best Regards,

Pedro Pinheiro

Like 1

Like

3 comments

I think I’ve managed to solve this problem. In some applications we need to ensure that the user must be connected to the same server during the whole session. So, to allow this I changed the Load Balance Algorithm to source.

frontend front
     maxconn 10000
     #Using these ports for binding
     bind *:80
     bind *:443
     #Convert cookies to be secure
     rspirep ^(set-cookie:.*)  \1;\ Secure
     default_backend creatio

backend creatio
     #set balance type
     balance source
     server node_1 nodeserver1:80 check weight 2
     server node_2 nodeserver2:80 check weight 1

The problem was solved, but I don't know if this is the correct way to solve it. I would like to hear some feedback. Thank you.



Best Regards,

Pedro Pinheiro

Hi Pedro,



We generally recommend using round-robin, as it's optimal in most cases, but the "source" algorithm is working as well.

As for why the log-in issue happened: it's hard to say definitely, but on of the options is if the machinekey is different on different nodes - it won't let you log in.



Best regards,

Yurii.

Hi Yurii Sokil,



I moved this infrastructure to a Linux server. In this server I have the same two instances but with different ports instead of docker containers. How can I generate this "machinekey”?



The documentation only explains how to generate them on windows servers, through  PowerShell.



Best Regards,

Pedro Pinheiro

Show all comments

Hi community,



I followed the documentation found here : https://academy.creatio.com/docs/user/on_site_deployment/containerized_…



Everything worked fine until this curl request :



curl -v -X POST -d '{"templateName": "[TEMPLATE_NAME]"}' -H "Content-Type: application/json" http://[SERVER2_IP_ADDRESS]:81/sites/[SITE_NAME]/search

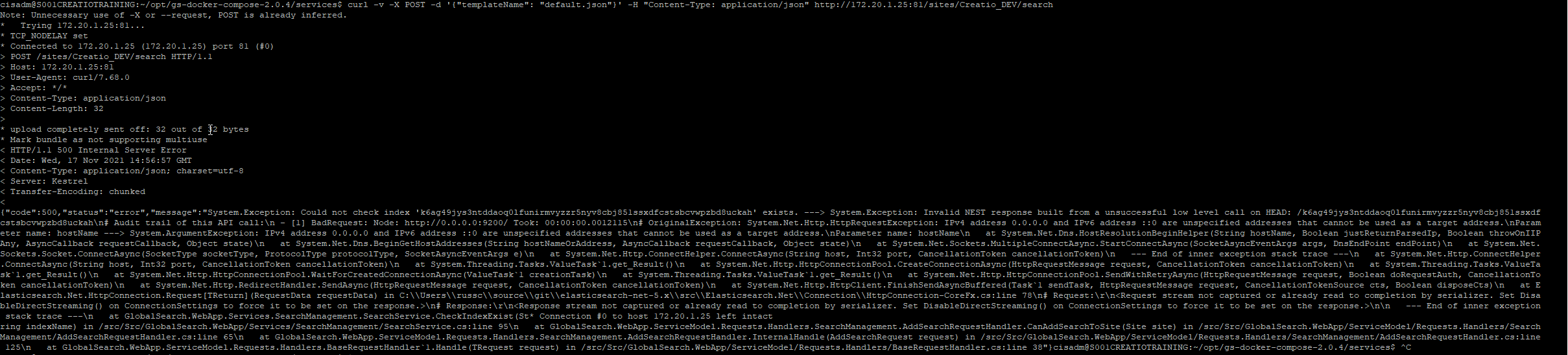

I get the error found in the attached files.

I saw a post in Russian where they advised to re-install all the components and retry. I did it but it didn't worked. All my containers are up and work perfectly.



Do you have any idea on how to solve this issue ?



Best regards,

Jonathan





Like 0

Like

1 comments

Hi Jonathan,



Judging by the error message, the Global Search service cannot access ElasticSearch server.

You need to specify the Ip of the server where your ElasticSearch is deployed in env file in the folder [services]



Best regards,

Yurii.



Show all comments
