Question

Problem of Start Up (0x80070002)

tgonzalez

14:21 Feb 11, 2019

Hi! I have problem when I try of configurate BPMonline on local, give me next error:

IIS Web Core

MapRequestHandler

Cod: 0x80070002

This error show it when I try of introduce user and password. What it happens?

Greetings

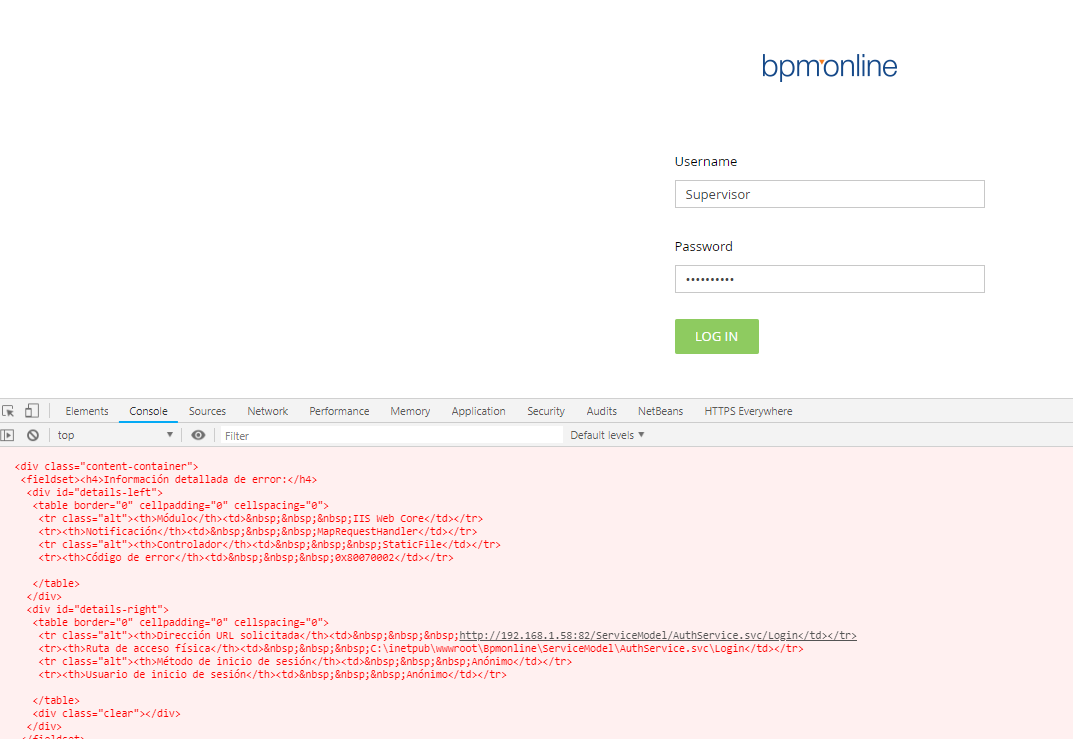

PD: this error show it on console (F12), with code HTML

9 comments

Matt Watts

14:33 Feb 11, 2019

Hello.

Any chance you can send the screenshot of the error?

Matt

tgonzalez

14:37 Feb 11, 2019

all-combined.js:7 Error while sending request

   response status: 404 (Not Found)

   request url: http://192.168.1.58:82/ServiceModel/AuthService.svc/Login

   method: undefined

   request data: {"UserName":"Supervisor","UserPassword":"Supervisor","TimeZoneOffset":-60}

log @ all-combined.js:7

loginModule.js:711 Uncaught i

core-base.js:681 user: Demo_ru/1B4B9325-66CC-DF11-9B2A-001D60E938C6

file: http://192.168.1.58:82//core/cea18c1437c88307af4598dcbd5db3b0/Terrasoft…

line: 711

column: 7

message: Uncaught Terrasoft.UnauthorizedException: <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head>

<title>Error detallado de IIS 10.0 - 404.0 - Not Found</title>

<style type="text/css">



</style>

</head>

<body>

<div id="content">

<div class="content-container">

<h3>Error HTTP 404.0 - Not Found</h3>

<h4>Se ha quitado el recurso que está buscando, se le ha cambiado el nombre o no está disponible en estos momentos.</h4>

</div>

<div class="content-container">

<fieldset><h4>Causas más probables:</h4>

<ul>    <li>El directorio o archivo especificado no existe en el servidor web.</li>    <li>La dirección URL contiene un error tipográfico.</li>    <li>Un filtro o módulo personalizado, como URLScan, restringe el acceso al archivo.</li> </ul>

</fieldset>

</div>

<div class="content-container">

<fieldset><h4>Qué puede intentar:</h4>

<ul>    <li>Cree el contenido en el servidor web.</li>    <li>Revise la dirección URL del explorador.</li>    <li>Cree una regla para hacer un seguimiento de las solicitudes con error para este código de estado HTTP y ver qué módulo llama a SetStatus. Para obtener más información sobre la creación de una regla de seguimiento para solicitudes con error, haga clic <a href="http://go.microsoft.com/fwlink/?LinkID=66439">aquí</a>. </li> </ul>

</fieldset>

</div>

<div class="content-container">

<fieldset><h4>Información detallada de error:</h4>

<div id="details-left">

<table border="0" cellpadding="0" cellspacing="0">

<tr class="alt"><th>Módulo</th><td>   IIS Web Core</td></tr>

<tr><th>Notificación</th><td>   MapRequestHandler</td></tr>

<tr class="alt"><th>Controlador</th><td>   StaticFile</td></tr>

<tr><th>Código de error</th><td>   0x80070002</td></tr>

</table>

</div>

<div id="details-right">

<table border="0" cellpadding="0" cellspacing="0">

<tr class="alt"><th>Dirección URL solicitada</th><td>   http://192.168.1.58:82/ServiceModel/AuthService.svc/Login</td></tr>

<tr><th>Ruta de acceso física</th><td>   C:\inetpub\wwwroot\Bpmonline\ServiceModel\AuthService.svc\Login</td></tr>

<tr class="alt"><th>Método de inicio de sesión</th><td>   Anónimo</td></tr>

<tr><th>Usuario de inicio de sesión</th><td>   Anónimo</td></tr>

</table>

<div class="clear"></div>

</div>

</fieldset>

</div>

<div class="content-container">

<fieldset><h4>Más información:</h4>

Este error significa que el archivo o directorio no existe en el servidor. Cree un archivo o directorio y vuelva a realizar la solicitud.

<p><a href="https://go.microsoft.com/fwlink/?LinkID=62293&IIS70Error=404,0,0x80…">Ver más información »</a></p>

</fieldset>

</div>

</div>

</body>

</html>

date: Mon Feb 11 2019 13:34:24 GMT+0100 (hora estándar de Europa central)

stack: undefined

Matt Watts

14:52 Feb 11, 2019

I have translated the error messages you have sent us and they indicate that the resource you are looking for is not available. This means that the database cannot be located. Please review your connectionstrings file.

Please read more below:

https://academy.bpmonline.com/documents/administration/7-13/installing-…

Best regards,

Matt

tgonzalez

15:10 Feb 11, 2019

It's possible known what line I am fail, or avaible mode debugger or someting

tgonzalez

15:16 Feb 11, 2019

Matt Watts

15:59 Feb 11, 2019

tgonzalez,

Not quite. You just need to make sure you have specified the correct path and db name in the file.

Matt

tgonzalez

16:18 Feb 11, 2019

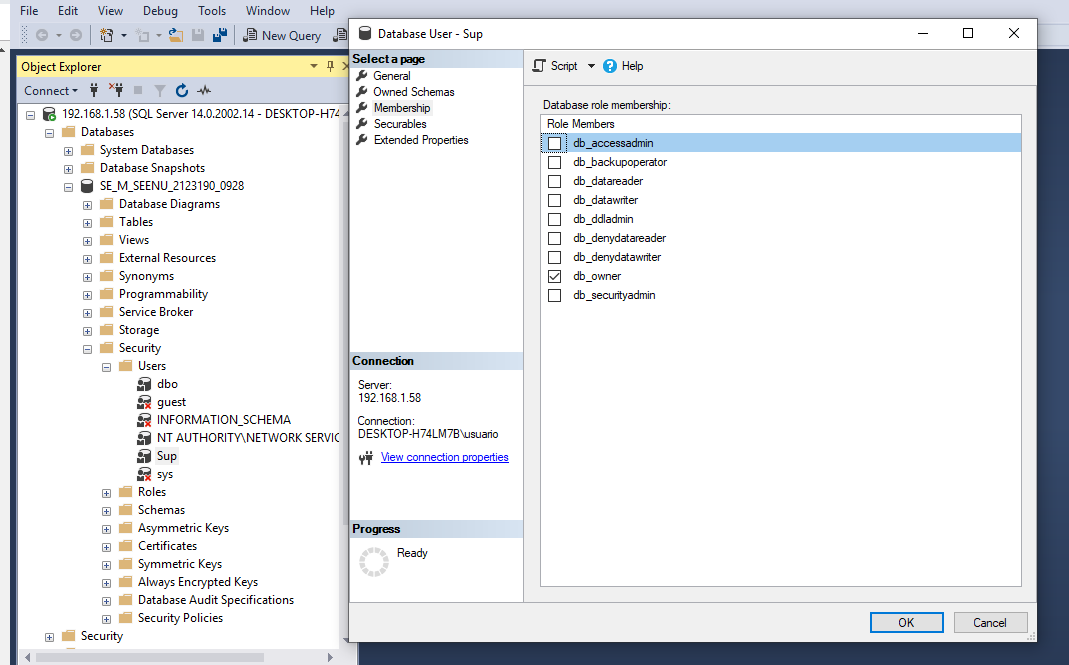

Dabase it's fine defined, I think that can be problem of permissions what permission must have user of Microsoft SQL server

tgonzalez

18:33 Feb 11, 2019

I had trying with other version an give me this error

Description: The application attempted to perform an operation not allowed by the security policy. To grant this application the required permission please contact your system administrator or change the application's trust level in the configuration file.

Exception Details: System.Data.SqlClient.SqlException: Error de inicio de sesión del usuario 'IIS APPPOOL\bpmonline'.

Source Error:

An unhandled exception was generated during the execution of the current web request. Information regarding the origin and location of the exception can be identified using the exception stack trace below.

Stack Trace:

[SqlException (0x80131904): Error de inicio de sesión del usuario 'IIS APPPOOL\bpmonline'.]

System.Data.SqlClient.SqlInternalConnectionTds..ctor(DbConnectionPoolIdentity identity, SqlConnectionString connectionOptions, SqlCredential credential, Object providerInfo, String newPassword, SecureString newSecurePassword, Boolean redirectedUserInstance, SqlConnectionString userConnectionOptions, SessionData reconnectSessionData, DbConnectionPool pool, String accessToken, Boolean applyTransientFaultHandling, SqlAuthenticationProviderManager sqlAuthProviderManager) +1480

System.Data.SqlClient.SqlConnectionFactory.CreateConnection(DbConnectionOptions options, DbConnectionPoolKey poolKey, Object poolGroupProviderInfo, DbConnectionPool pool, DbConnection owningConnection, DbConnectionOptions userOptions) +1149

System.Data.ProviderBase.DbConnectionFactory.CreatePooledConnection(DbConnectionPool pool, DbConnection owningObject, DbConnectionOptions options, DbConnectionPoolKey poolKey, DbConnectionOptions userOptions) +70

System.Data.ProviderBase.DbConnectionPool.CreateObject(DbConnection owningObject, DbConnectionOptions userOptions, DbConnectionInternal oldConnection) +979

System.Data.ProviderBase.DbConnectionPool.UserCreateRequest(DbConnection owningObject, DbConnectionOptions userOptions, DbConnectionInternal oldConnection) +103

System.Data.ProviderBase.DbConnectionPool.TryGetConnection(DbConnection owningObject, UInt32 waitForMultipleObjectsTimeout, Boolean allowCreate, Boolean onlyOneCheckConnection, DbConnectionOptions userOptions, DbConnectionInternal& connection) +1595

System.Data.ProviderBase.DbConnectionPool.TryGetConnection(DbConnection owningObject, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal& connection) +159

System.Data.ProviderBase.DbConnectionFactory.TryGetConnection(DbConnection owningConnection, TaskCompletionSource`1 retry, DbConnectionOptions userOptions, DbConnectionInternal oldConnection, DbConnectionInternal& connection) +382

System.Data.ProviderBase.DbConnectionInternal.TryOpenConnectionInternal(DbConnection outerConnection, DbConnectionFactory connectionFactory, TaskCompletionSource`1 retry, DbConnectionOptions userOptions) +307

System.Data.SqlClient.SqlConnection.TryOpenInner(TaskCompletionSource`1 retry) +198

System.Data.SqlClient.SqlConnection.TryOpen(TaskCompletionSource`1 retry) +422

System.Data.SqlClient.SqlConnection.Open() +199

Terrasoft.Core.DB.DBExecutor.<get_DBConnection>b__14_0() +22

Polly.<>c__DisplayClass109_0.<Execute>b__0(Context ctx, CancellationToken ct) +23

Polly.<>c__DisplayClass103_0.<NoOp>b__1(Context ctx, CancellationToken ct) +18

Polly.NoOp.NoOpEngine.Implementation(Func`3 action, Context context, CancellationToken cancellationToken) +17

Polly.<>c.<NoOp>b__103_0(Action`2 action, Context context, CancellationToken cancellationToken) +105

Polly.Policy.Execute(Action`2 action, Context context, CancellationToken cancellationToken) +70

Polly.Policy.Execute(Action action) +119

Terrasoft.Core.DB.DBExecutor.get_DBConnection() +238

Terrasoft.Core.DB.DBExecutor.PingDB(UserConnection userConnection) +46

[SecurityException: System login error. Error has been recorded in system log of the server. Please contact your system administrator.]

Terrasoft.Core.DB.DBExecutor.PingDB(UserConnection userConnection) +239

Terrasoft.Core.SystemUserConnection.InitializeCurrentUser(String userName, TimeZoneInfo timeZone, String clientIP, String agent, Boolean needRegisterSessionStart) +28

Terrasoft.Core.AppConnection.InitializeSystemUserConnection(ConfigurationSection schemaManagerProviderConfigurationSection) +172

Terrasoft.Core.AppConnection.Initialize(ConfigurationSectionGroup appConfigurationSectionGroup) +550

Terrasoft.WebApp.Loader.Global.InitializeAppConnection() +513

Dennis Hudson

15:13 Feb 18, 2019

tgonzalez,

You would need to check the file ConnectionStrings.config and check the authorization type. If windows authentication is used the parameter Integrated Security=SSPI should be specified and Identity=ApplicationPoolIdentity or domain user data should be in the the application pool (https://prnt.sc/mmoea5). If sql authentication instead of upper mentioned parameter user's login and password should be specified which can be used for authorization in SQL Management Studio:

User id=xxx; password=xxx; and LocalSystem in the application pool (https://prnt.sc/mmofx2).

Also please make sure all required windows components are installed.

here is the academy pagein on-site installation:

https://academy.bpmonline.com/documents/administration/7-13/deploying-b…

Best regards,

Dennis
