Custom editing page for details Attachments (Files)

bpm'online community,

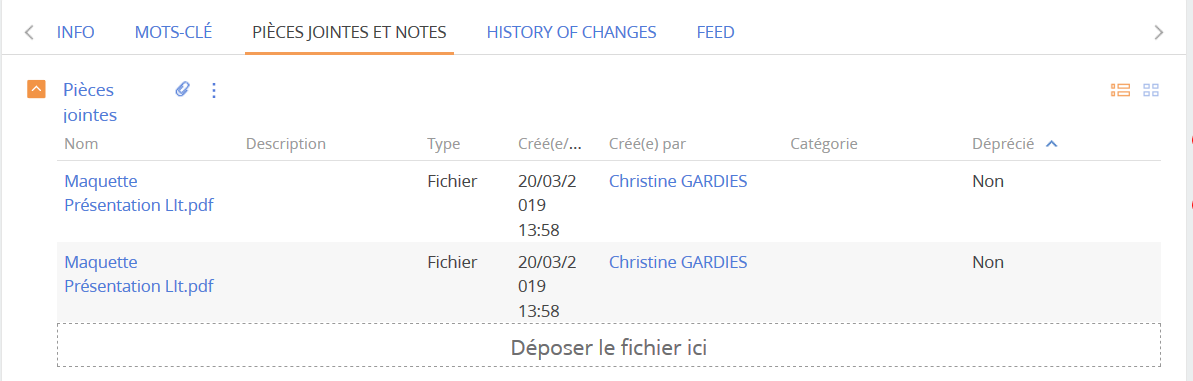

How to create a custom editing page for details Files?

I need to change the value of custom lookup depending on the type of document.

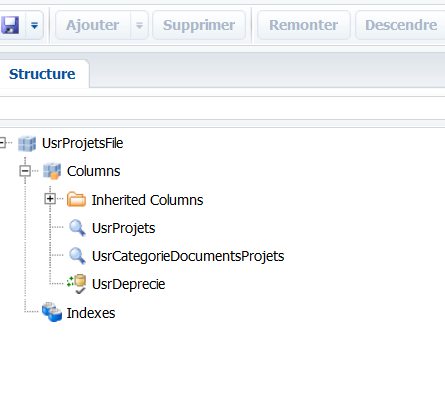

I've already added all the necessary fields to the object "UsrProjetsFile".

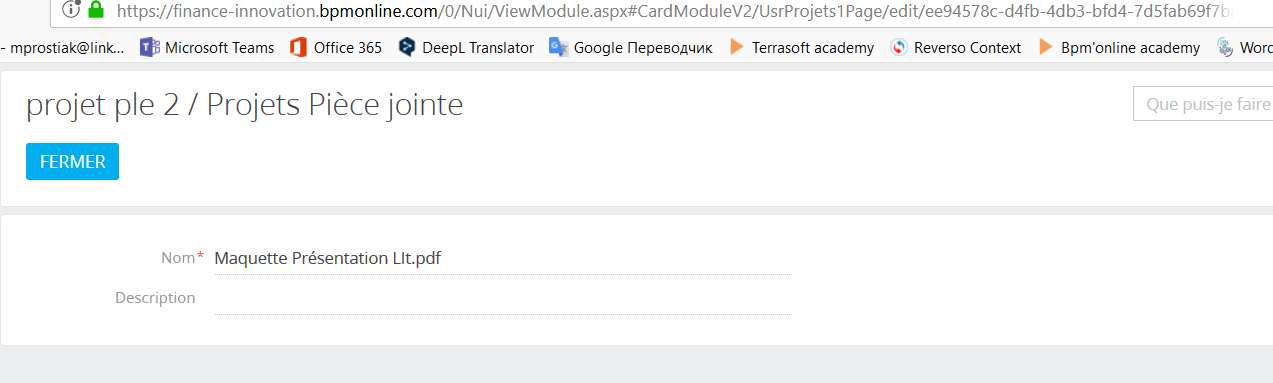

I don't know which scheme to change to insert the fields into the editing page, which is opened by double-clicking on the details record File.

Could you please help with this issue.


Like 0



Hi Mariia,


Did you figure out on how to change this?

I am looking for the solution as well.


Thank you in advance!



Kind regards,


Hello Yosef,


Yes, we have found a solution. It was simple for our case.

Firstly, you need to add the necessary column to the [Section]File object, where [Section] is the name of your section in which the detail files are placed (In my example the column with type lookup names "Nature").

Then you create a "Replacing Client Module" where the parent schema is LinkPageV2 ( UIv2 ).

And then you create your column in the diff part:

define("LinkPageV2", ["terrasoft", "BusinessRuleModule", "ext-base", "sandbox", "ConfigurationConstants"],
function(Terrasoft, BusinessRuleModule, Ext, sandbox, ConfigurationConstants) {
	return {
		methods: {},
		diff: /**SCHEMA_DIFF*/[
				"operation": "insert",
				"parentName": "LinkPageGeneralBlock",
				"propertyName": "items",
				"name": "Nature",
				"values": {
					"bindTo": "Nature",
					"layout": {
						"column": 12,
						"row": 0,
						"colSpan": 12

That's it)


Best regards,
