Can anyone help on this How to attach file inside the detail with editable list.
Hi Team,

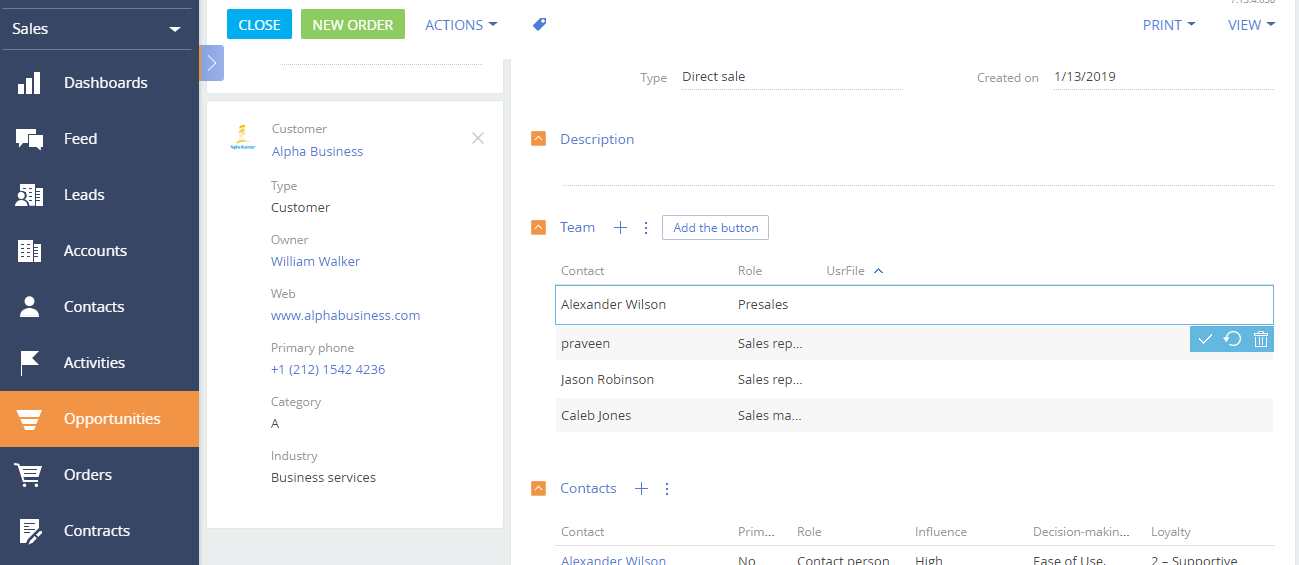

i am trying to attach files inside the detail by using button. When i am trying to attach the file it was attaching but in detail it was not showing that file.
Here the steps i was fallowed:
I am using OpportunityTeamDetailV2New

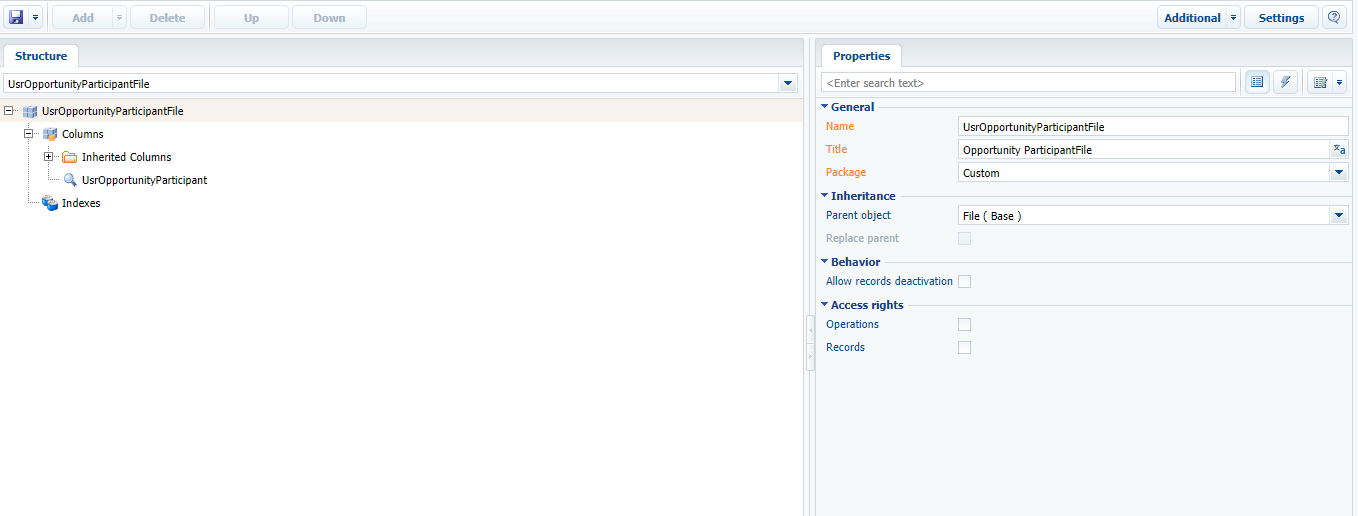

1. Created an object to store files. It should be inherited from object File. Also it has to have a link (lookup) to the main object. In my case, main object is OpportunityParticipant and object to store files is UsrOpportunityParticipantFile.

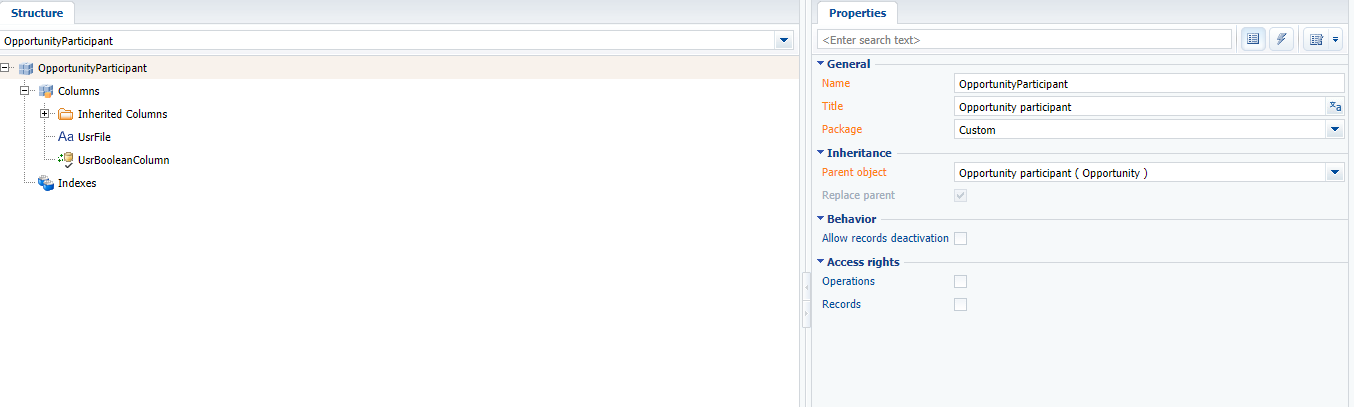

I was Added a text column to the main object, which would store the file name from File object.

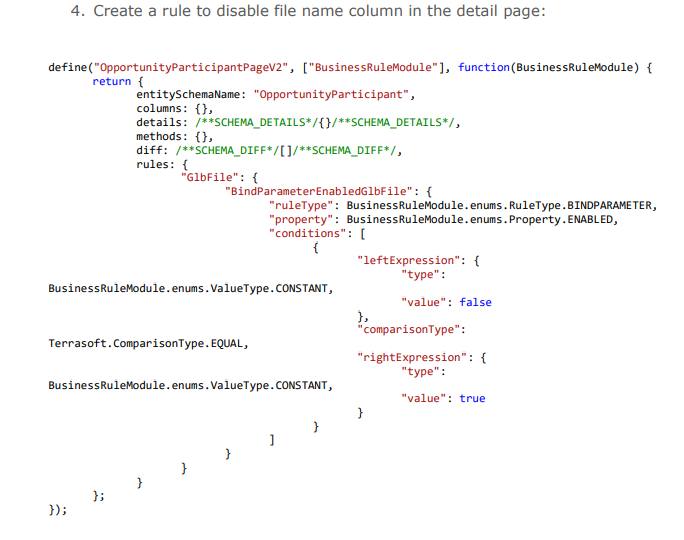

Then i was Create a rule to disable file name column in the detail page

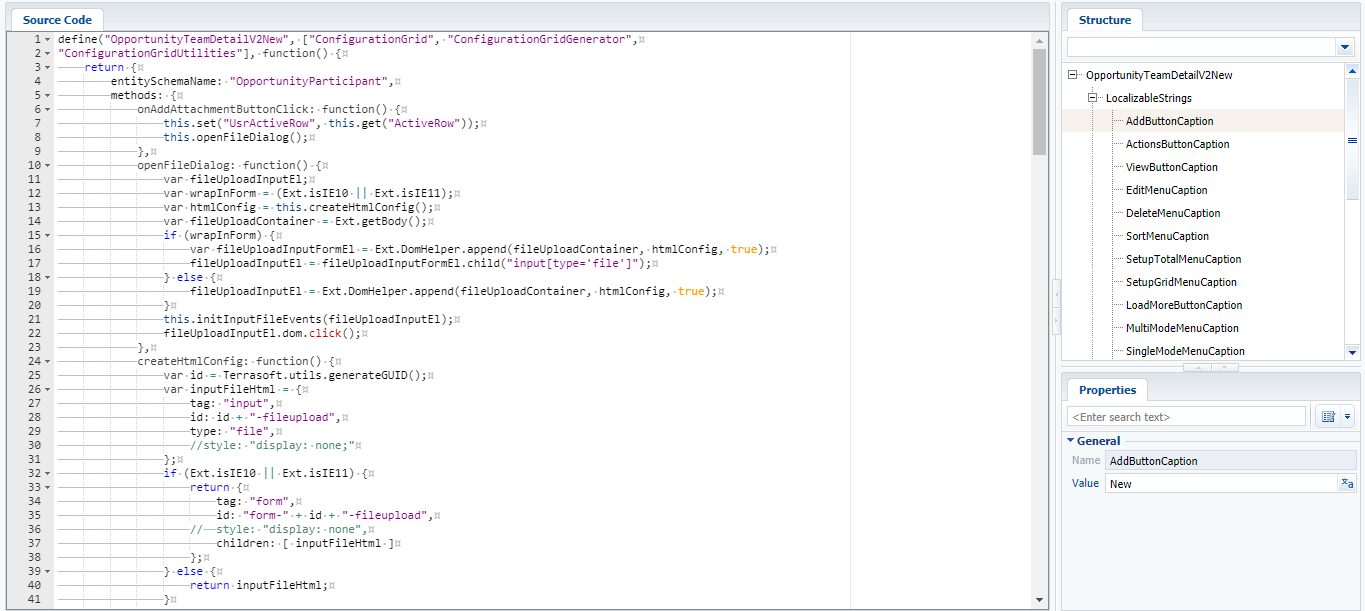

For Add a button to upload file and processing logic to the detail schema (Also I have a code to make detail with editable list). This code is attached as OpportunityTeamDetailV2New.txt
define("OpportunityTeamDetailV2New", ["ConfigurationGrid", "ConfigurationGridGenerator",
"ConfigurationGridUtilities"], function() {
return {
entitySchemaName: "OpportunityParticipant",
methods: {
onAddAttachmentButtonClick: function() {
this.set("UsrActiveRow", this.get("ActiveRow"));
this.openFileDialog();
},
openFileDialog: function() {
var fileUploadInputEl;
var wrapInForm = (Ext.isIE10 || Ext.isIE11);
var htmlConfig = this.createHtmlConfig();
var fileUploadContainer = Ext.getBody();
if (wrapInForm) {
var fileUploadInputFormEl = Ext.DomHelper.append(fileUploadContainer, htmlConfig, true);
fileUploadInputEl = fileUploadInputFormEl.child("input[type='file']");
} else {
fileUploadInputEl = Ext.DomHelper.append(fileUploadContainer, htmlConfig, true);
}
this.initInputFileEvents(fileUploadInputEl);
fileUploadInputEl.dom.click();
},
createHtmlConfig: function() {
var id = Terrasoft.utils.generateGUID();
var inputFileHtml = {
tag: "input",
id: id + "-fileupload",
type: "file",
//style: "display: none;"
};
if (Ext.isIE10 || Ext.isIE11) {
return {
tag: "form",
id: "form-" + id + "-fileupload",
// style: "display: none",
children: [ inputFileHtml ]
};
} else {
return inputFileHtml;
}
},
initInputFileEvents: function(fileUploadInputEl) {
var self = this;
this.on("click", this.onInputFileClick, this);
if (fileUploadInputEl.dom.addEventListener) {
fileUploadInputEl.dom.addEventListener("change", function(event) {
self.onInputFileChange(event, self);
}, false);
} else if (fileUploadInputEl.dom.attachEvent) {
fileUploadInputEl.dom.attachEvent("onchange", function(event) {
self.onInputFileChange(event, self);
});
} else {
fileUploadInputEl.on("change", this.onInputFileChange, this);
}
},
onInputFileChange: function(event) {
Ext.EventManager.stopEvent(event);
var files = FileAPI.getFiles(event);
if (files.length <= 0) {
return;
}
var config = this.getUploadConfig(files);
this.uploadFile(config);
var value = files[0].name;
this.set("UsrFile",value);
},
getUploadConfig: function(files) {
//debugger;
var entitySchemaName = this.entitySchema.name;
var entitySchemaRecordId = this.get("UsrActiveRow");
var entityFileSchemaName = "Usr" + entitySchemaName + "File";
var parentEntitySchemaColumnName = "Usr" + entitySchemaName;
//window.alert(files);
return {
scope: this,
onUpload: this.onUpload,
onComplete: this.onComplete,
onFileComplete: this.onFileComplete,
entitySchemaName: entityFileSchemaName,
columnName: "Data",
//columnName: "UsrOpportunityParticipantFile",
parentColumnName: parentEntitySchemaColumnName,
parentColumnValue: entitySchemaRecordId,
files: files,
isChunkedUpload: true
};
},
uploadFile: function(config) {
if (config) {
this.Terrasoft.ConfigurationFileApi.upload(config);
}
},
onUpload: function() {
this.set("MaskId", Terrasoft.Mask.show({timeout: 0}));
},
onComplete: function() {
Terrasoft.Mask.hide(this.get("MaskId"));
},
onFileComplete: function(error, xhr, file) {
if (error) {
this.showInformationDialog(error);
} else {
window.console.log(xhr);
//window.alert(file);
// this.loadGridDataRecord(this.getActiveRow().get("Id"), Terrasoft.emptyFn, this);
this.reloadGridData();
}
},
},
attributes: {
// Determines whether the editing is enabled.
"IsEditable": {
// Data type — logic.
dataValueType: Terrasoft.DataValueType.BOOLEAN,
// Attribute type — virtual column of the view model.
type: Terrasoft.ViewModelColumnType.VIRTUAL_COLUMN,
// Set value.
value: true
},
"UsrFile": {
dataValueType: this.Terrasoft.DataValueType.TEXT,
type: this.Terrasoft.ViewModelColumnType.ENTITY_COLUMN,
"value": ""
},
},
mixins: {
ConfigurationGridUtilities: "Terrasoft.ConfigurationGridUtilities"
},
diff: /**SCHEMA_DIFF*/[
{
// Operation type — merging.
"operation": "merge",
// Name of the schema element, with which the action is performed.
"name": "DataGrid",
// Object, whose properties will be joined with the schema element properties.
"values": {
// Class name
"className": "Terrasoft.ConfigurationGrid",
// View generator must generate only part of view.
"generator": "ConfigurationGridGenerator.generatePartial",
// Binding the edit elements configuration obtaining event
// of the active page to handler method.
"generateControlsConfig": {"bindTo": "generateActiveRowControlsConfig"},
// Binding the active record changing event to handler method.
"changeRow": {"bindTo": "changeRow"},
// Binding the record selection cancellation event to handler method.
"unSelectRow": {"bindTo": "unSelectRow"},
// Binding of the list click event to handler method.
"onGridClick": {"bindTo": "onGridClick"},
// Actions performed with active record.
"activeRowActions": [
// [Save] action setup.
{
// Class name of the control element, with which the action is connected.
"className": "Terrasoft.Button",
// Display style — transparent button.
"style": this.Terrasoft.controls.ButtonEnums.style.TRANSPARENT,
// Tag.
"tag": "save",
// Marker value.
"markerValue": "save",
// Binding button image.
"imageConfig": {"bindTo": "Resources.Images.SaveIcon"}
},
// [Cancel] action setup.
{
"className": "Terrasoft.Button",
"style": this.Terrasoft.controls.ButtonEnums.style.TRANSPARENT,
"tag": "cancel",
"markerValue": "cancel",
"imageConfig": {"bindTo": "Resources.Images.CancelIcon"}
},
// [Delete] action setup.
{
"className": "Terrasoft.Button",
"style": this.Terrasoft.controls.ButtonEnums.style.TRANSPARENT,
"tag": "remove",
"markerValue": "remove",
"imageConfig": {"bindTo": "Resources.Images.RemoveIcon"}
}
],
// Binding to method that initializes subscription to events
// of clicking buttons in the active row.
"initActiveRowKeyMap": {"bindTo": "initActiveRowKeyMap"},
// Binding the active record action completion event to handler method.
"activeRowAction": {"bindTo": "onActiveRowAction"},
// Identifies whether multiple records can be selected.
"multiSelect": false
}
},
{
"operation": "insert",
"name": "AddAttachmentButton",
"parentName": "Detail",
"propertyName": "tools",
"values": {
"itemType": Terrasoft.ViewItemType.BUTTON,
"caption": {"bindTo": "Resources.Strings.AddAttachmentButtonCaption"},
"click": {"bindTo": "onAddAttachmentButtonClick"},
"style": Terrasoft.controls.ButtonEnums.style.TRANSPARENT,
"enabled": {"bindTo": "isAnySelected"}
}
}
]/**SCHEMA_DIFF*/
};
});
Like
It's hard to say what exactly wrong. Please investigate how the out-of-the-box "Attachment and Notes" detail works. Find the difference and debug it.
