Hello,
I would like to locate the "CONTACT SECTION' tile in the general tab of the portal section.

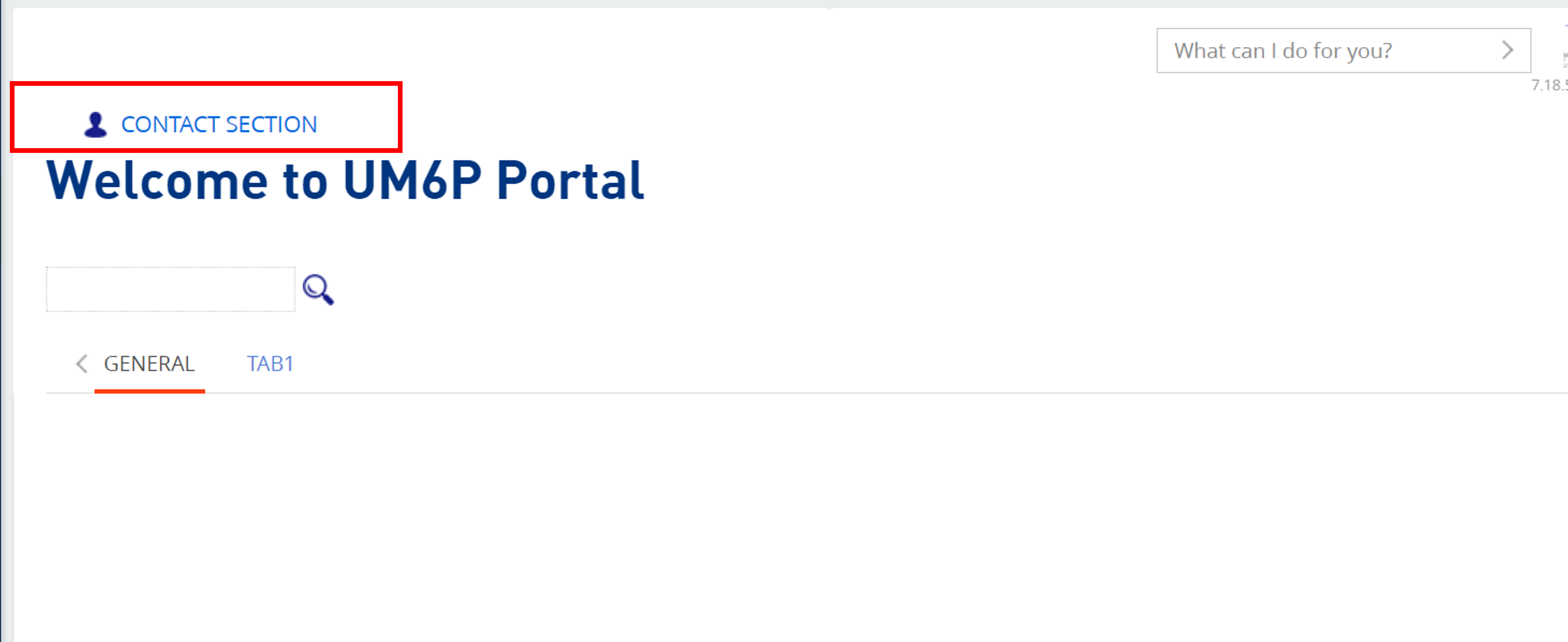

Please refer to the screenshot:
Below is my code:
-
diff: /**SCHEMA_DIFF*/[ { "operation": "insert", "name": "Um6pTabsContainer", "parentName": "ActionButtonsContainer", "propertyName": "items", "values": { "className": "Terrasoft.LazyContainer", "itemType": Terrasoft.ViewItemType.CONTAINER, "visible": {"bindTo": "getTabsContainerVisible"}, "items": [] } }, { "operation": "insert", "name": "Tabs", "parentName": "Um6pTabsContainer", "propertyName": "items", "values": { "itemType": Terrasoft.ViewItemType.TAB_PANEL, "activeTabName": "GeneralInfoTab", "classes": {"wrapClass": ["tab-panel-margin-bottom-portal"]}, "collection": {"bindTo": "TabsCollection"}, "tabs": [] } }, { "operation": "insert", "name": "GeneralInfoTab", "values": { "caption": { "bindTo": "Resources.Strings.GeneralInfoTabCaption" }, "visible":true, "items": [] }, "parentName": "Tabs", "propertyName": "tabs", "index": 0 }, { "operation": "insert", "name": "GeneralInfoTab2", "values": { "caption": { "bindTo": "Resources.Strings.GeneralInfoTab2Caption" }, "visible":true, "items": [] }, "parentName": "Tabs", "propertyName": "tabs", "index": 1 }, { "operation": "insert", "name": "SectionCaptionCustomerContainer", "propertyName": "items", "parentName": "SeparateModeActionButtonsLeftContainer", "values": { "itemType": Terrasoft.ViewItemType.GRID_LAYOUT, "items": [] } }, { "operation": "insert", "name": "SectionCaptionLabel", "parentName": "SectionCaptionCustomerContainer", "propertyName": "items", "values": { "itemType": Terrasoft.ViewItemType.LABEL, "caption": {"bindTo": "Resources.Strings.SectionLabelCaption"}, "classes": { "labelClass": ["content__title"] }, "layout": { "column": 0, "row": 0, "colSpan": 24, "rowSpan": 1 }, } }, { "operation": "insert", "parentName": "SectionCaptionCustomerContainer", "name": "PortalSearchText", "propertyName": "items", "values": { "bindTo": "SearchText", "contentType": this.Terrasoft.ContentType.SHORT_TEXT, "caption": { "bindTo": "Resources.Strings.ITXSearchTextPlaceholder" }, "labelConfig": { "visible": false }, "layout": { "column": 0, "row": 2, "colSpan": 10, "rowSpan": 1 }, "controlConfig": { "placeholder": { "bindTo": "Resources.Strings.ITXSearchTextPlaceholder" }, }, hasClearIcon: true, clearIconClasses: ["clear-button-style"], "cleariconclick": "$clearSearch", } }, { "operation": "insert", "name": "GetOrgButton", "values": { "id": "GetOrgButton", "itemType": 5, "style": "transparent", "classes": { "wrapperClass": [ "get-service-button" ] }, "imageConfig": { "bindTo": "Resources.Images.FindButtonImage" }, "visible": true, "selectors": { "wrapEl": "#GetOrgButton" }, "enabled": true, "layout": { "colSpan": 0, "rowSpan": 1, "column": 10, "row": 2, } }, "parentName": "SectionCaptionCustomerContainer", "propertyName": "items", "index": 3 }, {"operation": "insert", "name": "GridDataContainer", "parentName": "DataGrid", "propertyName": "items", "values": { "itemType": Terrasoft.ViewItemType.CONTAINER, //"className": "Terrasoft.AlignableContainer", "classes": {"wrappClass": ["tile-border"]}, "visible": true, "items": [] }, "index": 0 }, {"operation": "insert", "name": "GeneralTabTile", "parentName": "GridDataContainer", "propertyName": "items", "values": { "itemType": 5, "imageConfig": { "bindTo": "Resources.Images.ContactButtonImage" }, "visible": true, "caption": {bindTo: "Resources.Strings.TileLabelCaption"}, "enabled": true, "layout": { "colSpan": 1, "rowSpan": 1, "column": 10, "row": 2, }, "items": [] }, "index": 0 }, ]/**SCHEMA_DIFF*/, methods: { getTabsContainerVisible: function() { return !(this.get("TabsCollection").isEmpty()); },
Is there any way to add a border to the "GridDataContainer". The CSS style still not working?
Any help is appreciated.
Thank you.
Like
Hello,
If the task is to move the "Contact section" element to the "General" tab, for example, then you need to specify the GeneralInfoTab element as a parent element for the SectionCaptionCustomerContainer. This will automatically move the "Contact section" to the "General" tab.
Best regards,
Oscar
Hello Oscar,
Thank you for your response.
I added the GeneralInfoTab element as a parent element for the SectionCaptionCustomerContainer and even for the GridDataContainer but it didn't work in both cases.
Do you have any other recommendations please ?
Best regards,
Mouna.
Mouna RACHIDI,
Hi,
I've used your code locally and was able to move the GridDataContainer by specifying the GeneralInfoTab as a parent for the below element:
{ "operation": "insert", "name": "GridDataContainer", "parentName": "GeneralInfoTab", "propertyName": "items", "values": { "itemType": Terrasoft.ViewItemType.CONTAINER, //"className": "Terrasoft.AlignableContainer", "classes": {"wrappClass": ["tile-border"]}, "visible": true, "items": [] }, "index": 0 },
As a result the GeneralTabTile element was also moved to the General tab since its parent (GridDataContainer) was moved to the GeneralInfoTab.
Best regards,
Oscar
