How to detect Send Email element errors

I have a business process which reads emails to send from a custom entity and sends them using the "Send Email" process element.

After that I need to check if the email was sent.

If an issue occurred I need to update the status in my custom entity to "Error".

I could not find a way to detect if an error occurred while sending a mail.

I already read about "Ignore errors on sending" checkbox here but it does not respond to my needs.

I also tried to use [#MySendEmailProcessElement.Activity completed#] but it is always false.

Can you suggest me another way to check if the email was sent?

Like 0

Like

2 comments

Hello.

Thank you for your question.

To determine whether an email was successfully sent in your business process, you can utilize the following two columns from the Activity object:

  1. ErrorOnSend – contains the error message if sending failed.
  2. SendDate – stores the timestamp when the email was successfully sent.

You can use the following logic:

  • If ErrorOnSend is empty and SendDate is populated → the email was sent successfully.
  • If ErrorOnSend is populated and SendDate is empty → the email failed to send.
  • If both ErrorOnSend and SendDate are empty → the email is likely pending or not processed yet.

Based on this, you can use a conditional flow in your business process to update the status in your custom entity accordingly.

Best regards,
Antonii.

Antonii Viazovskyi,

Hi, which filter do I need to apply to the Activity object to select the email I've just sent?

I added the Read Activity step after the Send Email:

myProcess

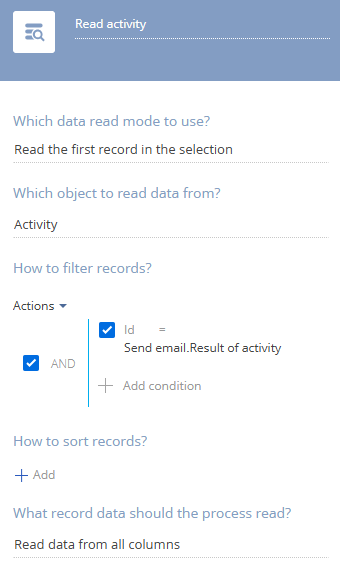

Is it correct to read it using the following filter?

read activity filter

Anyway I cannot see ErrorOnSend and SendDate fields in the Activity object. Am I looking in the correct object?
