Getting GetModuleInfo is not defined in CardModuleV2

Hi,



I wanted to have a button on account page that can open a modal with iframe.



Button was done.

Code for modal was done as well.



I created the following.



(Module)

Ext.define("Terrasoft.controls.UsrIntegrateERPIframeControl", {
    extend: "Terrasoft.Component",
    alternateClassName: "Terrasoft.UsrIntegrateERPIframeControl",
    tpl: [
        '<iframe id="{id}" src="{src}" class="{wrapClass}"></iframe>'
    ],
    id: null,
    src: "https://academy.terrasoft.ru/",
    wrapClass: ["usr-iframe"],
    setIframeSrc: function(value) {
        value = value || "";
        if (this.src !== value) {
            this.src = value;
            this.safeRerender();
        }
    },
    init: function() {
        this.callParent(arguments);
        var selectors = this.selectors = this.selectors || {};
        selectors.wrapEl = selectors.wrapEl || "#" + this.id;
    },
    LoadPageBySrc: function() {
        var iframe = this.getWrapEl();
        iframe.dom.src = this.src;
    },
    onAfterRender: function() {
        this.callParent(arguments);
        this.LoadPageBySrc();
    },
    onAfterReRender: function() {
        this.callParent(arguments);
        this.LoadPageBySrc();
    },
    getBindConfig: function() {
        var bindConfig = this.callParent(arguments);
        return Ext.apply(bindConfig, {
            src: {
                changeMethod: "setIframeSrc"
            }
        });
    },
    getTplData: function() {
        var tplData = this.callParent(arguments);
        return Ext.apply(tplData, {
            src: this.src,
            wrapClass: this.wrapClass
        });
    }
});



(Page View Model)

define("UsrERPModalPage", ["UsrIntegrateERPIframeControl", "css!UsrIntegrateERPIframeControl"], function() {
    return {
        attributes: {
            "TestText": {
                dataValueType: Terrasoft.DataValueType.TEXT,
                type: Terrasoft.ViewModelColumnType.VIRTUAL_COLUMN
            }
        },
        messages: {
        },
        methods: {
            init: function(callback, scope) {
                this.callParent(arguments);
            },
            getHeader: function() {
                return this.get("Resources.Strings.PageCaption");
            },
            onRender: function() {
                this.callParent(arguments);
                var moduleInfo = this.get("moduleInfo");
                var boxSizes = moduleInfo.modalBoxSize;
                var width = boxSizes.width;
                var height = boxSizes.height;
                this.updateSize(width, height);
            }
        },
        //Insert already existed Iframe
        diff: [
            {
                "operation": "insert",
                "parentName": "CardContentContainer",
                "propertyName": "items",
                "name": "UsrERPModalPage",
                "values": {
                    "generator": function() {
                        return {
                            "className": "Terrasoft.UsrIntegrateERPIframeControl"
                        };
                    }
                }
            },
            {
                "operation": "insert",
                "name": "MyContainer",
                "propertyName": "items",
                "values": {
                    "itemType": Terrasoft.ViewItemType.CONTAINER,
                    "items": []
                }
            },
            {
                "operation": "insert",
                "parentName": "MyContainer",
                "propertyName": "items",
                "name": "MyGridContainer",
                "values": {
                    "itemType": Terrasoft.ViewItemType.GRID_LAYOUT,
                    "items": []
                }
            },
            {
                "operation": "insert",
                "parentName": "MyGridContainer",
                "propertyName": "items",
                "name": "TestText",
                "values": {
                    "bindTo": "TestText",
                    "caption": "Test text",
                    "layout": {"column": 0, "row": 0, "colSpan": 10}
                }
            }
        ]
    };
});



(Replacing View Model )

define("AccountPageV2", ["AccountPageV2Resources", "MaskHelper"], function(MaskHelper) {
  return {
    entitySchemaName: "Account",
    methods: {
      subscribeSandboxEvents: function() {
        this.callParent(arguments);
        this.sandbox.subscribe("GetModuleInfo", this.getGenerateQouteModalBoxConfig, this,
                               [this.getGenerateQouteModalBoxId()]);

      },
      getGenerateQouteModalBoxConfig: function() {
        return {
          "schemaName": "UsrERPModalPage",
          "modalBoxSize": {
            "width": "680px",
            "height": "400px"
          }
        };
      },
      getGenerateQouteModalBoxId: function() {
        return this.sandbox.id + "_GenerateQouteModalBox";
      },
      onGenerateQouteButtonClick: function() {
        this.sandbox.loadModule("ModalBoxSchemaModule", {
          id: this.getGenerateQouteModalBoxId()
        });
      }
    },
    diff: [   // Adding the button.
      {
        "operation": "insert",
        "parentName": "LeftContainer",
        "propertyName": "items",
        "name": "GenerateQouteSectionButton",
        "values": {
          itemType: Terrasoft.ViewItemType.BUTTON,
          caption: { bindTo: "Resources.Strings.OpenERPGenerateQouteButtonCaption" },
          click: { bindTo: "onGenerateQouteButtonClick" },
          style: Terrasoft.controls.ButtonEnums.style.BLUE
        }
      },
    ]
  };
});

Then I compiled (my package) but I got this error.

{ message: "Message GetModuleInfo is not defined in CardModuleV2 (SectionModuleV2_AccountSectionV2_CardModuleV2) module" }



Then I log-out, flush Redis, login again, compile all but still received the same error.



References:

https://community.creatio.com/articles/add-iframe-modalbox

https://community.creatio.com/questions/open-iframe-floating-page



Best Regards,

Solem

Like 0

Like

1 comments
Best reply

Hi Solem,



In the AccountPageV2 schema you do also need to create several messages were not mentioned in the original community post https://community.creatio.com/articles/add-iframe-modalbox since Excel report builder marketplace app was chosen as a page for an example where I think these messages are declared:



{
				"GetMasterEntitySchema": {
                        direction: Terrasoft.MessageDirectionType.SUBSCRIBE,
                        mode: Terrasoft.MessageMode.PTP
                                    },
     			 "UsrUploadFileClick": {
						direction: Terrasoft.MessageDirectionType.SUBSCRIBE,
                        mode: Terrasoft.MessageMode.PTP
                 },
          		"GetModuleInfo": {
                         direction: Terrasoft.MessageDirectionType.SUBSCRIBE,
                         mode: Terrasoft.MessageMode.PTP
                                    }

      },

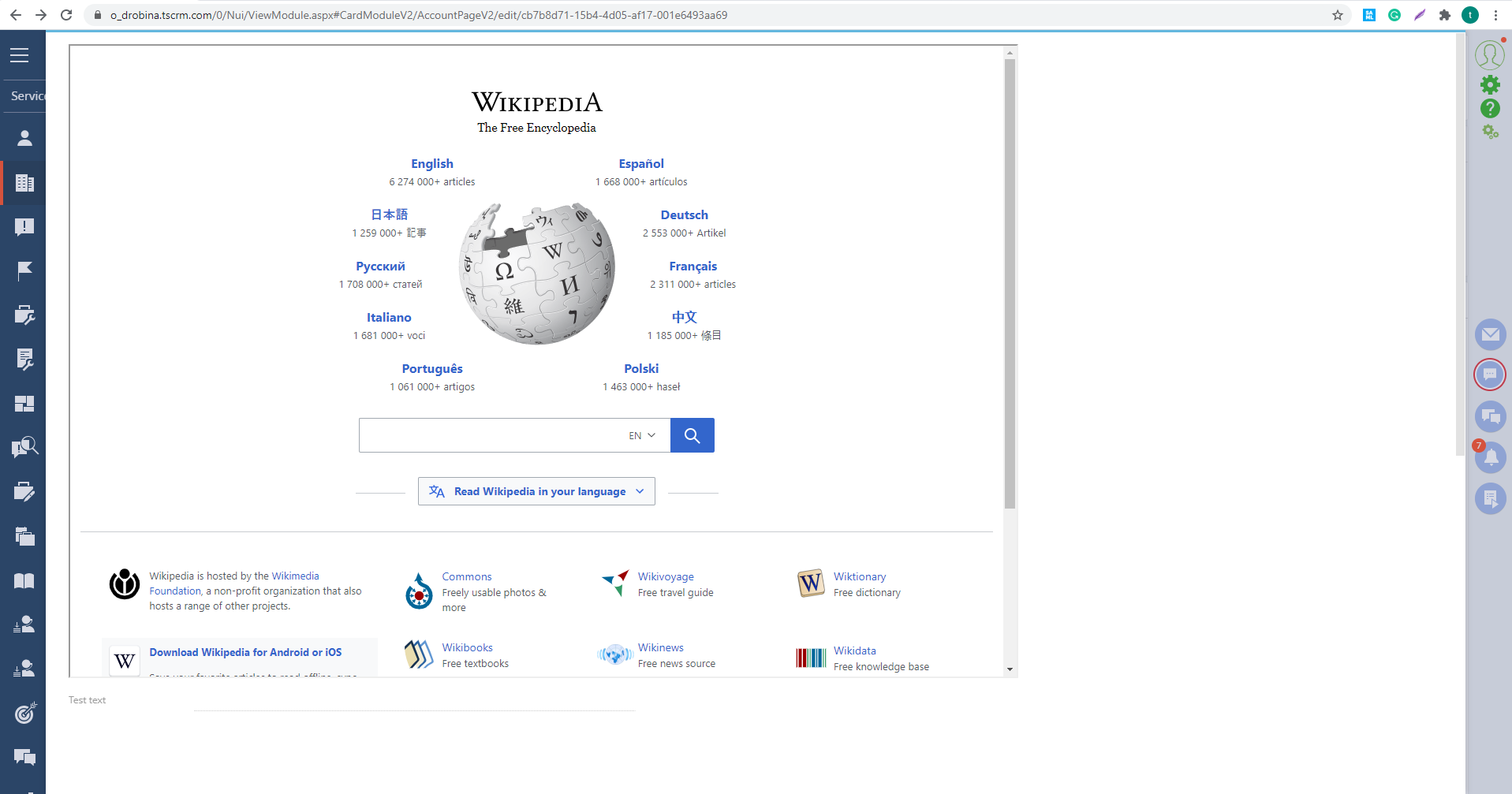

As a result the button started to display the IFrame as needed:

Best regards,

Oscar

Hi Solem,



In the AccountPageV2 schema you do also need to create several messages were not mentioned in the original community post https://community.creatio.com/articles/add-iframe-modalbox since Excel report builder marketplace app was chosen as a page for an example where I think these messages are declared:



{
				"GetMasterEntitySchema": {
                        direction: Terrasoft.MessageDirectionType.SUBSCRIBE,
                        mode: Terrasoft.MessageMode.PTP
                                    },
     			 "UsrUploadFileClick": {
						direction: Terrasoft.MessageDirectionType.SUBSCRIBE,
                        mode: Terrasoft.MessageMode.PTP
                 },
          		"GetModuleInfo": {
                         direction: Terrasoft.MessageDirectionType.SUBSCRIBE,
                         mode: Terrasoft.MessageMode.PTP
                                    }

      },

As a result the button started to display the IFrame as needed:

Best regards,

Oscar
