Hello,

I'm experiencing an unusual issue with the Creatio mobile app.

When I log in using an employee account, the application opens with the Freedom UI home page as expected.

However, when I log in using an external account, the starting page is displayed in the Classic UI. Interestingly, when I navigate to modules, the Cases module is still displayed in Freedom UI.

I would like both views to use Freedom UI.

Could you help me with fixing that behavior?

088baee1-fd0a-42d4-b8a3-35dc62113b7d 1.jpegEmployee view of home page

85f6d6a8-b3d0-478f-94e0-6fcbc320ae1e 1.jpeg

External view of home page


Otwórz zdjęcie

External view of "Case" module



Like 0

Like

0 comments
Show all comments
How_to_Add_a_Legend_to_a_Doughnut_Chart_in_Creatio_Freedom_UI_Using_JavaScript?
Studio_Creatio_enterprise_edition
8.0

How to Add a Legend to a Doughnut Chart in Creatio Freedom UI Using JavaScript?

Hi Creatio Community,

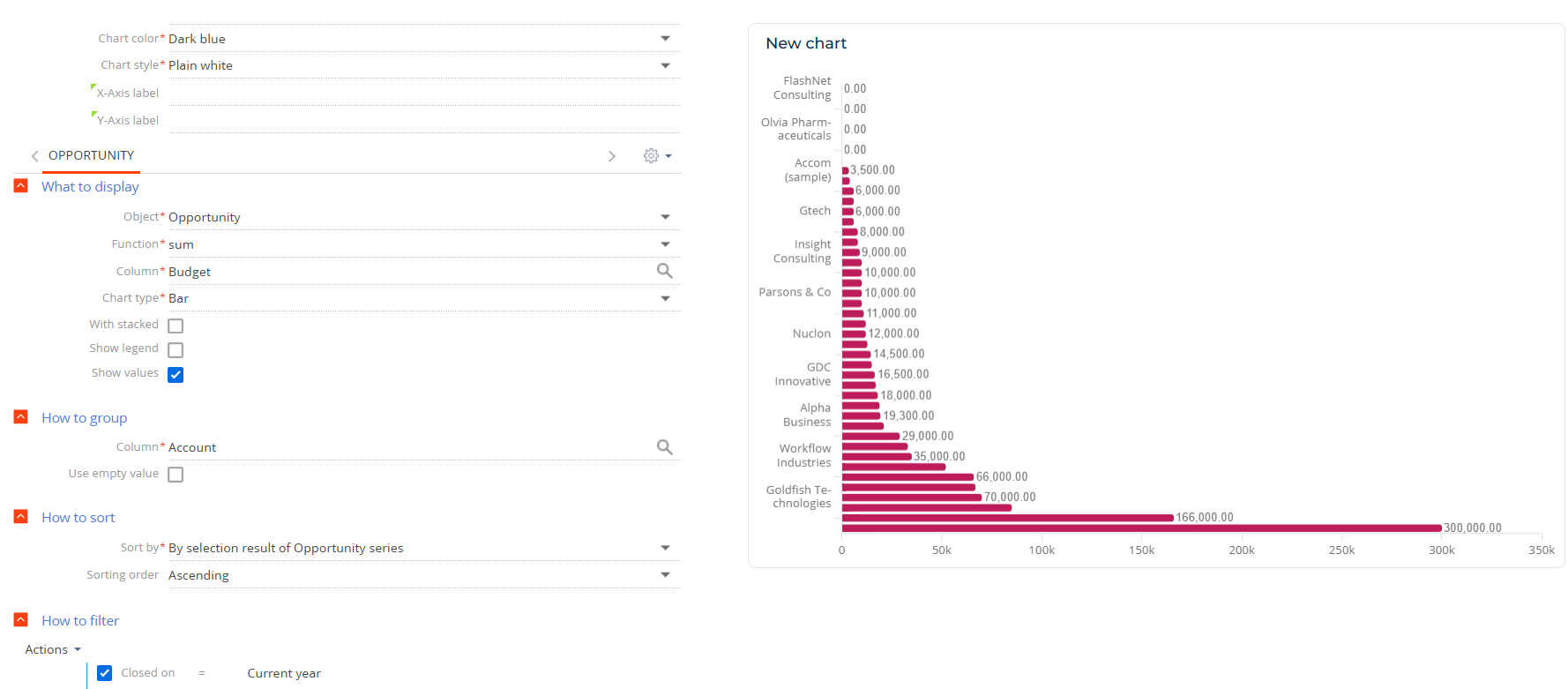

I'm working on a doughnut chart in Creatio Freedom UI and would like to display a legend below the chart. However, the chart configuration available in the Freedom UI designer does not provide an option to enable the legend for a doughnut chart.

I would like to explore whether this can be achieved through a client-side JavaScript handler without modifying the underlying chart configuration or affecting the chart's existing functionality.

  • Chart element: HTML inside the ts-chart component
  • Requirement: Display a custom legend below the doughnut chart, showing each series' actual color and label.

Questions:

  1. Is there a supported way to enable or configure a legend for a doughnut chart in Creatio Freedom UI?
  2. If the designer does not support this option, can a custom legend be added using a Freedom UI client-side JavaScript handler?
  3. How can we access the chart's actual labels, dataset values, and colors from the ts-chart component or its underlying chart configuration?
  4. Is there a recommended or supported API for accessing the chart instance without relying on undocumented internal properties?

My preference is to display the legend below the doughnut chart, using the existing chart labels and colors, while keeping the implementation scoped to this widget and preserving its existing interactions.

Any guidance, examples, or recommended approaches would be appreciated.

Thank you!

Like 0

Like

1 comments

Hi,

Thank you for the detailed question. Here are answers to each point, followed by the approach we recommend.

1. Is there a supported way to enable a legend for a doughnut chart?

Unfortunately, no. This is a current platform limitation, not a setting the Freedom UI Designer is missing.

  • The Show legend option is available only for Spline, Line, Bar, Area, Column and Scatter charts. Pie and doughnut charts don’t support a legend.
  • If you add a legend setting to the doughnut series by editing the page schema, the page saves it, but no legend appears. The chart turns off the legend for pie, doughnut, funnel and waterfall charts.
  • You can’t set slice colors either. The series color property is ignored for doughnut charts, and slices take their colors from the built-in palette.

What doughnut charts do show is a “label – NN%” data label next to each slice by default. Long labels wrap. Labels that would overlap are hidden, so very small slices may have no label. The dataLabel.display setting has no effect on doughnut charts.

2. Can a custom legend be added with client-side code?

Yes, as a separate element placed directly under the chart. It can’t be drawn inside the chart, because the chart is a single <canvas> with no extension point for that. This approach leaves the chart widget unchanged, so drilldown, tooltips, data labels and keyboard navigation keep working.

3. How can I get the chart’s labels, values and colors?

Labels and values. When a chart series gets its data through the standard data source (data.providing), the platform creates a page attribute named <ChartElementName>_SeriesData. For example, a chart element named MyDoughnut gets MyDoughnut_SeriesData. The attribute holds one array per series, and each item looks like this:

{
  grouping:    { value, displayValue }, // displayValue is the slice label
  aggregation: { value }                // value is the slice value
}



Please keep in mind:

  • The platform generates this attribute and it isn’t part of the documented API, so it may change in future versions.
  • It’s created only when the chart element has no explicit seriesData binding.
  • It’s filled asynchronously, so await it. It holds empty arrays until the data has loaded.

Colors. No API returns the colors the chart draws. Doughnut slices take colors from the built-in palette by slice index, starting again after the last color:

#0058EF, #F9307F, #08857E, #F86700, #4F43C2, #20A959, #009DE3, #FF4013, #B87CCF, #22AC14,
#247EE5, #FF602E, #9641A9, #0B6A32, #E00022, #1566B9, #BE1B5A, #7848EE, #0D2E4E



A legend that uses this list matches the chart today. The palette is an internal detail, though, so check the legend after upgrades.

Order. If the chart has a sort order (seriesOrder), sort your legend items the same way before assigning colors. Otherwise the colors won’t match the slices.

4. Is there a supported API to get the chart instance?

No. @creatio-devkit/common has no API that returns a page element’s component or the underlying Chart.js instance. The chart widget exposes only its configuration inputs, and clicks on the chart are handled inside the widget without reaching the page.

Reading the Chart.js instance from the component or the DOM depends on internal details, and we don’t recommend it. Chart.getChart(canvas) usually doesn’t work from custom code anyway. Custom code loads its own copy of Chart.js, which doesn’t know about the chart the widget created.

Recommended approach

Add a legend element under the chart and leave the chart widget as it is. There are three options, from simplest to most flexible.

Option 1. Text legend with a label (no custom component)

Add a crt.Label under the chart and fill it from a handler:

viewConfigDiff: /**SCHEMA_VIEW_CONFIG_DIFF*/[
  {
    "operation": "insert",
    "name": "MyDoughnutLegend",
    "values": {
      "type": "crt.Label",
      "caption": "$MyDoughnutLegendText",
      "labelType": "body",
      "visible": true
    },
    "parentName": "<container that holds MyDoughnut>",
    "propertyName": "items",
    "index": 1
  }
]/**SCHEMA_VIEW_CONFIG_DIFF*/,
viewModelConfigDiff: /**SCHEMA_VIEW_MODEL_CONFIG_DIFF*/[
  {
    "operation": "merge",
    "path": ["attributes"],
    "values": {
      "MyDoughnutLegendText": {}
    }
  }
]/**SCHEMA_VIEW_MODEL_CONFIG_DIFF*/,
handlers: /**SCHEMA_HANDLERS*/[
  {
    request: "crt.HandleViewModelAttributeChangeRequest",
    handler: async (request, next) => {
      if (request.attributeName === "MyDoughnut_SeriesData") {
        const seriesData = await request.$context.MyDoughnut_SeriesData;
        const items = seriesData?.[0] ?? [];
        request.$context.MyDoughnutLegendText = items
          .map(item => `${item.grouping.displayValue}: ${item.aggregation.value}`)
          .join("  |  ");
      }
      return next?.handle(request);
    }
  }
]/**SCHEMA_HANDLERS*/,



This option can’t show colored markers. Please check on your Creatio version that the change request fires for the generated attribute.

Option 2. Legend with colored markers (custom view element)

Create a small Angular component in a remote module (see “Develop a custom UI component using remote module” on Creatio Academy):

import { Component, Input, ViewEncapsulation } from '@angular/core';
import { CrtInput, CrtViewElement } from '@creatio-devkit/common';

const PALETTE = [
  '#0058EF', '#F9307F', '#08857E', '#F86700', '#4F43C2', '#20A959', '#009DE3',
  '#FF4013', '#B87CCF', '#22AC14', '#247EE5', '#FF602E', '#9641A9', '#0B6A32',
  '#E00022', '#1566B9', '#BE1B5A', '#7848EE', '#0D2E4E'
];

interface LegendItem {
  label: string;
  value: unknown;
}

@Component({
  selector: 'usr-chart-legend',
  template: `
    <div class="usr-legend">
      <span *ngFor="let item of legend; let i = index" class="usr-legend-item">
        <i [style.background]="color(i)"></i>{{ item.label }} ({{ item.value }})
      </span>
    </div>`,
  styles: [`
    .usr-legend { display: flex; flex-wrap: wrap; gap: 8px 16px; justify-content: center; }
    .usr-legend-item { display: inline-flex; align-items: center; }
    .usr-legend-item i { width: 10px; height: 10px; border-radius: 50%; margin-right: 6px; }
  `],
  encapsulation: ViewEncapsulation.Emulated
})
@CrtViewElement({
  selector: 'usr-chart-legend',
  type: 'usr.ChartLegend'
})
export class UsrChartLegendComponent {
  public legend: LegendItem[] = [];

  @Input()
  @CrtInput()
  public set items(value: any) {
    Promise.resolve(value).then(data => {
      this.legend = (data?.[0] ?? []).map((item: any) => ({
        label: item.grouping?.displayValue,
        value: item.aggregation?.value
      }));
    });
  }

  public color(index: number): string {
    return PALETTE[index % PALETTE.length];
  }
}



Register the component in the remote module the standard way. Then place it under the chart on the Freedom UI page:

{
  "operation": "insert",
  "name": "MyDoughnutLegend",
  "values": {
    "type": "usr.ChartLegend",
    "items": "$MyDoughnut_SeriesData"
  },
  "parentName": "<container that holds MyDoughnut>",
  "propertyName": "items",
  "index": 1
}



Option 3. Load the legend data yourself (fully supported API)

If you don’t want to depend on the generated _SeriesData attribute, load the same aggregated data with sdk.Model. Pass the result to the label from Option 1 or the component from Option 2:

const model = await sdk.Model.create("Account");
const rows = await model.load({
  attributes: [
    { name: "Industry", path: "Industry" },
    {
      name: "Count",
      path: "Id",
      type: "function",
      functionConfig: {
        type: "aggregation",
        aggregation: "Count",
        aggregationEval: "all"
      }
    }
  ],
  parameters: [
    /* the same filters the chart uses */
  ]
});



Use the same grouping column, filters and sort order as the chart so the legend rows match the slices.

Limitations

  • A custom legend doesn’t react to the chart’s interactive state, such as a hovered or drilled-down slice.
  • The color palette and the <ChartElementName>_SeriesData attribute are internal details that may change in future versions. Please check the legend after upgrades.

Registering the idea

We agree that a built-in legend for pie and doughnut charts would be useful, and adding one needs a platform change. Please send this idea to support@creatio.com so it’s registered with the R&D team and considered for the product roadmap. Including your use case, such as “legend below the doughnut chart with series colors and labels”, will help us prioritize it.

Show all comments
ESQ_Transaction

Hello Community,

I have a question if its possible to have database transaction scope using ESQ instead of direct SQL. From the documentation it is suggested that we as Devs should use ESQ most of the times because of validation etc.

I have a case where I have to modify two entities and for that I need two separate ESQ (maybe there is a better way). My goal is to wrap that in a single transaction so that all changes are made or none (to avoid inconsistency).

Is this code below valid for this case? Is going to work?

```
using System;
using Terrasoft.Core.DB;
using Terrasoft.Core.Entities;

using (DBExecutor dbExecutor = UserConnection.EnsureDBConnection())
{
dbExecutor.StartTransaction();
try
{
var schemaManager = UserConnection.EntitySchemaManager;

// Contact
Entity contact = schemaManager.GetInstanceByName("Contact").CreateEntity(UserConnection);
contact.SetDefColumnValues();
contact.SetColumnValue("Name", "Jane Doe");
contact.Save();

// Case, linked to the new contact
Entity supportCase = schemaManager.GetInstanceByName("Case").CreateEntity(UserConnection);
supportCase.SetDefColumnValues();
supportCase.SetColumnValue("Subject", "Test case");
supportCase.SetColumnValue("ContactId", contact.PrimaryColumnValue);
supportCase.Save();

// ...more entities as needed

dbExecutor.CommitTransaction();
}
catch
{
dbExecutor.RollbackTransaction();
throw;
}
}
```

Thanks for all answers.

Like 1

Like

2 comments
Best reply

Hi,

Yes, this pattern works, and Creatio’s own core code uses it (sync, process completion, AppManager). Using Entity here is correct. ESQ is mainly for reading data; Entity, or Insert/Update queries, are the right tools for writing.

Why it works

  • UserConnection.EnsureDBConnection() doesn’t open a new connection each time. It returns the DBExecutor cached on that UserConnection and adds one to a reference count.
  • Entity.Save() calls UserConnection.EnsureDBConnection() internally, so it gets the same executor. Every command that executor runs is enlisted in its open transaction.
  • That covers more than the main INSERT/UPDATE: default record rights, owner rights, localization rows, change tracking, and DB writes made by synchronous event handlers on the same UserConnection.
  • Save() doesn’t start its own transaction on insert or update. Delete() does, but transactions nest with a depth counter. An inner Commit or Rollback does nothing, so only your outermost call decides.
  • If the using block ends without a commit (for example, an unexpected exception), Dispose() rolls the transaction back. Your explicit RollbackTransaction() is still good practice.

Things to watch for

  1. Save() can return false without throwing. This happens when an OnSaving, OnInserting or OnUpdating handler cancels the save. Your try block would then commit the other entities. Check the return value.
  2. Use the same UserConnection for everything. Work done through SystemUserConnection or another connection runs on a different DB connection. It is outside your transaction, and it can block on rows you have locked.
  3. Some side effects are not rolled back. They are sent during Save(), not after commit:

    • async entity event operations (when async execution of entity events is enabled)
    • business processes started by a record signal and run in background mode
    • websocket and cache notifications
    • file content kept in external file storage

    Background work may run before your commit, so it won’t see the new record yet. It may also run after a rollback, against a record that no longer exists.

  4. Keep the work synchronous. Don’t use async/await or extra threads inside the block.
  5. Don’t reuse entity objects after a rollback. They are already marked as saved in memory, so build new instances.
  6. If you’re inside someone else’s transaction, rethrow the exception. Your inner Rollback does nothing in that case. If you swallow the exception, the outer commit still saves everything.

Suggested version

using (DBExecutor dbExecutor = UserConnection.EnsureDBConnection())
{
    dbExecutor.StartTransaction();
    try
    {
        var schemaManager = UserConnection.EntitySchemaManager;

        Entity contact = schemaManager.GetInstanceByName("Contact").CreateEntity(UserConnection);
        contact.SetDefColumnValues();
        contact.SetColumnValue("Name", "Jane Doe");
        if (!contact.Save())
            throw new InvalidOperationException("Contact was not saved.");

        Entity supportCase = schemaManager.GetInstanceByName("Case").CreateEntity(UserConnection);
        supportCase.SetDefColumnValues();
        supportCase.SetColumnValue("Subject", "Test case");
        supportCase.SetColumnValue("ContactId", contact.PrimaryColumnValue);
        if (!supportCase.Save())
            throw new InvalidOperationException("Case was not saved.");

        dbExecutor.CommitTransaction();
    }
    catch
    {
        dbExecutor.RollbackTransaction();
        throw;
    }
}

Hi,

Yes, this pattern works, and Creatio’s own core code uses it (sync, process completion, AppManager). Using Entity here is correct. ESQ is mainly for reading data; Entity, or Insert/Update queries, are the right tools for writing.

Why it works

  • UserConnection.EnsureDBConnection() doesn’t open a new connection each time. It returns the DBExecutor cached on that UserConnection and adds one to a reference count.
  • Entity.Save() calls UserConnection.EnsureDBConnection() internally, so it gets the same executor. Every command that executor runs is enlisted in its open transaction.
  • That covers more than the main INSERT/UPDATE: default record rights, owner rights, localization rows, change tracking, and DB writes made by synchronous event handlers on the same UserConnection.
  • Save() doesn’t start its own transaction on insert or update. Delete() does, but transactions nest with a depth counter. An inner Commit or Rollback does nothing, so only your outermost call decides.
  • If the using block ends without a commit (for example, an unexpected exception), Dispose() rolls the transaction back. Your explicit RollbackTransaction() is still good practice.

Things to watch for

  1. Save() can return false without throwing. This happens when an OnSaving, OnInserting or OnUpdating handler cancels the save. Your try block would then commit the other entities. Check the return value.
  2. Use the same UserConnection for everything. Work done through SystemUserConnection or another connection runs on a different DB connection. It is outside your transaction, and it can block on rows you have locked.
  3. Some side effects are not rolled back. They are sent during Save(), not after commit:

    • async entity event operations (when async execution of entity events is enabled)
    • business processes started by a record signal and run in background mode
    • websocket and cache notifications
    • file content kept in external file storage

    Background work may run before your commit, so it won’t see the new record yet. It may also run after a rollback, against a record that no longer exists.

  4. Keep the work synchronous. Don’t use async/await or extra threads inside the block.
  5. Don’t reuse entity objects after a rollback. They are already marked as saved in memory, so build new instances.
  6. If you’re inside someone else’s transaction, rethrow the exception. Your inner Rollback does nothing in that case. If you swallow the exception, the outer commit still saves everything.

Suggested version

using (DBExecutor dbExecutor = UserConnection.EnsureDBConnection())
{
    dbExecutor.StartTransaction();
    try
    {
        var schemaManager = UserConnection.EntitySchemaManager;

        Entity contact = schemaManager.GetInstanceByName("Contact").CreateEntity(UserConnection);
        contact.SetDefColumnValues();
        contact.SetColumnValue("Name", "Jane Doe");
        if (!contact.Save())
            throw new InvalidOperationException("Contact was not saved.");

        Entity supportCase = schemaManager.GetInstanceByName("Case").CreateEntity(UserConnection);
        supportCase.SetDefColumnValues();
        supportCase.SetColumnValue("Subject", "Test case");
        supportCase.SetColumnValue("ContactId", contact.PrimaryColumnValue);
        if (!supportCase.Save())
            throw new InvalidOperationException("Case was not saved.");

        dbExecutor.CommitTransaction();
    }
    catch
    {
        dbExecutor.RollbackTransaction();
        throw;
    }
}

Oleg Drobina,

Thank you so much for this very thorough answer. That helped me a lot and I think its going to help others too.

Show all comments
Studio_Creatio
8.0

Hi,

I want to open specific page via business process. The button was clicked from mobile and it will run the business process.  I checked the execution diagram and it seems worked. However the mobile does nothing and it seems stucked.

Like 0

Like

1 comments

Hi,

Your process is probably fine. What fails is the hand-off at “Open edit page”: the Creatio mobile app most likely never handles the message that tells a client to open the page. So the process sits waiting on that element, which is why the diagram looks right while the phone does nothing.

How to confirm

  1. In the process log, check the “Buka detail halaman…” element. If it shows “in progress” rather than “completed”, the process is waiting for a client that never answers.
  2. Press the same button in the web app as the same user. If the page opens there, the problem is mobile-only.
  3. Optionally, keep a browser tab open as that user and press the button on the phone. If the page pops up in the browser, the phone is just ignoring the message.
  4. Check your Creatio version. Starting a process from a Freedom UI mobile button (crt.RunBusinessProcessRequest) is only supported in Creatio Mobile 8.3.4 and later (Academy handlers reference).

How to fix it: let the process do data only, and do the navigation on the mobile side

  • A (recommended): no process. Bind the button to a mobile custom request handler, built with @creatio/mobile-common and the EnableMobileSDK feature (overview). The handler:

    1. looks up the record by No Prospect;
    2. if it’s found, opens it with crt.UpdateRecordRequest (or crt.OpenPageRequest);
    3. if not, opens a new record with crt.CreateRecordRequest, with No Prospect pre-filled.

    A handler written for the web (a usr.* schema handler) won’t work on mobile.

  • B (8.3.4 and later): keep the process, but only for data. Remove both “Open edit page” elements and keep Read Data / Add Data. Start the process with crt.RunBusinessProcessRequest, then open the record from the mobile side.
  • C (before 8.3.4): start the process from a record change. Have the button set a field, and let a signal-started process do the data work. Navigation still has to happen on the mobile side.

If the web test (step 2) also fails: the process may be running in background mode, from a background or batch connection, or with “Show execution page” turned off. In those cases the server skips sending the message entirely and the symptom looks the same.

Also cancel the runs already stuck on “Open edit page” in the process log so they don’t pile up.

Show all comments
mobile application
adddatasource
Studio_Creatio
8.0

Hi All,

Question please, how can I add data source in Mobile Page?

I googling, and Creatio said it should be in the left top corner, link :
https://academy.creatio.com/guides/mobile/mobile-app-setup/freedom-ui/freedom-ui-mobile-designer

Need advice please, thank you.

Like 0

Like

1 comments

Hi,

Why you don't see the button

  • One data source per page. The guide says "Each mobile page works with a single data source." In your screenshot, the VERIFICATION group in the Components panel is that data source. Its fields appear under Data model attributes (A. Age, A. CIF No, and so on).
  • The button is only for pages that don't have one yet. You get Add data source → New data source (then Name and Description) when you create a mobile page from a template that has no data source. Creatio then creates a new object and connects it to the page. Your form page was created from the existing app, so it was bound to the Verification object automatically.
  • Version. This designer feature needs Creatio 8.3.2 or later. If you're on an older version, the button won't be there at all.

What you can do instead

  1. Add fields to the current data source. In the VERIFICATION group, use the Add new field tiles (Text, Number, Dropdown, …) or drag existing attributes from Data model attributes onto the page.
  2. Show data from another object. Mobile pages share data sources with their desktop Freedom UI pages: "data sources configured for a Freedom UI page are automatically available on the corresponding Freedom UI mobile page." Open the desktop Verification form page in the Freedom UI Designer, add the extra data source there (for example, a list or detail of related records), save it, then reopen the mobile designer.
  3. Use a separate object as the main source. Create a new mobile page from a template. That's where Add data source appears.

Also note that the Academy page recommends the Freedom UI Mobile Designer only for newly created apps, not for adding mobile pages to apps that already existed. If "Mobile Survey" is an older app, that may explain other limitations you run into.

Show all comments
